LF Driver8CL series
B&C
B&C 8CL51
B&C 8CL51 is a 8" 16 ohm LF driver rated at 200W RMS. The validated T/S data includes Fs 83Hz, Qts 0.51, Vas 9.5L, Xmax 6mm, sensitivity 92.1dB, plus 132cm³ Vd and 154 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
16Ω
RMS Power
200W
Sensitivity
92.1dB
94.0dBmanufacturer; using T/S-derived value (1.9dB delta).
EBP
154
Vented alignment
Vd
132cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
free-air SPL240 ptsp3medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v2

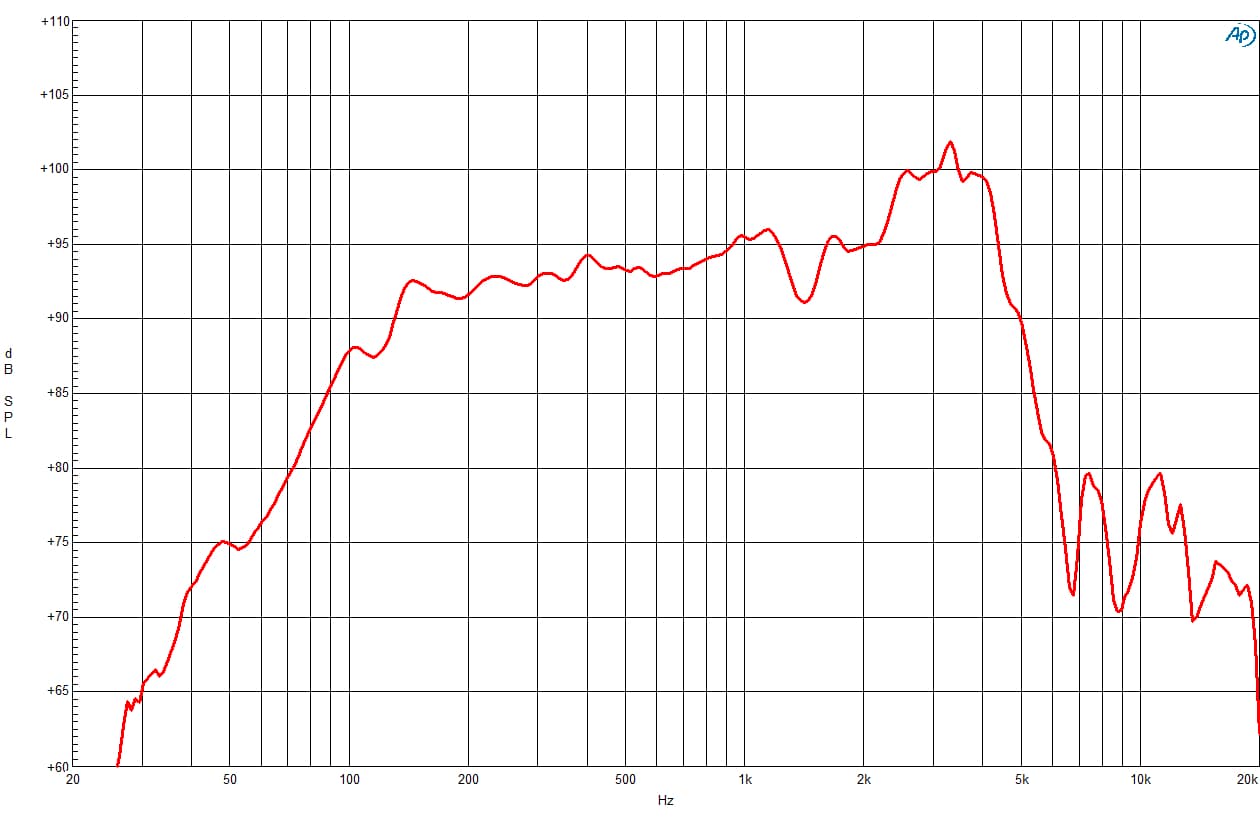

free-air SPL
Frequency response
240 plotted pointsSource file SHA-256 29b811d89e6c…Medium confidence5,838 selected pixels of 5,838 - Trace datasheet-response-trace-poc/v2

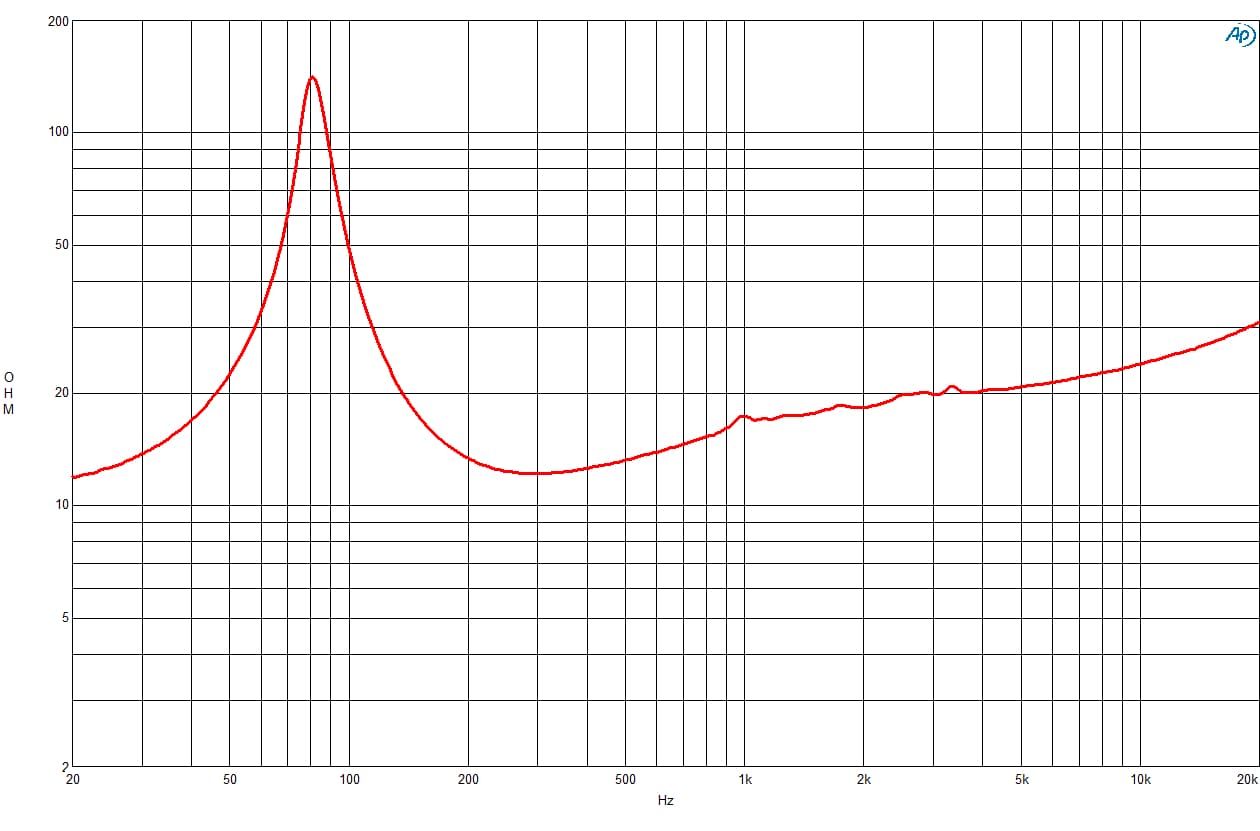

free-air impedance
Impedance response
240 plotted pointsSource file SHA-256 29b811d89e6c…Medium confidence3,830 selected pixels of 3,830

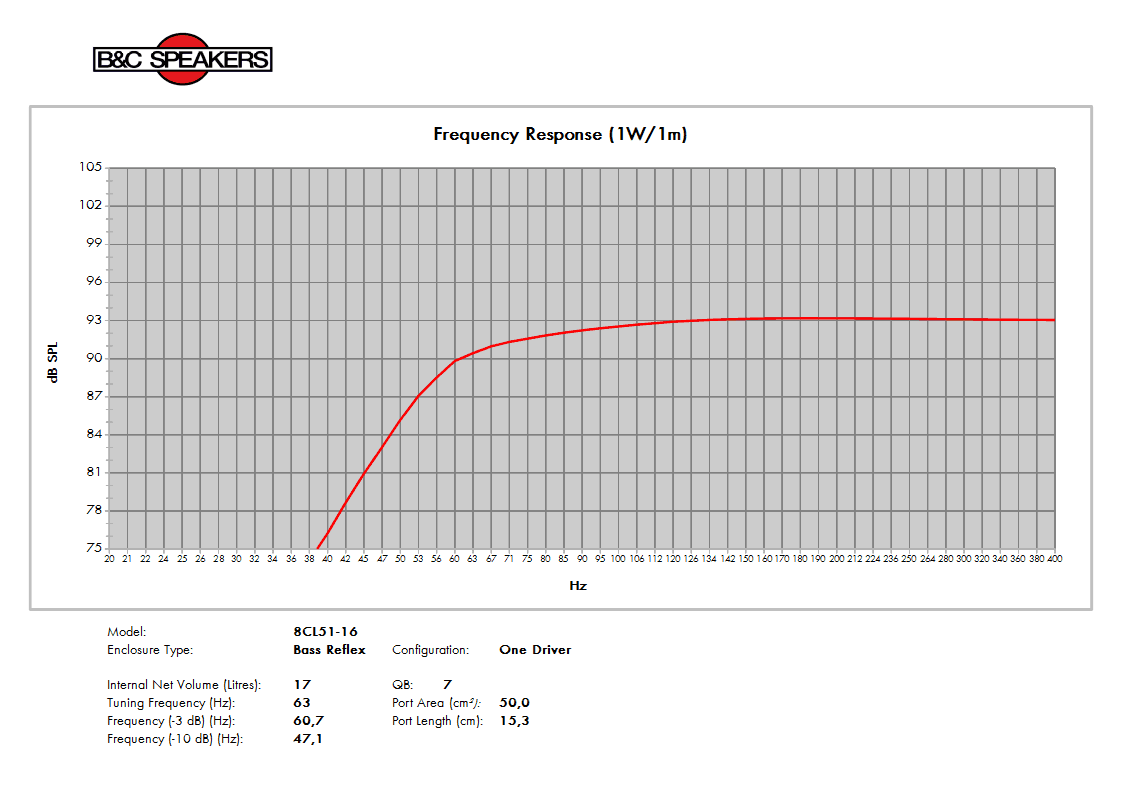

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs83Hz
Qts0.51
Qes0.54
Qms8.9
Vas9.5L
Re10.1Ω
Le0.90mH
BL16.1Tm
Sd220cm²
Mms26g
Xmax6.0mm
SPL92dB
Power200W
Power Nominal200W
Impedance16Ω
Min Impedance12.2Ω
F Low85Hz
F High4000Hz
Voice Coil51mm
Flux Density1.15T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.3kg
Diameter209.0mm
Overall Depth96.0mm
Cutout Diameter186.0mm
Bolt Circle Diameter199.0mm
Additional Manufacturer Specs
Bl16.1 Tm
Fs83 Hz
Le0.9 mH
Re10.1 Ω
Sd220 cm² (34.1 in²)
Ebp154 Hz
Mms26 g
Qes0.54
Qms8.9
Qts0.51
Vas9.5 dm³ (0.34 ft³)
η01 %
ConeRCK008CL5116
Xmax6 mm
Xvar4.5 mm
SpiderSingle
Cone ShapeExponential
Pole DesignStraight Pole
Winding Depth17 mm (0.65 in)
Surround ShapeDouble Roll
Former MaterialGlass Fibre
Magnet MaterialNeodymium Inside Slug
Nominal Diameter200 mm (8 in)
Winding MaterialCopper
Magnetic Gap Depth8 mm (0.31 in)
Recommended Tuning63 Hz
Bolt Circle Diameter199 mm (7.83 in)
Recommended Enclosure17 dm³ (0.6 ft³)
Woofer Cone TreatmentWP Waterproof Front Side
Baffle Cutout Diameter186 mm (7.32 in)
Flange And Gasket Thickness9 mm (0.35 in)
Air Volume Occupied By Driver1.1 dm³ (0.04 ft³)
