Fane SOVEREIGN PRO 8-225 4Ω
4 Ω · 55–5000 Hz
No current price
- Fs
- 62Hz
- Xmax
- 5.5mm
- SPL
- 93dB
- Pe
- 225W
- BL
- 11T·m
- Vd
- 121cm³
- Qts
- 0.38
- Vas
- 22L

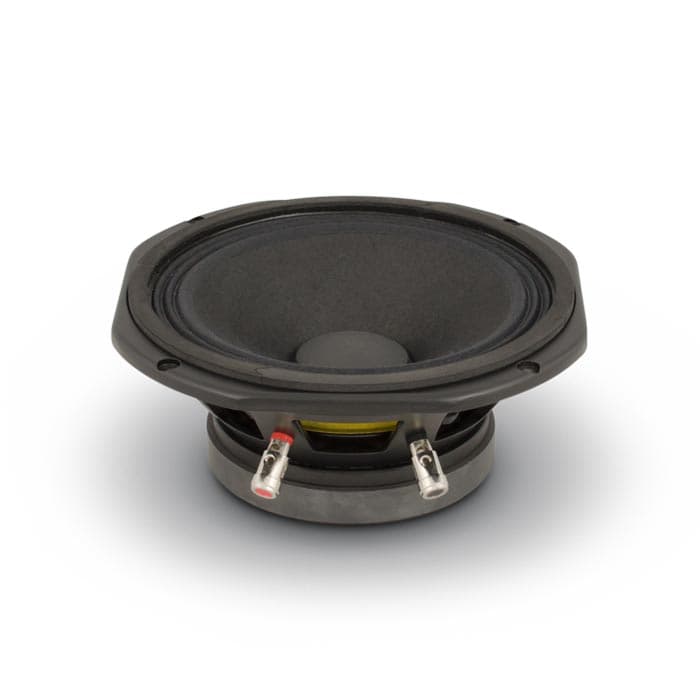

Fane SOVEREIGN PRO 8-225 is an 8-inch 4 ohm LF driver rated at 225 W RMS. The validated T/S data includes Fs 62 Hz, Qts 0.38, Vas 22 L, Xmax 5.5 mm, sensitivity 93 dB, plus 121 cm³ Vd and 148 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 62Hz
- Qts
- 0.38
- Qes
- 0.42
- Qms
- 4.3
- Vas
- 22L
- Re
- 6.1Ω
- Le
- 1.20mH
Motor and cone
- BL
- 11T·m
- Sd
- 220cm²
- Mms
- 21g
- Xmax
- 5.5mm
- Vd †
- 121cm³
Power and response
- Sensitivity †
- 93dB
- Manufacturer sensitivity
- 97dB
- Power
- 225W
- Impedance
- 4Ω
- Range
- 55–5000Hz
- EBP †
- 148 · Leans vented
Size and mounting
- Diameter
- 226mm
- Depth
- 91.4mm
- Weight
- 3.1kg
Other published values
- Cms
- 0.32mm/N
- Power Peak
- 900
- Power Program
- 450
Sensitivity shows 93.0 dB, calculated from the T/S values. Fane publishes 97.0 dB, 4.0 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Fane lists
LF · Primary · 8″
- BL
- 11T·m
- Fs
- 62Hz
- Le
- 1.20mH
- Re
- 6.1Ω
- Sd
- 220cm²
- Cms
- 0.32mm/N
- Mms
- 21g
- Qes
- 0.42
- Qms
- 4.3
- Qts
- 0.38
- SPL
- 93dB
- Vas
- 22L
- Xmax
- 5.5mm
- Power
- 225W
- Impedance
- 4Ω
- Power Peak
- 900
- Sensitivity
- 97dB
- Low limit
- 55Hz
- Power Program
- 450
- Calculated sensitivity †
- 93dB
- High limit
- 5000Hz
- Manufacturer sensitivity
- 97dB
- Weight
- 3.1kg
- Diameter
- 226mm
- Depth
- 91.4mm
