Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespOberton 8CX 8Ω
LF DriverMedia
Auto-advancing
Overview
LF Driver8CX series
Oberton
Oberton 8CX
Oberton 8CX is a 8" 8 ohm LF driver rated at 200W RMS. The validated T/S data includes Fs 76Hz, Qts 0.40, Vas 16.8L, Xmax 5.3mm, sensitivity 94.3dB, plus 106cm³ Vd and 173 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
8Ω
RMS Power
200W
Sensitivity
94.3dB
EBP
173
Vented alignment
Vd
106cm³
T/S Parameters
Valid
Fs76Hz
Qts0.40
Qes0.44
Qms4.3
Vas16.8L
Re5.7Ω
Le0.64mH
BL9.4Tm
Sd202cm²
Mms15g
Xmax5.3mm
SPL94dB
Power200W
Impedance8Ω
F Low70Hz
F High20000Hz
Voice Coil51mm
Flux Density0.91T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

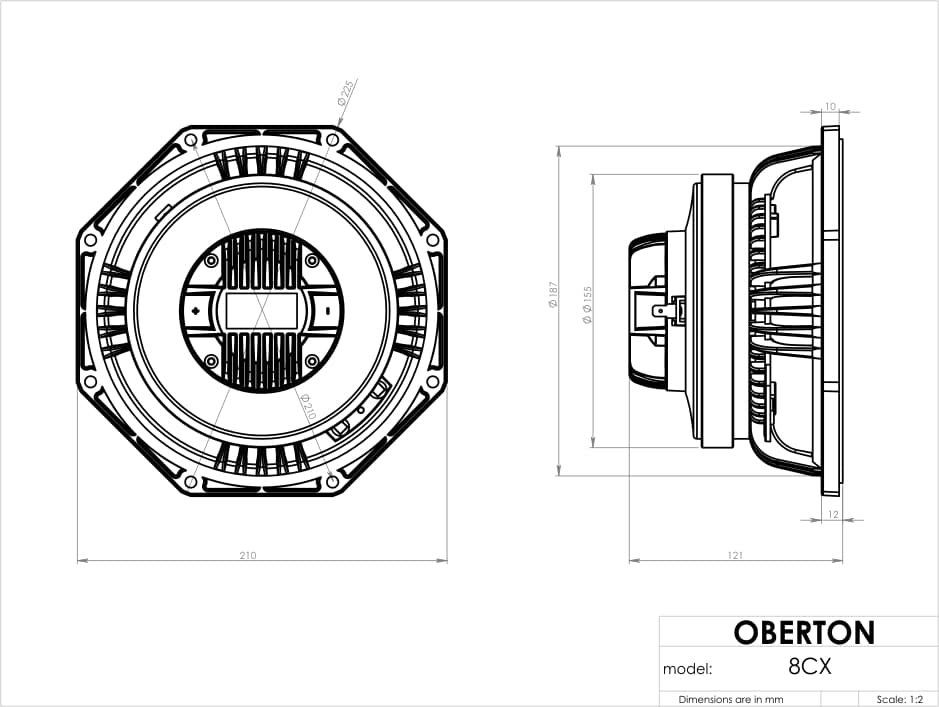

Dimensions & Physical
Weight4.5kg
Diameter225.0mm
Overall Depth121.0mm
Cutout Diameter187.0mm
Bolt Circle Diameter210.0mm
