Overview
LF Driver
PRV Audio
PRV Audio 8MR600X
PRV Audio 8MR600X is a 8" 8 ohm LF driver rated at 300W RMS. The validated T/S data includes Fs 77Hz, Qts 0.40, Vas 20.0L, Xmax 5.3mm, sensitivity 95.3dB, plus 127cm³ Vd and 179 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
8Ω
RMS Power
300W
Sensitivity
95.3dB
98.0dBmanufacturer; using T/S-derived value (2.7dB delta).
EBP
179
Vented alignment
Vd
127cm³
Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs77Hz
Qts0.40
Qes0.43
Qms7.1
Vas20.0L
Re5.7Ω
Le0.49mH
BL10.5Tm
Sd241cm²
Mms17g
Xmax5.3mm
SPL95dB
Power300W
Impedance8Ω
F Low85Hz
F High8500Hz
Xover145Hz
Voice Coil51mm
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight3.2kg
Diameter208.5mm
Overall Depth102.5mm
Cutout Diameter186.5mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
PRV Audio
8MR600X
8"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
90%
Similarity
Oberton
8NCX
8"
Xmax5.3mm0%
Qts0.40%
BL10.1Tm-4%
Vas14.9L-26%
Qes0.44+2%
90%
Similarity
Oberton
8CX
8"
Xmax5.3mm0%
Qts0.40%
BL9.4Tm-11%
Vas16.8L-16%
Qes0.44+2%
88%
Similarity
£51.00
Fane
SOVEREIGN 8-225
8"
Xmax5.5mm+5%
Qts0.38-5%
BL11Tm+4%
Vas22L+10%
Qes0.42-2%
88%
Similarity

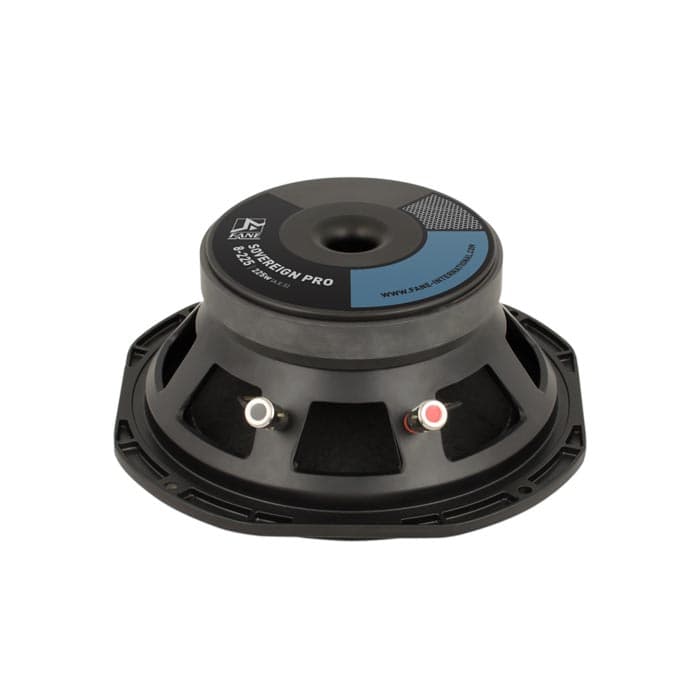

Fane
SOVEREIGN PRO 8-225
8"
Xmax5.5mm+5%
Qts0.38-5%
BL11Tm+4%
Vas22L+10%
Qes0.42-2%
86%
Similarity
£59.70
Celestion
TRUVOX 0820
8"
Xmax5mm-5%
Qts0.39-3%
BL11.5Tm+9%
Vas17.3L-14%
Qes0.42-3%
86%
Similarity
£141.55
Lavoce
CSF082.00K
8"
Xmax5mm-5%
Qts0.40%
BL11Tm+4%
Vas14.8L-26%
Qes0.45+5%
83%
Similarity

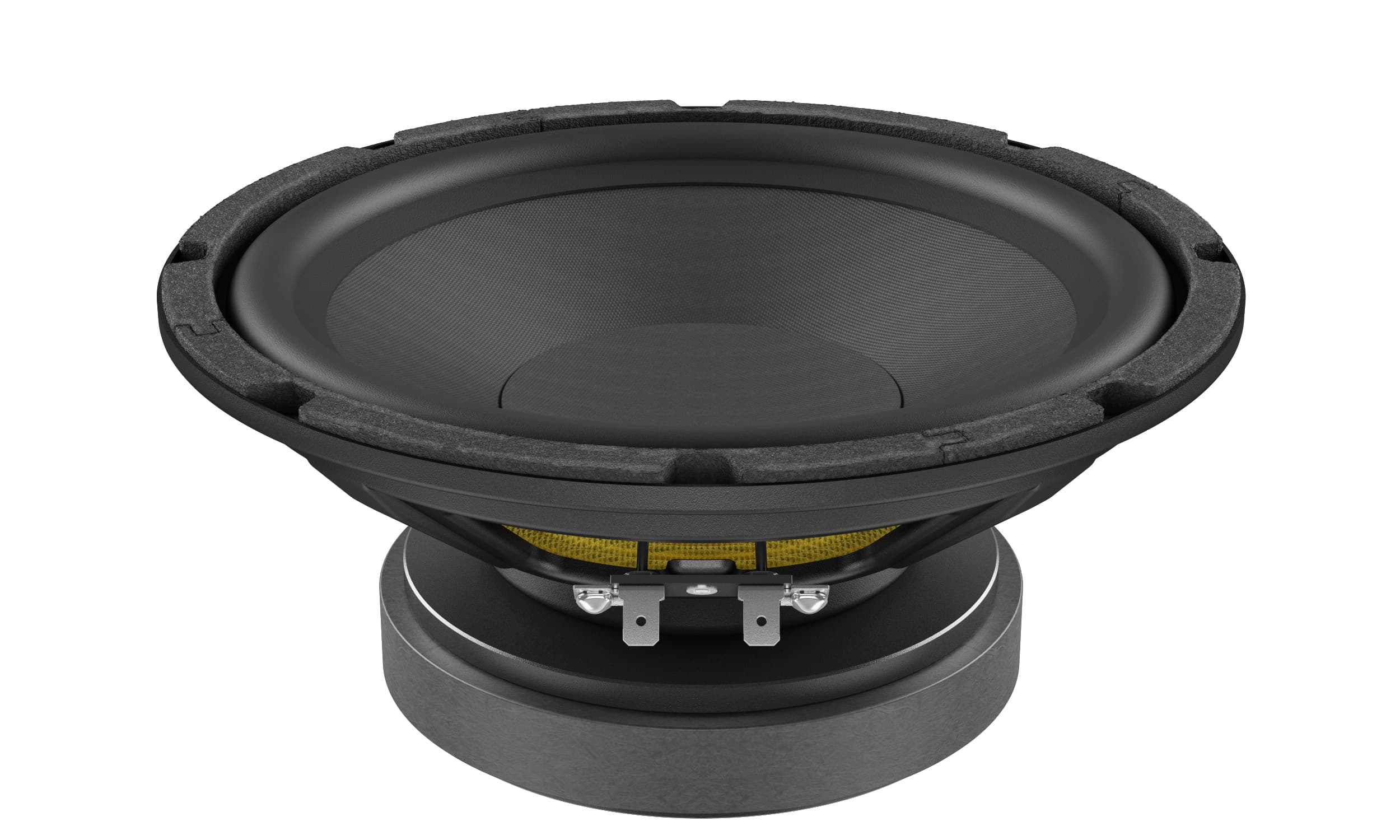

Lavoce
FBASS08-18
8"
Xmax4.5mm-14%
Qts0.40%
BL11.4Tm+8%
Vas23.6L+18%
Qes0.430%
80%
Similarity
£96.76

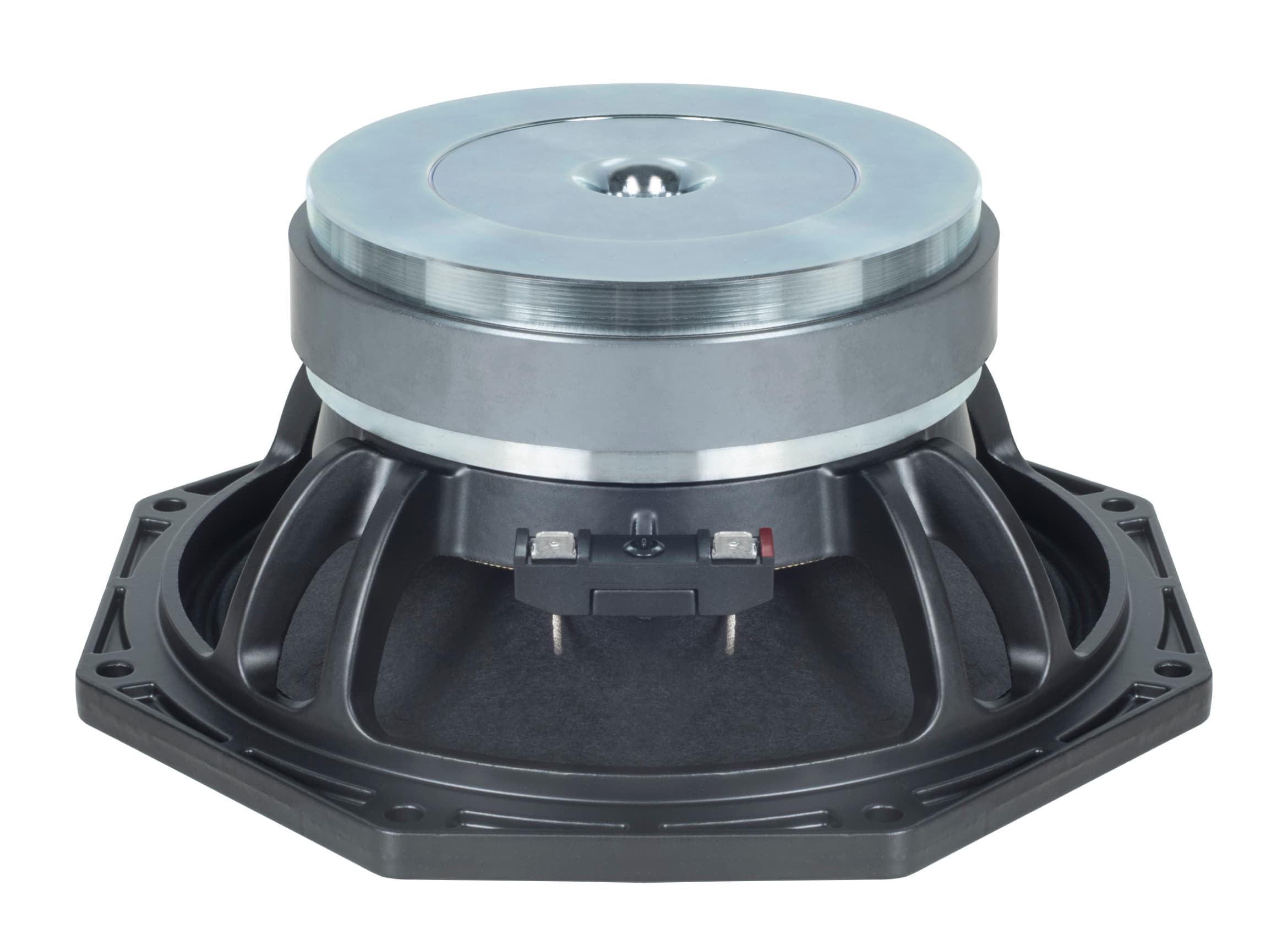

B&C
8FMB51
8"
Xmax5.5mm+5%
Qts0.39-3%
BL13.7Tm+30%
Vas20.5L+3%
Qes0.430%
80%
Similarity
£135.13
FaitalPRO
8HX150
8"
Xmax4.9mm-6%
Qts0.41+2%
BL11.6Tm+10%
Vas13L-35%
Qes0.430%
80%
Similarity
£90.00
Eighteen Sound
8MB400
8"
Xmax5.8mm+10%
Qts0.38-5%
BL9.3Tm-12%
Vas23.9L+20%
Qes0.430%
79%
Similarity
£34.02
Lavoce
WSF081.82
8"
Xmax4.6mm-12%
Qts0.38-5%
BL11.3Tm+7%
Vas14.3L-28%
Qes0.430%
78%
Similarity
£43.52
FaitalPRO
8FE300
8"
Xmax5.5mm+5%
Qts0.44+10%
BL11.3Tm+7%
Vas15.7L-21%
Qes0.46+7%
