- Fs
- 30Hz
- Xmax
- 12.1mm
- SPL
- 84dB
- Pe
- 120W
- BL
- 13.7T·m
- Vd
- 266cm³
- Qts
- 0.28
- Vas
- 20L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 2 traces
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
spl
Frequency response
240 plotted pointsMedium confidence1,357 selected pixels of 2,327 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence2,645 selected pixels of 2,645

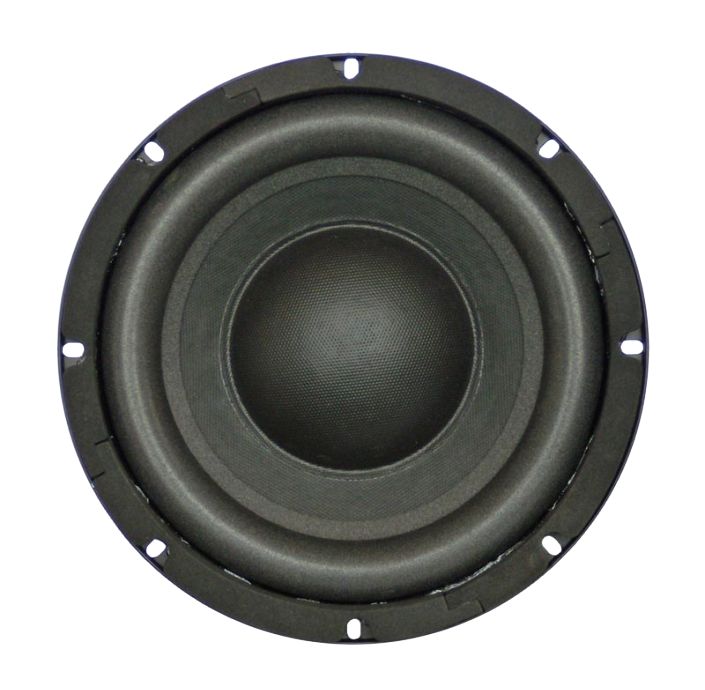

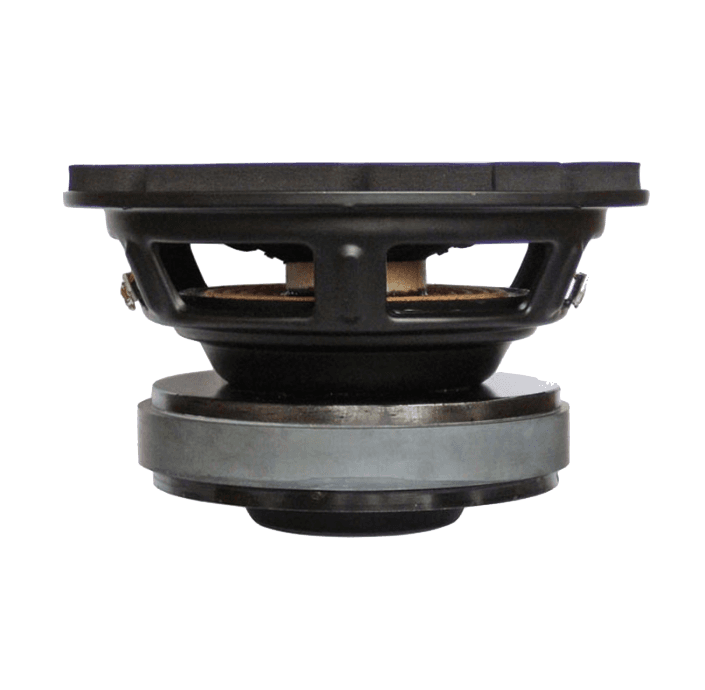

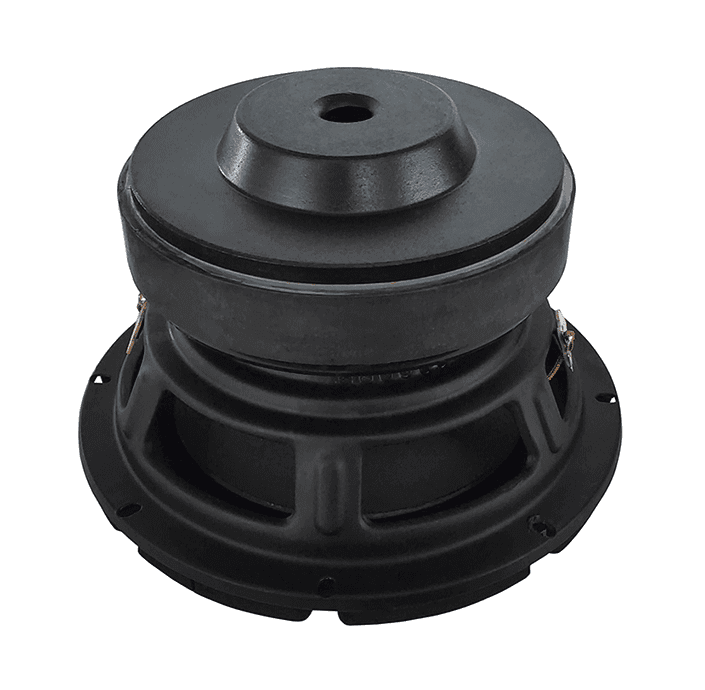

Tang Band W8-740P is an 8-inch 4 ohm LF driver rated at 120 W RMS. The validated T/S data includes Fs 30 Hz, Qts 0.28, Vas 20.0 L, Xmax 12.1 mm, sensitivity 84.4 dB, plus 266 cm³ Vd and 97 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 30Hz
- Qts
- 0.28
- Qes
- 0.31
- Qms
- 3.7
- Vas
- 20.0L
- Re
- 3.2Ω
- Le
- 0.84mH
Motor and cone
- BL
- 13.7T·m
- Sd
- 220cm²
- Mms
- 94g
- Xmax
- 12.1mm
- Vd †
- 266cm³
Power and response
- Sensitivity †
- 84.4dB
- Manufacturer sensitivity
- 84dB
- Power
- 120W
- Impedance
- 4Ω
- EBP †
- 97 · Sealed or vented
Other published values
- Power Peak
- 240
† Calculated by bits from the published values
What this validation status means
Everything else Tang Band lists
LF · Primary · 8″
- BL
- 13.7T·m
- Fs
- 30Hz
- Le
- 0.84mH
- Re
- 3.2Ω
- Sd
- 220cm²
- Mms
- 94g
- Qes
- 0.31
- Qms
- 3.7
- Qts
- 0.28
- SPL
- 84.4dB
- Vas
- 20.0L
- Xmax
- 12.1mm
- Power
- 120W
- Impedance
- 4Ω
- Power Peak
- 240
- Sensitivity
- 84dB
- Calculated sensitivity †
- 84.4dB
- Manufacturer sensitivity
- 84dB
