Overview
LF Driver
Sica
Sica 8 H 2 CP
Sica 8 H 2 CP is a 8" 8 ohm LF driver rated at 200W RMS. The validated T/S data includes Fs 39Hz, Qts 0.43, Vas 35.9L, Xmax 6.5mm, sensitivity 88.6dB, plus 139cm³ Vd and 83 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
8Ω
RMS Power
200W
Sensitivity
88.6dB
89.7dBmanufacturer; using T/S-derived value (1.1dB delta).
EBP
83
Either alignment
Vd
139cm³
T/S Parameters
Valid
Fs39Hz
Qts0.43
Qes0.47
Qms5.8
Vas35.9L
Re6.2Ω
Le0.59mH
BL9.9Tm
Sd214cm²
Mms30g
Xmax6.5mm
SPL89dB
Power200W
Impedance8Ω
Voice Coil50mm
Flux Density0.98T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight2.6kg
Diameter210.0mm
Overall Depth97.5mm
Cutout Diameter184.0mm
Bolt Circle Diameter196.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Sica
8 H 2 CP
8"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
77%
Similarity
HiVi
MY8N
8"
Xmax5mm-23%
Qts0.430%
BL9.9Tm0%
Vas40.9L+14%
Qes0.54+15%
77%
Similarity
£103.07
Eighteen Sound
8MB500
8"
Xmax6mm-8%
Qts0.430%
BL9Tm-9%
Vas21.5L-40%
Qes0.51+9%
76%
Similarity
£54.16
HiVi
F8
8"
Xmax5mm-23%
Qts0.4-7%
BL10.3Tm+4%
Vas38.8L+8%
Qes0.44-6%
76%
Similarity
£51.58
Dayton Audio
SD215A-88
8"
Xmax6mm-8%
Qts0.39-9%
BL7.7Tm-22%
Vas38.2L+6%
Qes0.45-4%
73%
Similarity
£42.24
Dayton Audio
DA215-8
8"
Xmax5.3mm-18%
Qts0.37-14%
BL10Tm+1%
Vas42.7L+19%
Qes0.45-4%
73%
Similarity
£42.98
GRS
8SMP-8
8"
Xmax5.5mm-15%
Qts0.46+7%
BL8.9Tm-10%
Vas32.5L-9%
Qes0.55+17%
72%
Similarity
Eighteen Sound

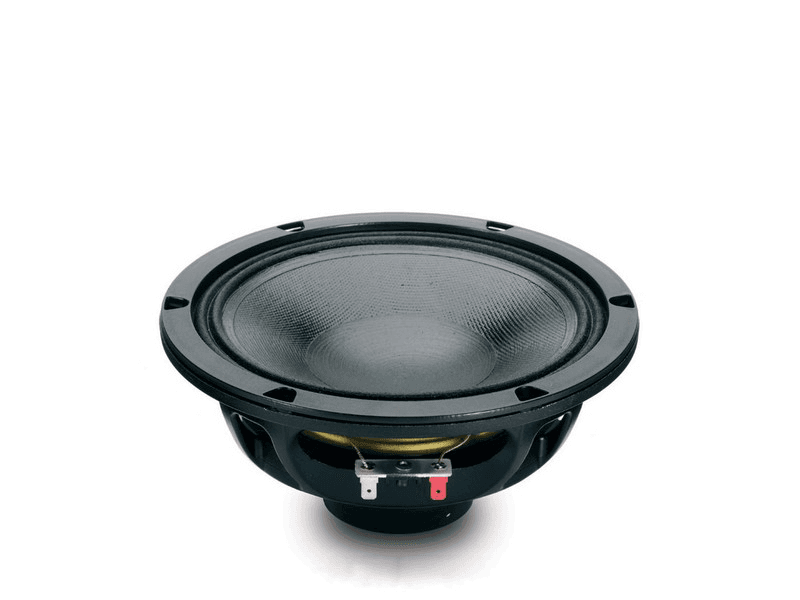

8NMB420
8"
Xmax5.8mm-11%
Qts0.41-5%
BL12Tm+21%
Vas24.5L-32%
Qes0.470%
72%
Similarity
Tang Band
W8-670T
8"
Xmax7.8mm+21%
Qts0.45+5%
BL9.4Tm-5%
Vas23.3L-35%
Qes0.49+4%
72%
Similarity
Tang Band
W8-1747A
8"
Xmax8mm+23%
Qts0.41-5%
BL10Tm+1%
Vas23.2L-35%
Qes0.5+6%
72%
Similarity
£71.67
HiVi
E8
8"
Xmax5.9mm-9%
Qts0.37-14%
BL9.9Tm0%
Vas49.8L+39%
Qes0.43-9%
71%
Similarity
£90.00
Eighteen Sound
8MB400
8"
Xmax5.8mm-11%
Qts0.38-12%
BL9.3Tm-6%
Vas23.9L-33%
Qes0.43-9%
71%
Similarity
CIARE
CW202
8"
Xmax6.5mm0%
Qts0.41-5%
BL6.5Tm-34%
Vas48L+34%
Qes0.48+2%
