Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespCIARE CW202 4Ω
LF DriverMedia
Overview
LF DriverCW series
CIARE
CIARE CW202

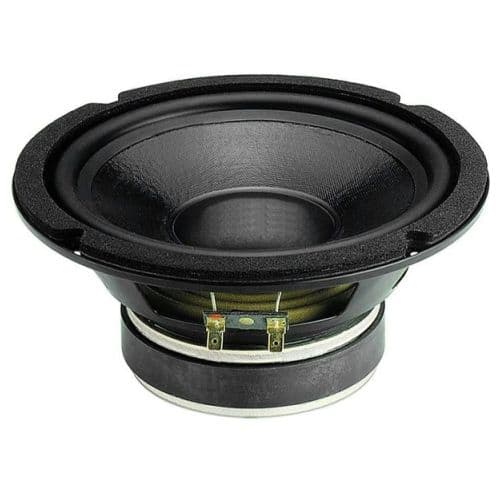

CIARE CW202 is a 8" 4 ohm LF driver rated at 120W RMS. The validated T/S data includes Fs 40Hz, Qts 0.41, Vas 48L, Xmax 6.5mm, sensitivity 90.1dB, plus 144cm³ Vd and 83 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
4Ω
RMS Power
120W
Sensitivity
90.1dB
EBP
83
Either alignment
Vd
144cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence1,474 selected pixels of 1,612
T/S Parameters
Valid
Fs40Hz
Qts0.41
Qes0.48
Qms3.0
Vas48.0L
Re3.9Ω
Le0.52mH
BL6.5Tm
Sd222cm²
Mms23g
Xmax6.5mm
SPL90dB
Power120W
Power Nominal120W
Impedance4Ω
F Low35Hz
F High35Hz
Voice Coil38mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight2.4kg
Diameter209.5mm
Overall Depth103.0mm
Cutout Diameter180.0mm
Bolt Circle Diameter198.5mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
CIARE
CW202
8"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
90%
Similarity
£66.55
Dayton Audio
RS225-4
8"
Xmax6mm-8%
Qts0.410%
BL6.4Tm-2%
Vas46.4L-3%
Qes0.52+8%
89%
Similarity
£66.55
Dayton Audio
RS225P-4A
8"
Xmax6mm-8%
Qts0.38-7%
BL6.4Tm-2%
Vas45.8L-5%
Qes0.480%
81%
Similarity
HiVi
S8-98R
8"
Xmax6mm-8%
Qts0.42+2%
BL6.9Tm+6%
Vas65.2L+36%
Qes0.47-2%
Image unavailable
79%
Similarity
Wavecor
WF223BD01
8"
Xmax6.5mm0%
Qts0.39-5%
BL7.7Tm+18%
Vas45L-6%
Qes0.4-17%
78%
Similarity

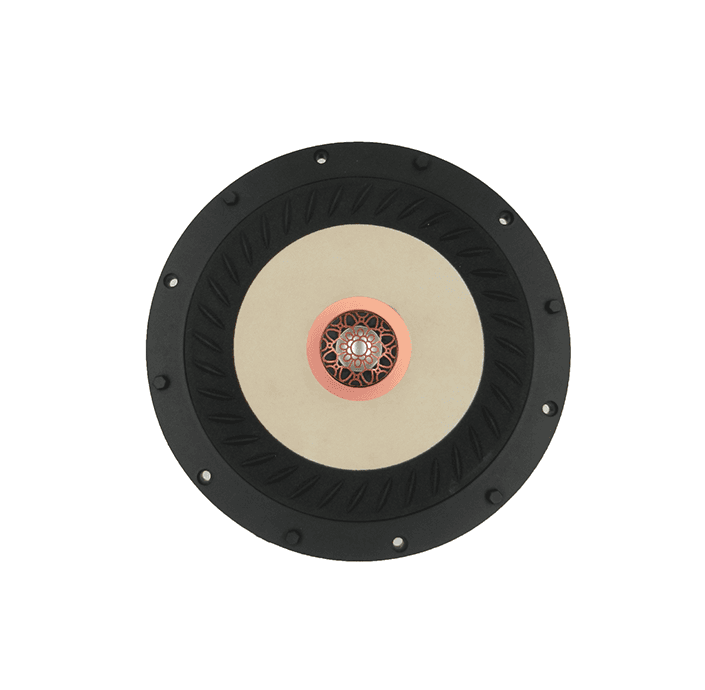

Tang Band
W8-2314
8"
Xmax6mm-8%
Qts0.46+12%
BL6.1Tm-7%
Vas49.5L+3%
Qes0.54+13%
76%
Similarity
Dayton Audio
SD215A-88
8"
Xmax6mm-8%
Qts0.39-5%
BL7.7Tm+18%
Vas38.2L-20%
Qes0.45-6%
75%
Similarity
HiVi
S8-98
8"
Xmax5.8mm-11%
Qts0.44+7%
BL6.6Tm+1%
Vas64.9L+35%
Qes0.52+8%
72%
Similarity

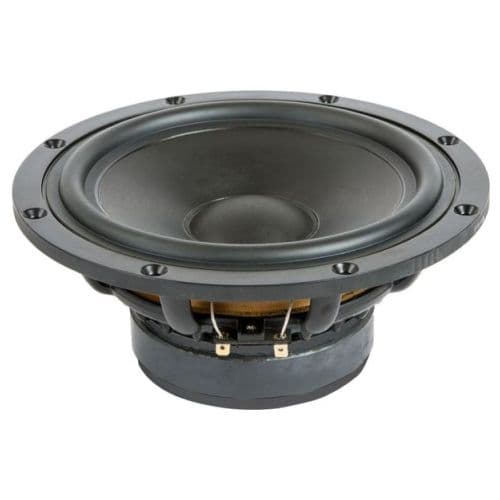

CIARE
HWB200
8"
Xmax7mm+8%
Qts0.38-7%
BL7.3Tm+12%
Vas57L+19%
Qes0.39-19%
68%
Similarity

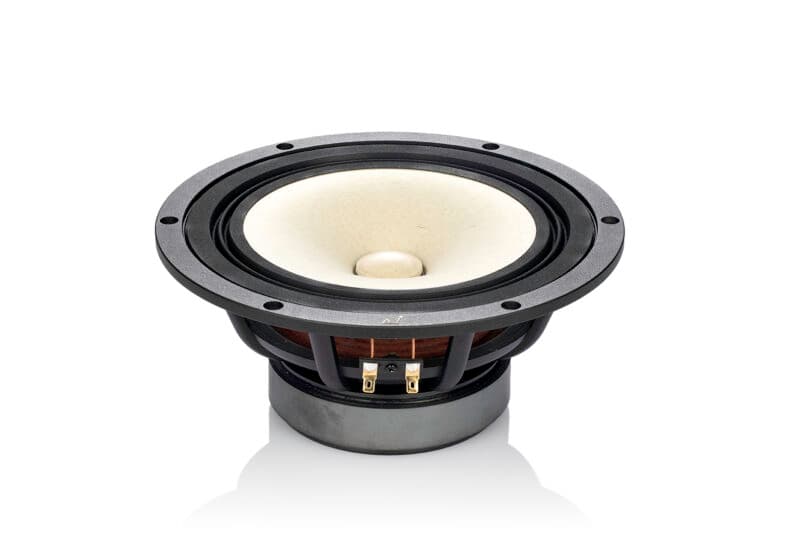

Markaudio
