Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespSica 8 H 1 CS 8Ω
LF DriverMedia
Auto-advancing
Overview
LF Driver
Sica
Sica 8 H 1 CS

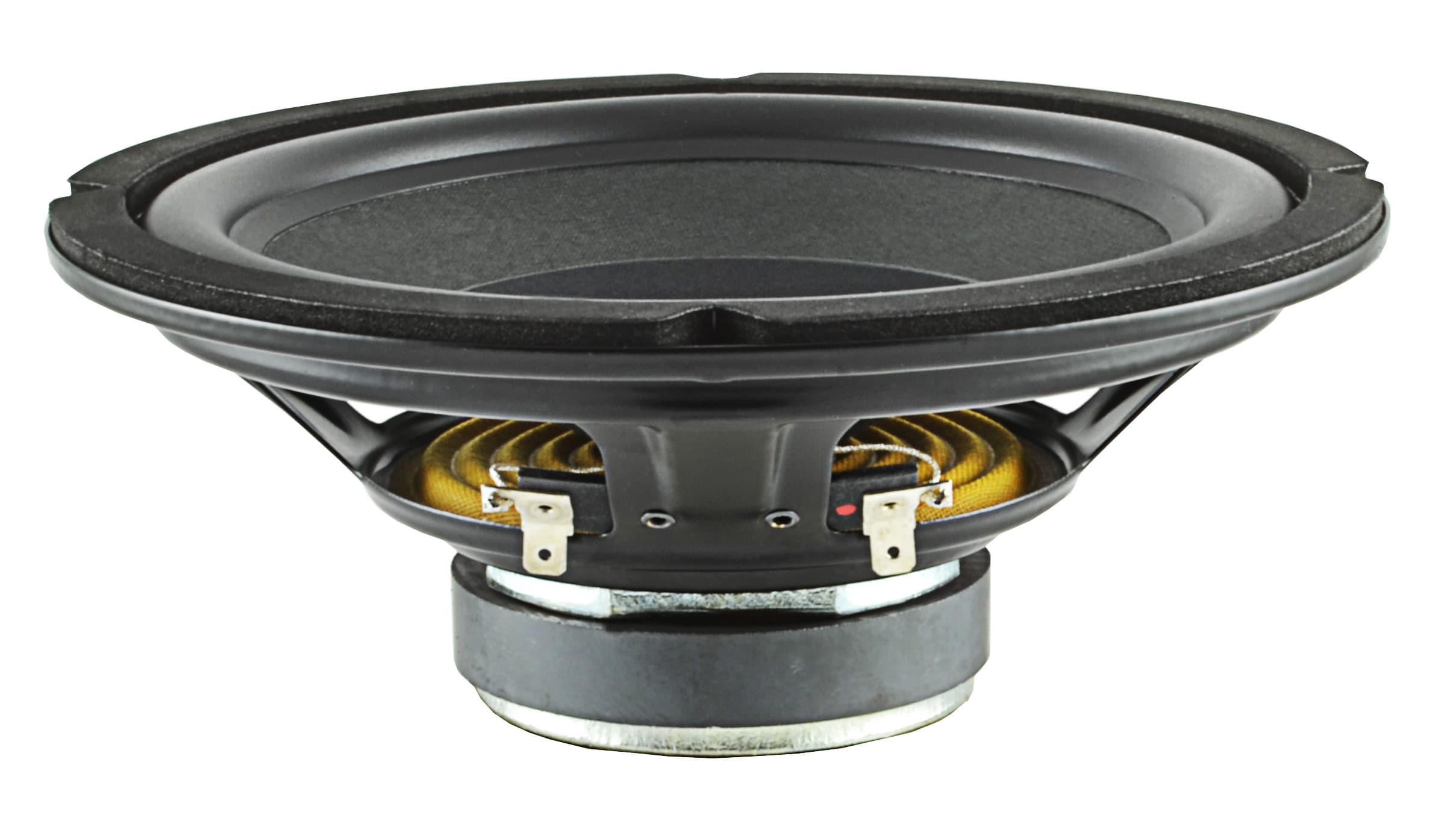

Sica 8 H 1 CS is a 8" 8 ohm LF driver rated at 70W RMS. The validated T/S data includes Fs 50Hz, Qts 0.54, Vas 27.8L, Xmax 4mm, sensitivity 89.5dB, plus 86cm³ Vd and 83 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
8Ω
RMS Power
70W
Sensitivity
89.5dB
90.7dBmanufacturer; using T/S-derived value (1.2dB delta).
EBP
83
Either alignment
Vd
86cm³
T/S Parameters
Valid
Fs50Hz
Qts0.54
Qes0.60
Qms5.1
Vas27.8L
Re6.1Ω
Le1.80mH
BL8.7Tm
Sd214cm²
Mms24g
Xmax4.0mm
SPL90dB
Power70W
Impedance8Ω
Voice Coil25mm
Flux Density0.95T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.1kg
Diameter210.0mm
Overall Depth85.1mm
Cutout Diameter184.0mm
Bolt Circle Diameter197.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Sica
8 H 1 CS
8"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
84%
Similarity
PRV Audio
8MR400
8"
Xmax4mm0%
Qts0.52-4%
BL8.2Tm-7%
Vas20.2L-27%
Qes0.56-7%
83%
Similarity
£33.89
PRV Audio
8MR450A
8"
Xmax4mm0%
Qts0.55+2%
BL7.6Tm-13%
Vas34.9L+25%
Qes0.57-5%
71%
Similarity
£18.03
GRS
8FR-8
8"
Xmax3mm-25%
Qts0.56+4%
BL8.5Tm-2%
Vas37L+33%
Qes0.63+5%
68%
Similarity
£45.26
Dayton Audio
PA200-8
8"
Xmax3mm-25%
Qts0.48-11%
BL9.3Tm+6%
Vas26.6L-4%
Qes0.51-15%
68%
Similarity
£30.17
Dayton Audio
PCS8-4
8"
Xmax5mm+25%
Qts0.49-9%
BL8.4Tm-4%
Vas20.5L-26%
Qes0.56-7%
67%
Similarity
£37.72
Dayton Audio
MB820-8
8"
Xmax4mm0%
Qts0.46-15%
BL9.6Tm+10%
Vas15.8L-43%
Qes0.52-13%
66%
Similarity
PRV Audio
8MR500-NDY-4
8"
Xmax3mm-25%
Qts0.540%
BL6Tm-31%
Vas24.3L-12%
Qes0.57-5%
62%
Similarity
£54.66
Eminence
ALPHA-8A
8"
Xmax3.2mm-20%
Qts0.59+9%
BL7.8Tm-11%
Vas17.7L-36%
Qes0.68+13%
61%
Similarity
£33.72
FaitalPRO
8FE200
8"
Xmax4.7mm+17%
Qts0.63+17%
BL8.2Tm-6%
Vas16.1L-42%
Qes0.66+10%
60%
Similarity
PRV Audio
8MB500-4
8"
Xmax4.5mm+13%
Qts0.64+19%
BL7.5Tm-14%
Vas17.3L-38%
Qes0.66+10%
54%
Similarity
HiVi
D8.8MKII
8.75"
Xmax5mm+25%
Qts0.57+6%
BL9.6Tm+10%
Vas38.1L+37%
Qes0.61+2%
54%
Similarity
£137.63
FaitalPRO
8PR150
8"
Xmax5mm+25%
Qts0.48-11%
BL10.4Tm+19%
Vas16.2L-42%
Qes0.54-10%
