Overview
LF Driver
Tang Band

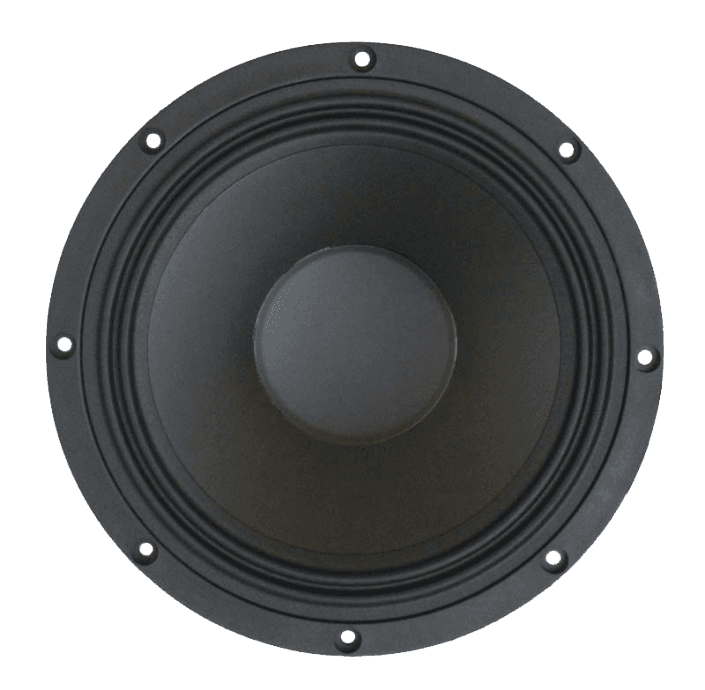

Tang Band W8-750C
Tang Band W8-750C is a 8" 8 ohm LF driver rated at 60W RMS. The validated T/S data includes Fs 30Hz, Qts 0.43, Vas 57.0L, Xmax 3.9mm, sensitivity 86.9dB, plus 86cm³ Vd and 60 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
8Ω
RMS Power
60W
Sensitivity
86.9dB
EBP
60
Either alignment
Vd
86cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
spl240 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
spl
Frequency response
240 plotted pointsMedium confidence935 selected pixels of 1,277
T/S Parameters
Valid
Fs30Hz
Qts0.43
Qes0.50
Qms3.0
Vas57.0L
Re6.0Ω
Le0.23mH
BL8.4Tm
Sd220cm²
Mms29g
Xmax3.9mm
SPL87dB
Power60W
Impedance8Ω
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
