PRV Audio 8MR360-4 4Ω
4 Ω · 90–7000 Hz
No current price
- Fs
- 98Hz
- Xmax
- 4mm
- SPL
- 96dB
- Pe
- –
- BL
- 6.8T·m
- Vd
- 90cm³
- Qts
- 0.51
- Vas
- 14L

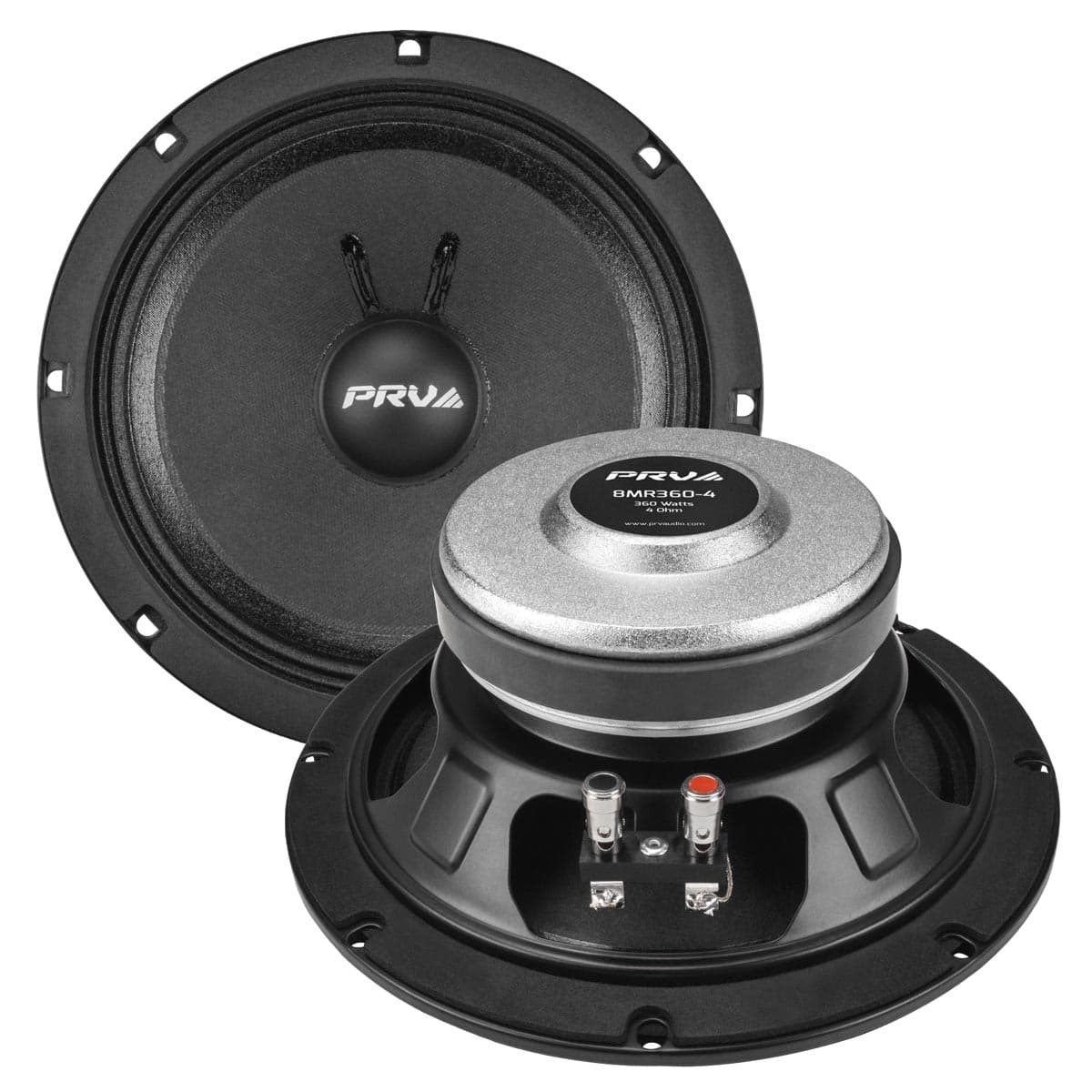

PRV Audio 8MR360-4 is an 8-inch 4 ohm LF driver. The validated T/S data includes Fs 98 Hz, Qts 0.51, Vas 14.4 L, Xmax 4 mm, sensitivity 96.1 dB, plus 90 cm³ Vd and 188 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 98Hz
- Qts
- 0.51
- Qes
- 0.52
- Qms
- 16.4
- Vas
- 14.4L
- Re
- 3.1Ω
- Le
- 0.39mH
Motor and cone
- BL
- 6.8T·m
- Sd
- 224cm²
- Mms
- 13g
- Xmax
- 4mm
- Vd †
- 90cm³
- Voice coil
- 37mm
Power and response
- Sensitivity †
- 96.1dB
- Manufacturer sensitivity
- 95dB
- Impedance
- 4Ω
- Range
- 90–7000Hz
- EBP †
- 188 · Leans vented
Size and mounting
- Cutout
- 176mm
- Depth
- 89.5mm
- Weight
- 2.2kg
Other published values
- Cms
- 0.20mm/N
Other dimensions
- Mounting Depth
- 81.5
Sensitivity shows 96.1 dB, calculated from the T/S values. PRV Audio publishes 95.0 dB, 1.1 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else PRV Audio lists
MF · Primary · 8″
- BL
- 6.8T·m
- Fs
- 98Hz
- Le
- 0.39mH
- Re
- 3.1Ω
- Sd
- 224cm²
- Cms
- 0.20mm/N
- Mms
- 13g
- Qes
- 0.52
- Qms
- 16.4
- Qts
- 0.51
- SPL
- 96.1dB
- Vas
- 14.4L
- Xmax
- 4mm
- Impedance
- 4Ω
- Sensitivity
- 95dB
- Low limit
- 90Hz
- Calculated sensitivity †
- 96.1dB
- High limit
- 7000Hz
- Manufacturer sensitivity
- 95dB
- Voice coil
- 37mm
- Weight
- 2.2kg
- Depth
- 89.5mm
- Mounting Depth
- 81.5
- Cutout
- 176mm
