Overview
LF Driver
FaitalPRO

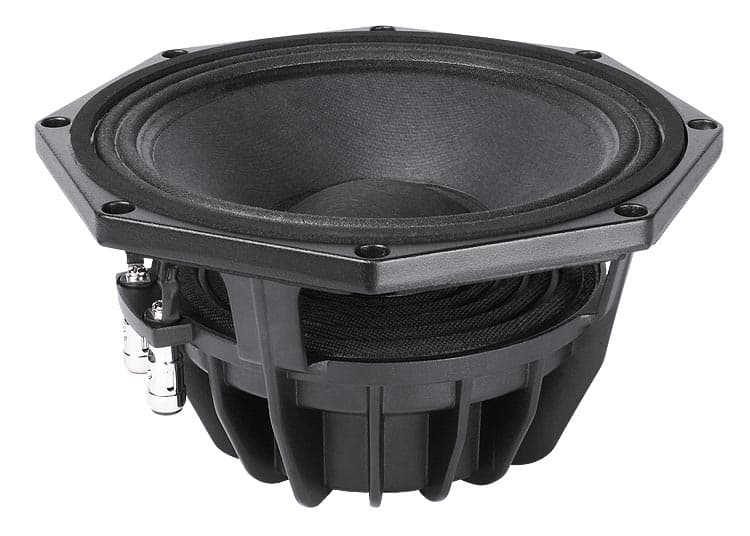

FaitalPRO W8N8-150
FaitalPRO W8N8-150 is a 8" 8 ohm LF driver rated at 150W RMS. The validated T/S data includes Fs 76Hz, Qts 0.52, Vas 14.4L, Xmax 5.5mm, sensitivity 92.3dB, plus 123cm³ Vd and 129 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £55.00.
Size
8"
Impedance
8Ω
RMS Power
150W
Sensitivity
92.3dB
94.0dBmanufacturer; using T/S-derived value (1.7dB delta).
EBP
129
Vented alignment
Vd
123cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
0 degrees197 ptsp1medium
45 degrees240 ptsp1medium
Curve provenanceInspect 3 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
0 degrees
Frequency response
197 plotted pointsMedium confidence497 selected pixels of 1,035 - Trace datasheet-response-trace-poc/v1
45 degrees
Frequency response
240 plotted pointsMedium confidence933 selected pixels of 1,141 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence1,341 selected pixels of 1,341
T/S Parameters
Valid
Fs76Hz
Qts0.52
Qes0.59
Qms4.7
Vas14.4L
Re5.8Ω
Le0.55mH
BL9.9Tm
Sd222cm²
Mms21g
Xmax5.5mm
SPL92dB
Power150W
Impedance8Ω
F Low80Hz
F High6300Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£55.00
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.7kg
Diameter223.8mm
Overall Depth116.7mm
Cutout Diameter183.0mm
Bolt Circle Diameter210.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
FaitalPRO
W8N8-150
8"
Best current price
£55.00
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
61%
Similarity
42% cheaper£32.00
FaitalPRO
8FE200
8"
Lower price
Xmax4.7mm-15%
Qts0.63+21%
BL8.2Tm-17%
Vas16.1L+12%
Qes0.66+12%
68%
Similarity
32% cheaper£37.43
Dayton Audio
MB820-8
8"
Lower price
Xmax4mm-28%
Qts0.46-12%
BL9.6Tm-3%
Vas15.8L+10%
Qes0.52-12%
71%
Similarity
32% cheaper£37.54
SB Audience
BIANCO-8MW125
8"
Lower price
Xmax6.4mm+16%
Qts0.55+6%
BL11.3Tm+14%
Vas10.1L-30%
Qes0.57-3%
72%
Similarity
21% cheaper£43.52
FaitalPRO
8FE300
8"
Lower price
Xmax5.5mm0%
Qts0.44-15%
BL11.3Tm+14%
Vas15.7L+9%
Qes0.46-22%
78%
Similarity
19% cheaper£44.69
FaitalPRO
8FE400
8"
Lower price
Xmax4.8mm-14%
Qts0.53+2%
BL10.5Tm+6%
Vas9.4L-35%
Qes0.58-2%
59%
Similarity
11% cheaper£49.00
SB Audience
BIANCO-8MW250
8"
Lower price
Xmax6.5mm+18%
Qts0.4-23%
BL11Tm+11%
Vas13.8L-4%
Qes0.45-24%
52%
Similarity
9% cheaper£50.00
Celestion
TF0818
8"
Lower price
Xmax5mm-9%
Qts0.43-18%
BL12.9Tm+31%
Vas9.4L-34%
Qes0.49-16%
53%
Similarity
9% more£59.70
Celestion
TRUVOX 0820
8"
Higher price
Xmax5mm-9%
Qts0.39-25%
BL11.5Tm+16%
Vas17.3L+20%
Qes0.42-29%
26%
Similarity
58% more£86.95
Scanspeak
18W/8434G00
7"
Higher price
Xmax4.2mm-24%
Qts0.43-17%
BL7.2Tm-27%
Vas19.5L+35%
Qes0.46-22%
52%
Similarity
69% more£92.98
B&C
8CL51
8"
Higher price
Xmax6.5mm+18%
Qts0.41-21%
BL12Tm+21%
Vas12.5L-13%
Qes0.44-25%
62%
Similarity
80% more£99.00
Celestion
FTR08-2011D
8"
Higher price
Xmax5.5mm0%
Qts0.44-16%
BL12.7Tm+28%
Vas9L-38%
Qes0.54-8%
55%
Similarity
87% more£103.00
B&C
8NDL51
8"
Higher price
Xmax7mm+27%
Qts0.57+10%
BL7.3Tm-26%
Vas10.1L-30%
Qes0.64+8%
