Overview
LF DriverSPM series
Monacor

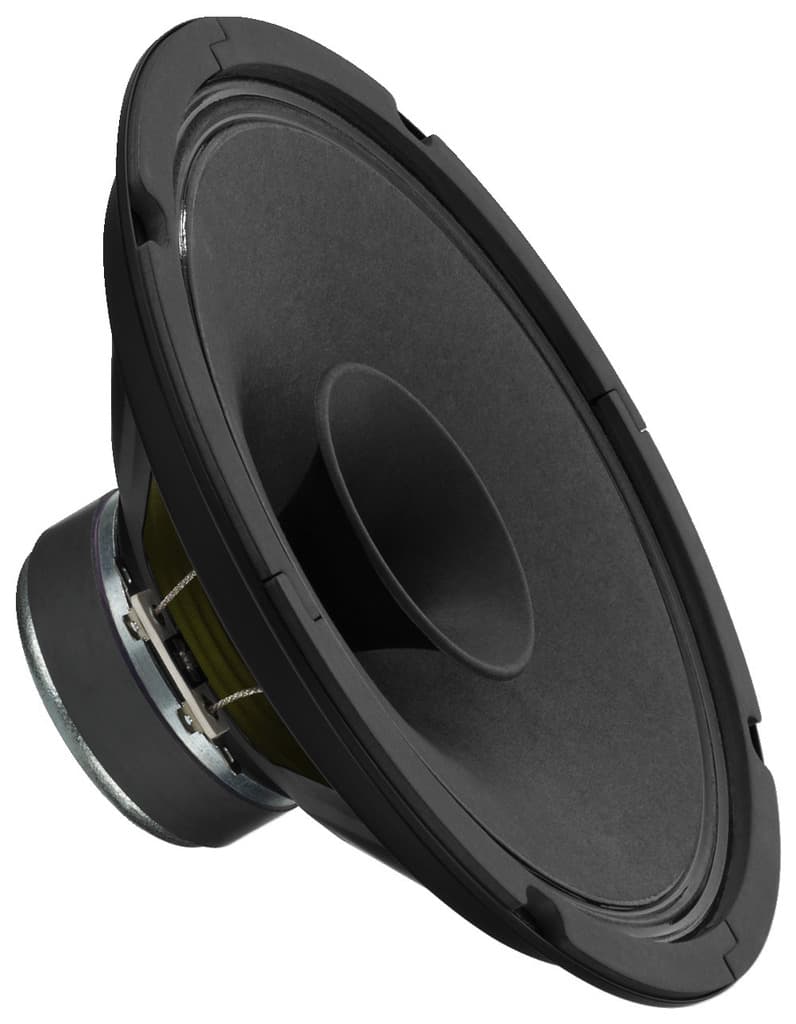

Monacor SPM-200X/4
Monacor SPM-200X/4 is a 8" 4 ohm LF driver rated at 30W RMS. The validated T/S data includes Fs 89Hz, Qts 0.97, Vas 14.9L, Xmax 1mm, sensitivity 90.4dB, plus 20cm³ Vd and 59 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
4Ω
RMS Power
30W
Sensitivity
90.4dB
94.0dBmanufacturer; using T/S-derived value (3.6dB delta).
EBP
59
Either alignment
Vd
20cm³
T/S Parameters
Valid
Fs89Hz
Qts0.97
Qes1.52
Qms2.7
Vas14.9L
Re3.7Ω
Le0.20mH
BL3.9Tm
Sd201cm²
Mms10g
Xmax1.0mm
SPL90dB
Power30W
Impedance4Ω
F Low3Hz
F High15000Hz
Voice Coil25mm
Pricing & availability
Price definitionsVendor offers
1 vendorsoundimports
Updated 11 Sept 2026· 4Ω
Source: inc VAT
£32.61
inc VAT
Out of stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

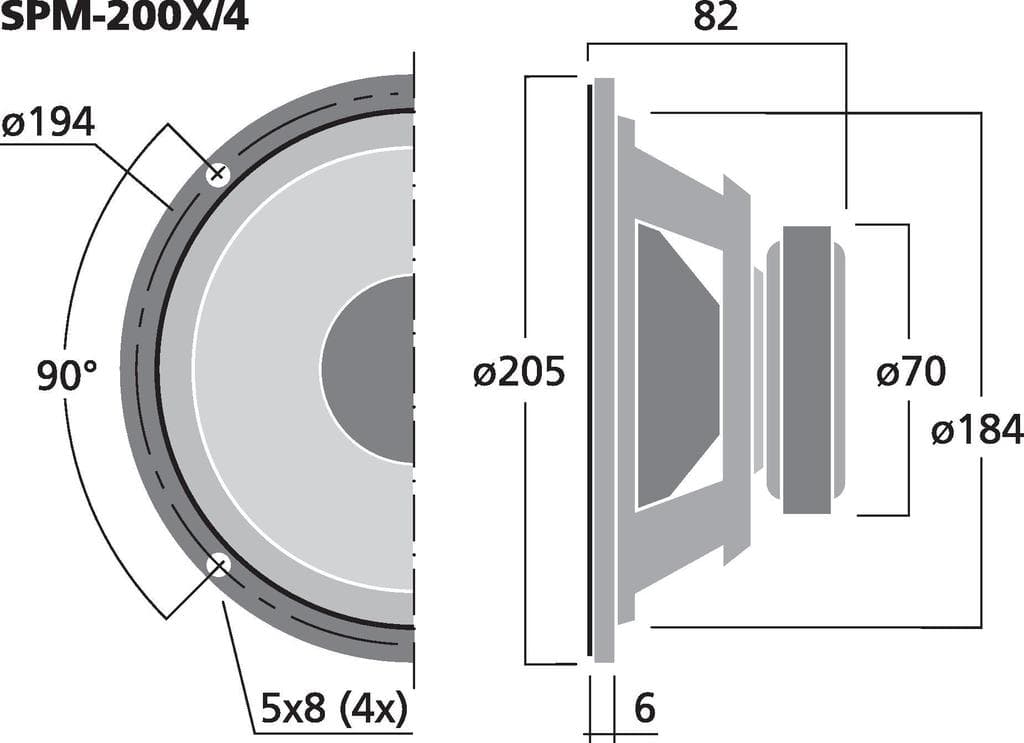

Dimensions & Physical
Weight0.7kg
Diameter205.0mm
Overall Depth82.0mm
Cutout Diameter184.0mm
