Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespSica 8 D 1.5 CS 8Ω
LF DriverMedia
Auto-advancing
Overview
LF Driver
Sica

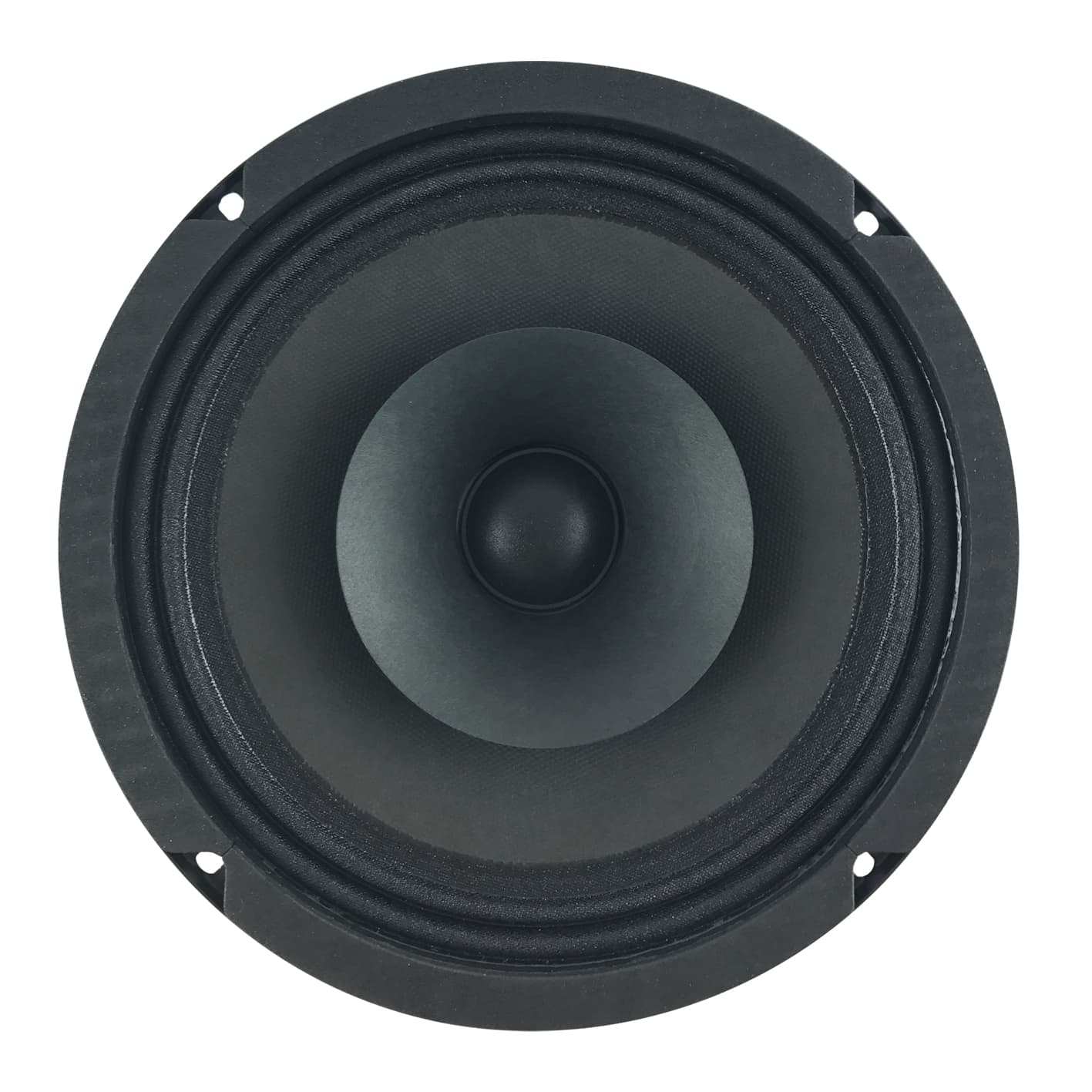

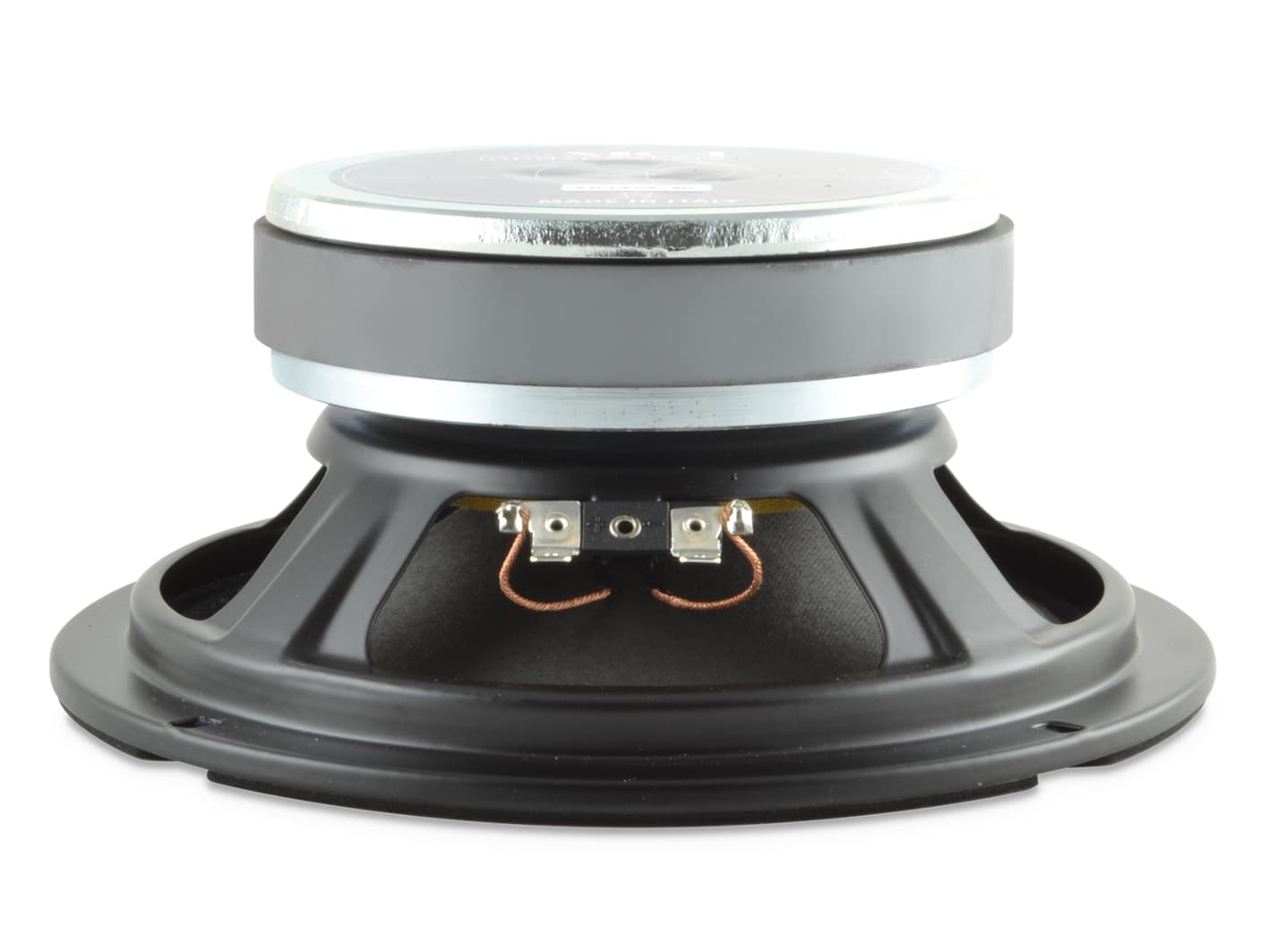

Sica 8 D 1.5 CS
Sica 8 D 1.5 CS is a 8" 8 ohm LF driver rated at 130W RMS. The validated T/S data includes Fs 62Hz, Qts 0.30, Vas 25.5L, Xmax 2.5mm, sensitivity 94.4dB, plus 53cm³ Vd and 177 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
8Ω
RMS Power
130W
Sensitivity
94.4dB
EBP
177
Vented alignment
Vd
53cm³
T/S Parameters
Valid
Fs62Hz
Qts0.30
Qes0.35
Qms2.2
Vas25.5L
Re6.6Ω
Le0.35mH
BL11.2Tm
Sd214cm²
Mms17g
Xmax2.5mm
SPL94dB
Power130W
Impedance8Ω
Voice Coil38mm
Flux Density1.10T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight3.1kg
Diameter208.0mm
Overall Depth88.6mm
Cutout Diameter184.0mm
Bolt Circle Diameter197.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Sica
8 D 1.5 CS
8"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
7 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
78%
Similarity
Celestion
TN0820
8"
Xmax2mm-20%
Qts0.28-6%
BL11.8Tm+5%
Vas21.9L-14%
Qes0.35-1%
74%
Similarity
£95.86
Eminence
BETA 8CX
8"
Xmax3.2mm+28%
Qts0.29-3%
BL11.2Tm0%
Vas21.4L-16%
Qes0.31-11%
Image unavailable
65%
Similarity
Wavecor
WF211PA01
8"
Xmax2mm-20%
Qts0.29-3%
BL10.7Tm-4%
Vas13.6L-47%
Qes0.3-14%
63%
Similarity
Monacor
SP-308CX
8"
Xmax2.5mm0%
Qts0.36+20%
BL12.1Tm+8%
Vas15.4L-40%
Qes0.43+23%
58%
Similarity
Jensen
BP8150-8
8"
Xmax3.1mm+24%
Qts0.33+10%
BL13.3Tm+19%
Vas13.1L-49%
Qes0.36+3%
52%
Similarity
£114.19
Eighteen Sound
8M400F
8"
Xmax3mm+20%
Qts0.26-13%
BL13.1Tm+17%
Vas13.7L-46%
Qes0.28-20%
50%
Similarity
Wavecor
WF211PA02
8"
Xmax2mm-20%
Qts0.25-17%
BL13.4Tm+20%
Vas18.2L-29%
Qes0.26-26%
