Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespEighteen Sound 15ND940 16Ω
LF DriverMedia
Auto-advancing
Overview
LF Driver
Eighteen Sound

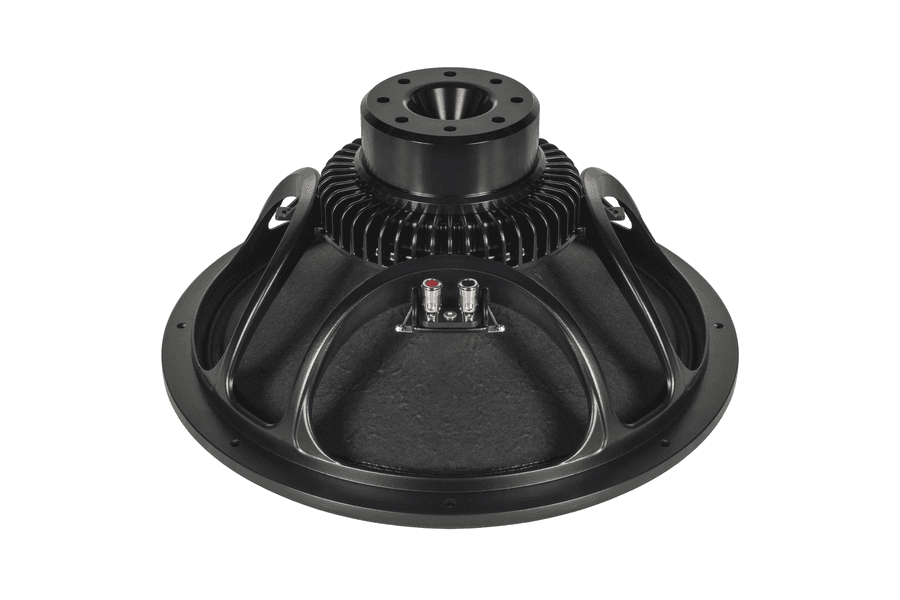

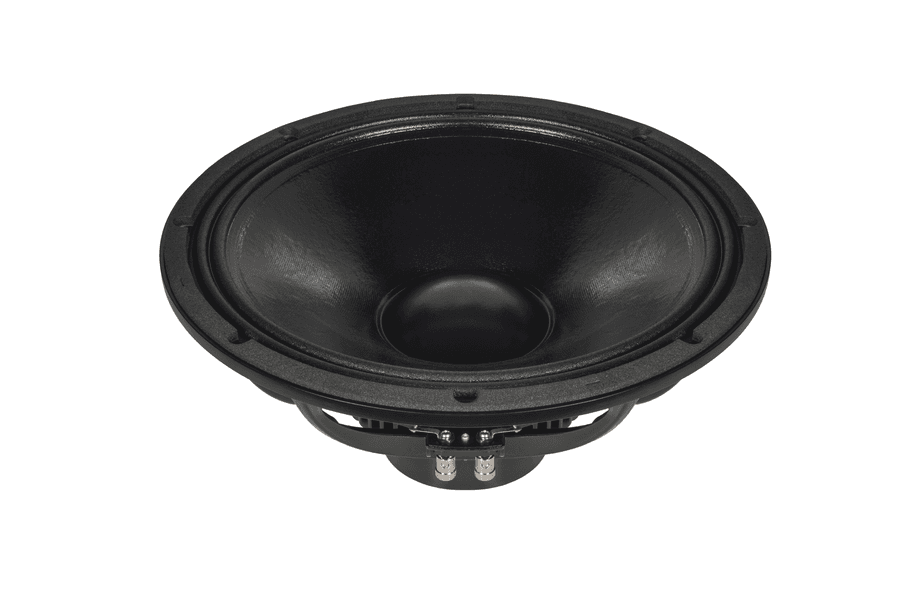

Eighteen Sound 15ND940
Eighteen Sound 15ND940 is a 15" 16 ohm LF driver rated at 600W RMS. The validated T/S data includes Fs 41Hz, Qts 0.36, Vas 166L, Xmax 9.5mm, sensitivity 96.7dB, plus 837cm³ Vd and 105 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
16Ω
RMS Power
600W
Sensitivity
96.7dB
98.5dBmanufacturer; using T/S-derived value (1.8dB delta).
EBP
105
Vented alignment
Vd
837cm³
T/S Parameters
Valid
Fs41Hz
Qts0.36
Qes0.39
Qms4.6
Vas166.0L
Re10.7Ω
Le1.00mH
BL26.6Tm
Sd881cm²
Mms102g
Xmax9.5mm
SPL97dB
Power600W
Power Nominal600W
Impedance16Ω
F Low38Hz
F High3300Hz
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight4.7kg
Diameter393.0mm
Overall Depth184.0mm
Cutout Diameter354.0mm
Bolt Circle Diameter371.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Eighteen Sound
15ND940
15"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
82%
Similarity
Eighteen Sound
15ND840
15"
Xmax9.5mm0%
Qts0.37+3%
BL17.9Tm-33%
Vas163L-2%
Qes0.390%
79%
Similarity
Sica
15 PNS 4
15"
Xmax9mm-5%
Qts0.35-3%
BL22.7Tm-15%
Vas116.3L-30%
Qes0.38-3%
79%
Similarity
£205.75
FaitalPRO
15FH530
15"
Xmax9.3mm-3%
Qts0.35-3%
BL20.7Tm-22%
Vas140.6L-15%
Qes0.36-8%
78%
Similarity
P.Audio
15FT-115XB
15"
Xmax9.5mm0%
Qts0.33-8%
BL26.8Tm+1%
Vas103.8L-37%
Qes0.34-13%
78%
Similarity
£161.93
FaitalPRO
15HP1010
15"
Xmax9.8mm+3%
Qts0.37+3%
BL22Tm-17%
Vas107.5L-35%
Qes0.38-3%
76%
Similarity
£288.24
Beyma
15LEX1000ND
15"
Xmax10mm+5%
Qts0.37+3%
BL21.9Tm-18%
Vas113L-32%
Qes0.41+5%
75%
Similarity
£385.21
Eighteen Sound
15NLW9500
15"
Xmax9mm-5%
Qts0.32-11%
BL21.6Tm-19%
Vas163L-2%
Qes0.34-13%
74%
Similarity
Sica
15 N 3 PL
15"
Xmax10mm+5%
Qts0.37+3%
BL18.4Tm-31%
Vas140.4L-15%
Qes0.37-5%
73%
Similarity

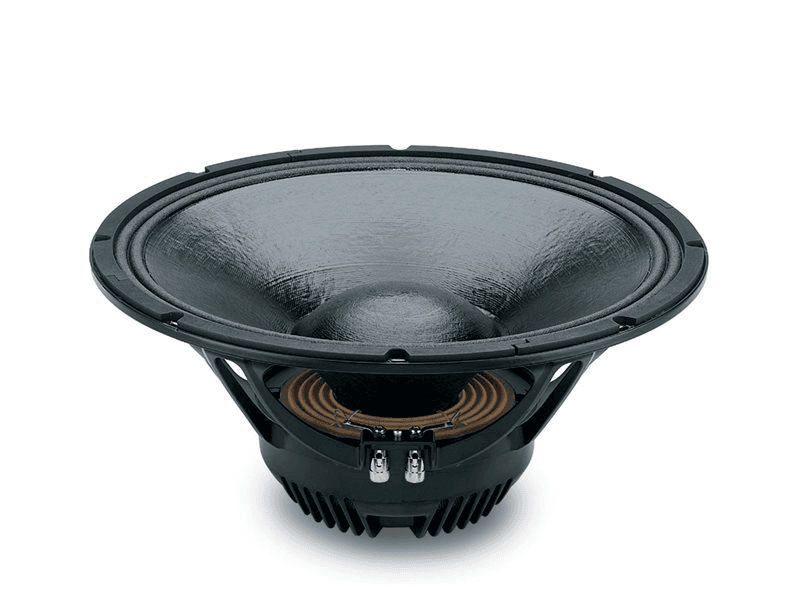

Eighteen Sound
