LF DriverLAB series
Eminence

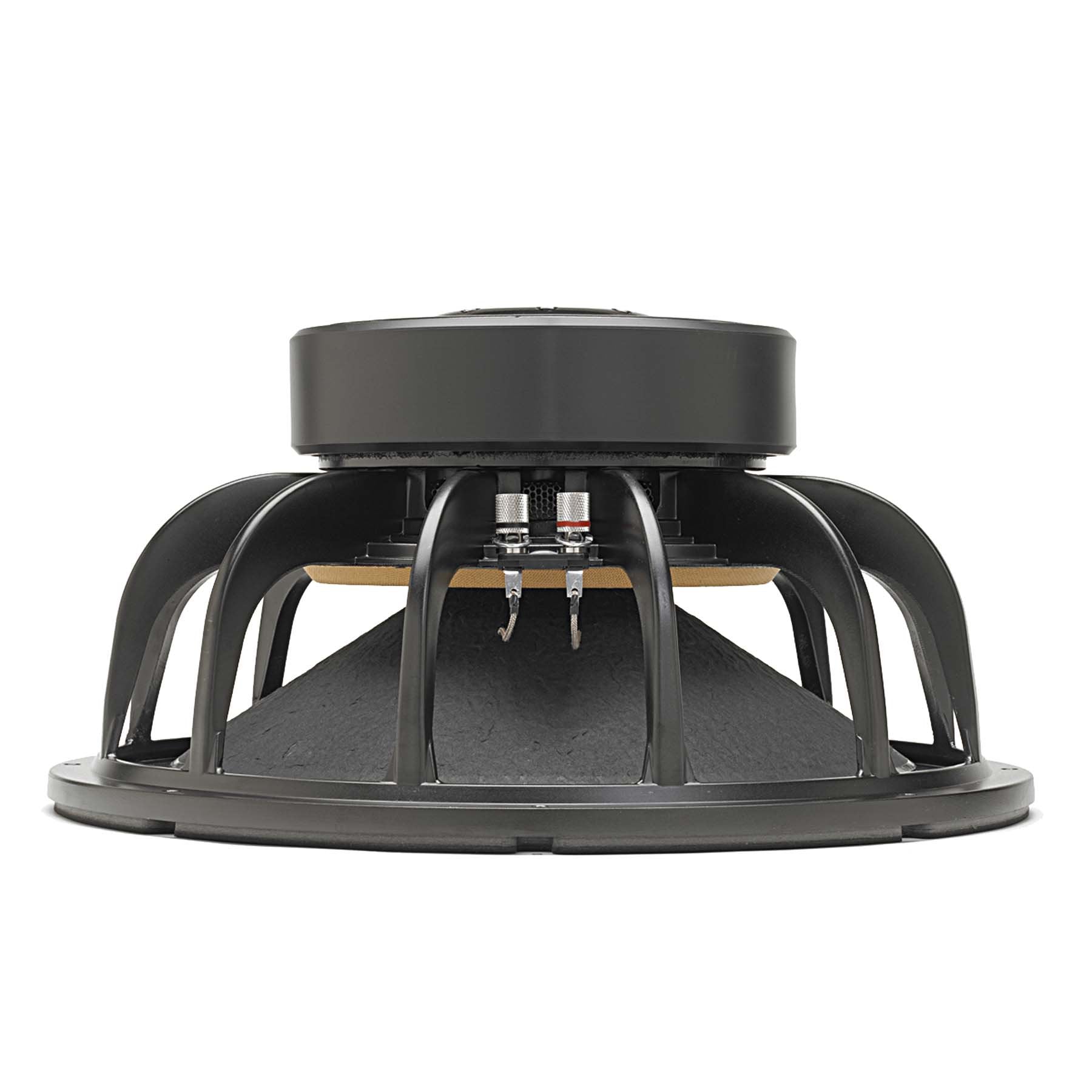

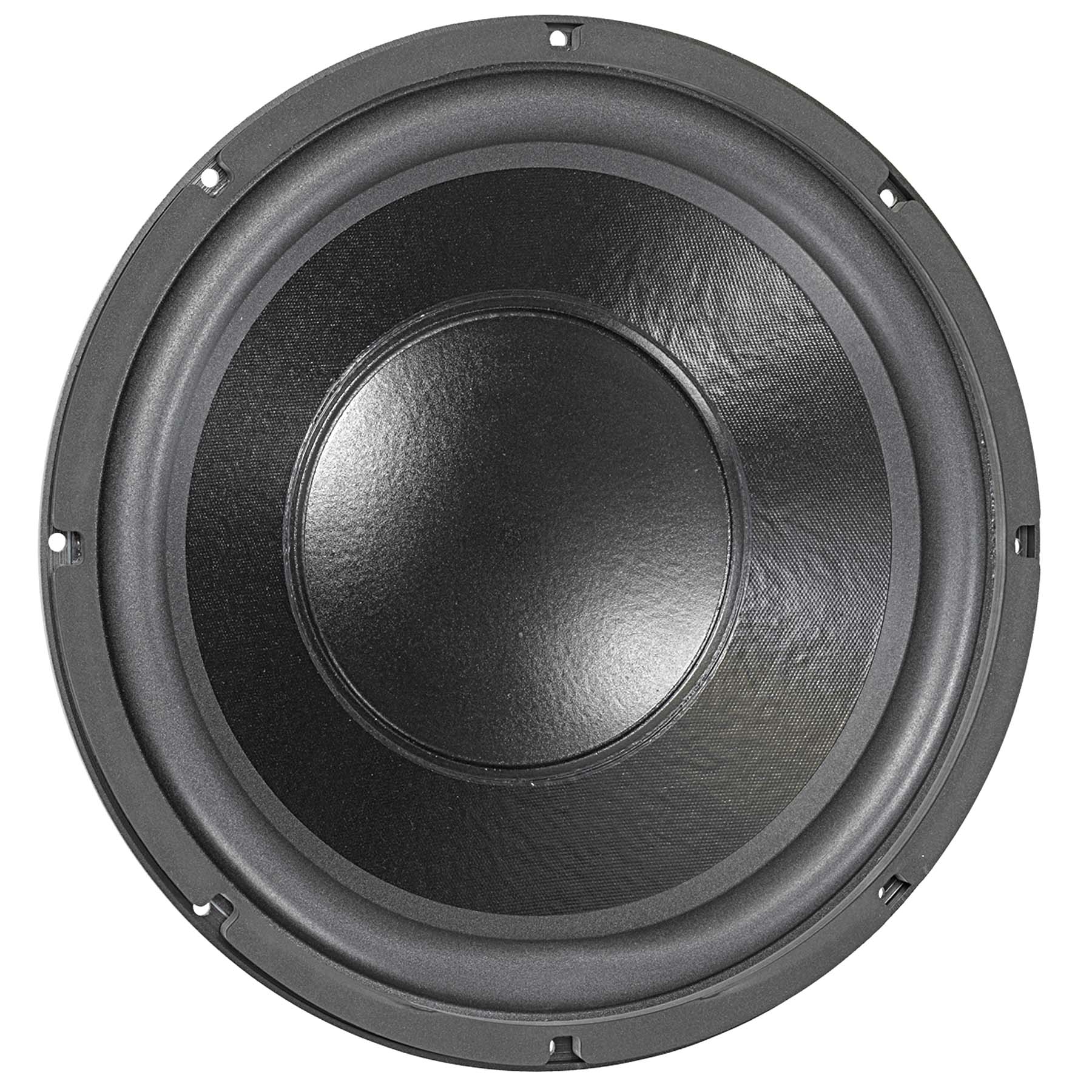

Eminence LAB 15
Eminence LAB 15 is a 15" 6 ohm LF driver rated at 600W RMS. The validated T/S data includes Fs 28Hz, Qts 0.35, Vas 103.6L, Xmax 11.8mm, sensitivity 89.9dB, plus 972cm³ Vd and 76 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £250.89.
Size
15"
Impedance
6Ω
RMS Power
600W
Sensitivity
89.9dB
88.5dBmanufacturer; using T/S-derived value (1.4dB delta).
EBP
76
Either alignment
Vd
972cm³
T/S Parameters
Valid
Fs28Hz
Qts0.35
Qes0.37
Qms5.4
Vas103.6L
Re4.9Ω
Le3.23mH
BL26.7Tm
Sd824cm²
Mms308g
Xmax11.8mm
SPL90dB
Power600W
Impedance6Ω
F Low20Hz
F High0Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£250.89
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight10.8kg
Diameter389.6mm
Overall Depth196.8mm
Cutout Diameter355.6mm
Bolt Circle Diameter373.4mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Eminence
LAB 15
15"
Best current price
£250.89
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
76%
Similarity
35% cheaper£161.93
FaitalPRO
15HP1010
15"
Lower price
Xmax9.8mm-17%
Qts0.37+6%
BL22Tm-18%
Vas107.5L+4%
Qes0.38+3%
67%
Similarity
31% cheaper£173.91
SB Audience
ROSSO-15MW500
15"
Lower price
Xmax8.4mm-29%
Qts0.33-6%
BL23.2Tm-13%
Vas121.3L+17%
Qes0.35-5%
68%
Similarity
31% cheaper£173.94
BishopSound
BDP15
15"
Lower price
Xmax12.2mm+3%
Qts0.42+20%
BL21.3Tm-20%
Vas103.4L0%
Qes0.44+19%
62%
Similarity
19% cheaper£203.94
BishopSound
BWP15/4/V2
15"
Lower price
Xmax10.3mm-13%
Qts0.42+20%
BL21.3Tm-20%
Vas102.3L-1%
Qes0.44+19%
62%
Similarity
19% cheaper£203.94
BishopSound
BWP15/8/V2
15"
Lower price
Xmax10.3mm-13%
Qts0.42+20%
BL21.3Tm-20%
Vas102.3L-1%
Qes0.44+19%
66%
Similarity
18% cheaper£205.75
FaitalPRO
15FH530
15"
Lower price
Xmax9.3mm-22%
Qts0.350%
BL20.7Tm-22%
Vas140.6L+36%
Qes0.36-3%
85%
Similarity
13% cheaper£218.02
Beyma
15LEX1000FE
15"
Lower price
Xmax11mm-7%
Qts0.34-3%
BL23.2Tm-13%
Vas116L+12%
Qes0.370%
66%
Similarity
10% cheaper£226.15
CIARE
15.00SW
15"
Lower price
Xmax14mm+19%
Qts0.41+17%
BL25Tm-6%
Vas111L+7%
Qes0.44+19%
56%
Similarity
10% cheaper£226.15
CIARE
15.00SW
15"
Lower price
Xmax13.5mm+14%
Qts0.41+17%
BL18.4Tm-31%
Vas113L+9%
Qes0.44+19%
61%
Similarity
9% cheaper£228.26
B&C
15TBX100
15"
Lower price
Xmax9mm-24%
Qts0.28-20%
BL25.5Tm-4%
Vas113L+9%
Qes0.3-19%
47%
Similarity
9% cheaper£228.26
B&C
15TBX100
15"
Lower price
Xmax9mm-24%
Qts0.27-23%
BL22.1Tm-17%
Vas129.6L+25%
Qes0.28-24%
76%
Similarity
9% cheaper£229.00
Celestion
FTR15-4080HDX
15"
Lower price
Xmax10.1mm-14%
Qts0.32-9%
BL23.1Tm-14%
Vas111.2L+7%
Qes0.36-4%
