- Net volume
- 85L
- Tuning
- 45Hz
B&C gives the volume and tuning; the port is sized for the driver when you open it.

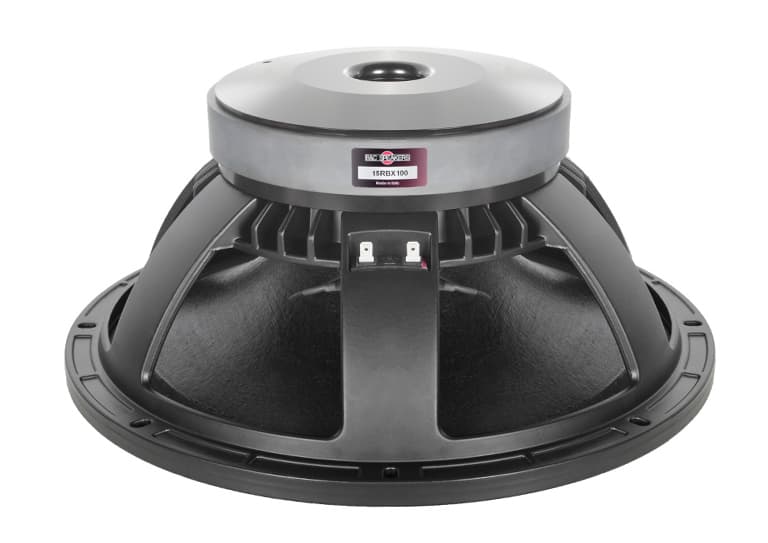

15-inch LF driver · 15RBX series · 100 mm voice coil · 1,000 W
B&C 15RBX100 4Ω
40–3000 Hz
No current price
- Fs
- 42Hz
- Xmax
- 9mm
- SPL
- 95dB
- Pe
- 1000W
- BL
- 21.3T·m
- Vd
- 817cm³
- Qts
- 0.35
- Vas
- 105L

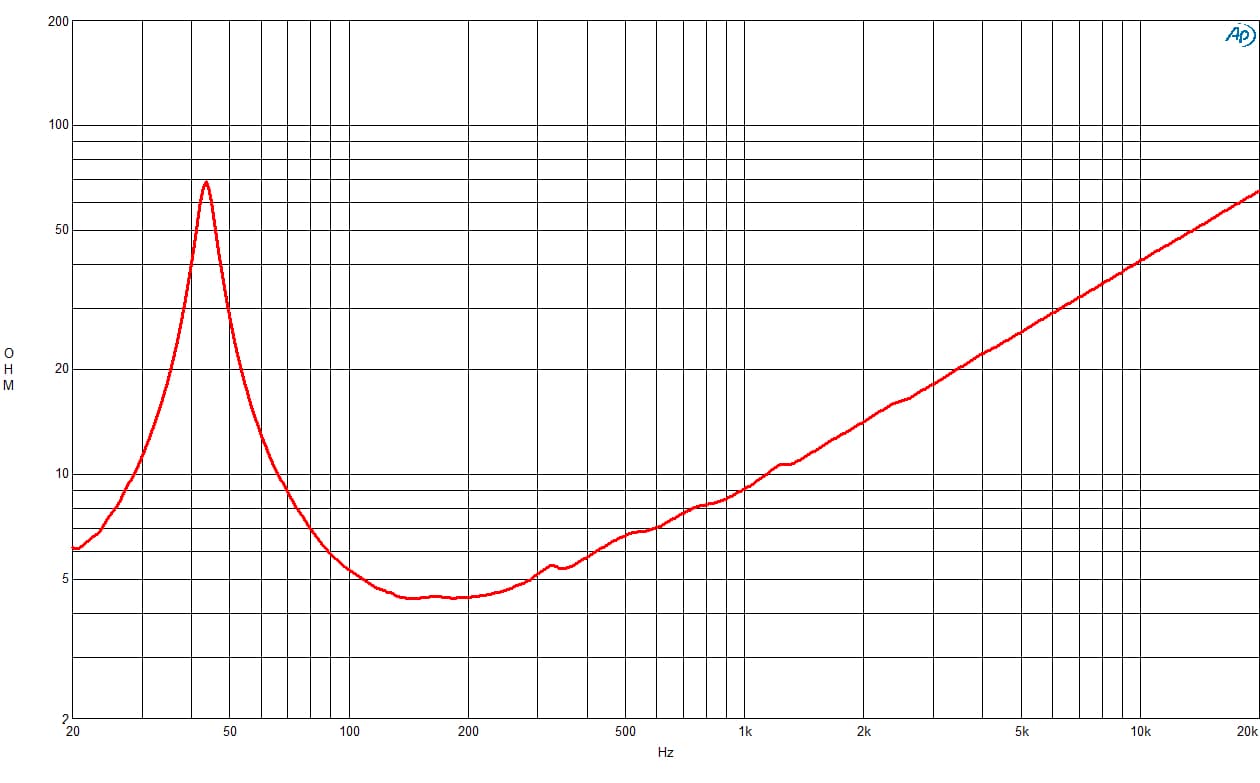

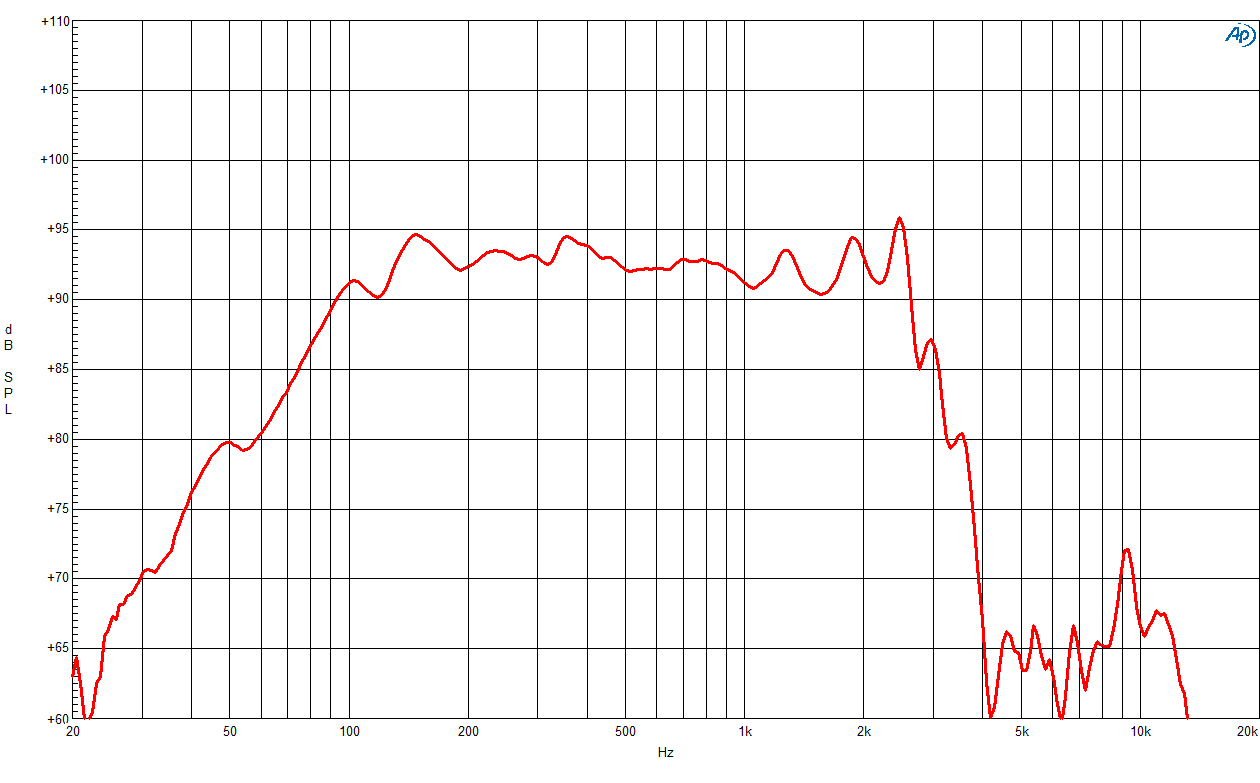

Published graphs
B&C 15RBX100 is a 15-inch 4 ohm LF driver rated at 1000 W RMS. The validated T/S data includes Fs 42 Hz, Qts 0.35, Vas 105 L, Xmax 9 mm, sensitivity 95.1 dB, plus 817 cm³ Vd and 111 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 42Hz
- Qts
- 0.35
- Qes
- 0.38
- Qms
- 6.3
- Vas
- 105L
- Re
- 3.7Ω
- Le
- 0.90mH
Motor and cone
- BL
- 21.3T·m
- Sd
- 908cm²
- Mms
- 159g
- Xmax
- 9mm
- Vd †
- 817cm³
- Voice coil
- 100mm
- Flux density
- 1.10T
Power and response
- Sensitivity †
- 95.1dB
- Manufacturer sensitivity
- 94dB
- Power
- 1000W
- Nominal power
- 1000W
- Impedance
- 4Ω
- Min. impedance
- 4.5Ω
- Range
- 40–3000Hz
- EBP †
- 111 · Leans vented
Size and mounting
- Diameter
- 393mm
- Cutout
- 354mm
- Bolt circle
- 374mm
- Depth
- 173mm
- Weight
- 10.6kg
Sensitivity shows 95.1 dB, calculated from the T/S values. B&C publishes 94.0 dB, 1.1 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else B&C lists
LF
- BL
- 21.3T·m
- Fs
- 42Hz
- Le
- 0.90mH
- Re
- 3.7Ω
- Sd
- 908cm²
- Mms
- 159g
- Qes
- 0.38
- Qms
- 6.3
- Qts
- 0.35
- SPL
- 95.1dB
- Vas
- 105L
- Xmax
- 9mm
- Power
- 1000W
- Impedance
- 4Ω
- Flux density
- 1.10T
- Sensitivity
- 94dB
- Low limit
- 40Hz
- Nominal power
- 1000W
- Calculated sensitivity †
- 95.1dB
- High limit
- 3000Hz
- Manufacturer sensitivity
- 94dB
- Min. impedance
- 4.5Ω
- Voice coil
- 100mm
- Weight
- 10.6kg
- Diameter
- 393mm
- Depth
- 173mm
- Cutout
- 354mm
- Bolt circle
- 374mm
- Bl
- 21.3 Tm
- Fs
- 42 Hz
- Le
- 0.9 mH
- Re
- 3.7 Ω
- Sd
- 908 cm² (140.74 in²)
- Ebp
- 111 Hz
- Mms
- 159 g
- Qes
- 0.38
- Qms
- 6.3
- Qts
- 0.35
- Vas
- 105 dm³ (3.71 ft³)
- Η0
- 2.1 %
- Cone
- RCK15RBX1004
- Xmax
- 9 mm
- Xvar
- 10 mm
- Depth
- 173 mm (6.81 in)
- Spider
- Double Silicone
- Cone shape
- Curvilinear
- Net weight
- 10.6 kg (23.37 lb)
- Pole design
- T-Pole
- Sensitivity
- 94 dB
- Flux density
- 1.1 T
- Shipping box
- 425x425x224 mm (16.73x16.73x8.82 in)
- Winding depth
- 25 mm (1 in)
- Shipping units
- 1 pcs
- Surround shape
- Triple Roll
- Former material
- Glass Fibre
- Frequency range
- 40 Hz - 3000 Hz
- Magnet material
- Ferrite
- Shipping weight
- 11.9 kg (26.24 lb)
- Nominal diameter
- 380 mm (15 in)
- Overall diameter
- 393 mm (15.47 in)
- Winding material
- Copper
- Minimum impedance
- 4.5 Ω
- Nominal impedance
- 4 Ω
- Magnetic gap depth
- 11 mm (0.43 in)
- Recommended tuning
- 45 Hz
- Voice coil diameter
- 100 mm (4 in)
- Bolt circle diameter
- 374 mm (14.72 in)
- Recommended enclosure
- 85 dm³ (3 ft³)
- Woofer cone treatment
- TWP Waterproof Both Sides
- Baffle cutout diameter
- 354 mm (13.94 in)
- Nominal power handling
- 1000 W
- Continuous power handling
- 2000 W
- Flange and gasket thickness
- 16 mm (0.63 in)
- Air volume occupied by driver
- 5 dm³ (0.18 ft³)
B&C’s suggested box
From B&C’s 15RBX100 page
Open this box in 00 Simulator
Modelling the box in 00 Simulator…
03
Compare
Same-size drivers, compared with the 15RBX100. Clear differences are green when better and red when worse.
This driver15RBX100
Best price
–
Fs
42 Hz
Qts
0.35
Vas
105 L
BL
21.3 T·m
Xmax
9 mm
Sensitivity
95.1 dB
Power
1000 W
SB AudienceROSSO-15W400
£134.56Fs44 Hz +5%
Qts0.33 −6%
Vas140.1 L +33%, worse
BL21.5 T·m –
Xmax8.3 mm −8%
Sensitivity97.5 dB +2.4, better
FaitalPRO15HP1010
£161.93Fs40 Hz −5%
Qts0.37 +6%
Vas107.5 L –
BL22 T·m +3%
Xmax9.8 mm +8%
Sensitivity94.6 dB −0.5
REDCATT15FIND
£168.88Fs42 Hz –
Qts0.36 –
Vas96.4 L −8%
BL24.6 T·m +15%, better
Xmax6.8 mm −25%, worse
Sensitivity94.9 dB –
RCFL15P540
£173.78Fs50 Hz +19%, worse
Qts0.39 +11%, worse
Vas100 L −5%
BL21.4 T·m –
Xmax7 mm −22%, worse
Sensitivity96.9 dB +1.8
SB AudienceROSSO-15MW500
£173.91Fs42 Hz –
Qts0.33 −6%
Vas121.3 L +16%, worse
BL23.2 T·m +9%
Xmax8.4 mm −7%
Sensitivity96.1 dB +1
REDCATT15FPM
£185.82Fs41 Hz –
Qts0.36 –
Vas134.9 L +28%, worse
BL21.3 T·m –
Xmax4.5 mm −50%, worse
Sensitivity95.9 dB +0.8
FaitalPRO15FH530
£201.91Fs39 Hz −7%
Qts0.35 –
Vas140.6 L +34%, worse
BL20.7 T·m –
Xmax9.3 mm –
Sensitivity95.7 dB +0.6
B&C15NDL88
£227.25Fs45 Hz +7%
Qts0.34 –
Vas126 L +20%, worse
BL20.1 T·m −6%
Xmax8 mm −11%, worse
Sensitivity97.1 dB +2, better
Beyma15LEX1000FE
£228.06Fs41 Hz –
Qts0.34 –
Vas116 L +10%, worse
BL23.2 T·m +9%
Xmax11 mm +22%, better
Sensitivity95.4 dB –
Beyma15MC700ND
£228.79Fs49 Hz +17%, worse
Qts0.31 −11%, better
Vas105 L –
BL22.6 T·m +6%
Xmax7 mm −22%, worse
Sensitivity97.6 dB +2.5, better
PRV Audio15W1800
£232.28Fs45 Hz +8%
Qts0.42 +20%, worse
Vas100.4 L −4%
BL23.2 T·m +9%
Xmax9.5 mm +6%
Sensitivity95.4 dB –
Sica15 PF 3
£236.50Fs45 Hz +7%
Qts0.31 −11%, better
Vas117.6 L +12%, worse
BL21.9 T·m +3%
Xmax8 mm −11%, worse
Sensitivity97.1 dB +2, better
Sica15 PFS 4
£269.49Fs39 Hz −7%
Qts0.34 –
Vas103.9 L –
BL24.2 T·m +14%, better
Xmax8 mm −11%, worse
Sensitivity94.2 dB −0.9
Beyma15LEX1000ND
£294.86Fs41 Hz –
Qts0.37 +6%
Vas113 L +8%
BL21.9 T·m –
Xmax10 mm +11%, better
Sensitivity94.8 dB –
Sica15 S 4 PL
£303.29Fs40 Hz −6%
Qts0.32 −9%
Vas127.6 L +22%, worse
BL22.5 T·m +6%
Xmax10 mm +11%, better
Sensitivity95.8 dB +0.7
Eighteen Sound15NCX910
£497.18Fs55 Hz +31%, worse
Qts0.33 −6%
Vas107 L –
BL21 T·m –
Xmax7 mm −22%, worse
Sensitivity99.2 dB +4.1, better
Sica15 PNS 4
No current priceFs37 Hz −11%, better
Qts0.35 –
Vas116.3 L +11%, worse
BL22.7 T·m +7%
Xmax9 mm –
Sensitivity94 dB −1.1
CelestionFTR15-4080HDX
No current priceFs40 Hz −5%
Qts0.32 −9%
Vas111.2 L +6%
BL23.1 T·m +8%
Xmax10.1 mm +12%, better
Sensitivity95 dB –
Eighteen Sound15NCX910BE
No current priceFs55 Hz +31%, worse
Qts0.33 −6%
Vas107 L –
BL21 T·m –
Xmax7 mm −22%, worse
Sensitivity99.2 dB +4.1, better
Eighteen Sound15NCX910N
No current priceFs55 Hz +31%, worse
Qts0.33 −6%
Vas107 L –
BL21 T·m –
Xmax7 mm −22%, worse
Sensitivity99.2 dB +4.1, better
P.Audio15FT-115XB
No current priceFs35 Hz −17%, better
Qts0.33 −6%
Vas103.8 L –
BL26.8 T·m +26%, better
Xmax9.5 mm +6%
Sensitivity93.2 dB −1.9
P.Audio15NX-76MB
No current priceFs40 Hz −5%
Qts0.34 –
Vas115.6 L +10%, worse
BL21.4 T·m –
Xmax4.8 mm −47%, worse
Sensitivity95.3 dB –
Eighteen Sound15TLW3000
No current priceFs44 Hz +5%
Qts0.39 +11%, worse
Vas80 L −24%, better
BL18 T·m −15%, worse
Xmax9 mm –
Sensitivity94.2 dB −0.9
Oberton15NCX
No current priceFs44 Hz +4%
Qts0.36 –
Vas138.4 L +32%, worse
BL18.6 T·m −13%, worse
Xmax7.8 mm −14%, worse
Sensitivity96.9 dB +1.8
CelestionTSQ1535
No current priceFs50 Hz +19%, worse
Qts0.40 +13%, worse
Vas94.0 L −10%, better
BL20.6 T·m −3%
Xmax8 mm −11%, worse
Sensitivity96.4 dB +1.3
Oberton15MB35
No current priceFs48 Hz +14%, worse
Qts0.34 −4%
Vas115.1 L +10%
BL20.1 T·m −6%
Xmax6.8 mm −25%, worse
Sensitivity97.6 dB +2.5, better
Oberton15NXL701
No current priceFs43 Hz +3%
Qts0.30 −14%, better
Vas127.1 L +21%, worse
BL21.7 T·m –
Xmax9.3 mm –
Sensitivity97.3 dB +2.2, better
Sica15 N 3 PL
No current priceFs47 Hz +12%, worse
Qts0.37 +6%
Vas140.4 L +34%, worse
BL18.4 T·m −13%, worse
Xmax10 mm +11%, better
Sensitivity98 dB +2.9, better
PeerlessNCP-1540R01-08
No current priceFs54 Hz +29%, worse
Qts0.32 −9%
Vas86.5 L −18%, better
BL23.9 T·m +12%, better
Xmax8.2 mm −9%
Sensitivity98.2 dB +3.1, better
P.Audio15NT-100SW
No current priceFs38 Hz −10%
Qts0.43 +23%, worse
Vas115.7 L +10%, worse
BL21.2 T·m –
Xmax9 mm –
Sensitivity93.4 dB −1.7
