Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespMedia
Auto-advancing
Overview
LF DriverROSSO series
SB Audience
SB Audience ROSSO-15MW500
SB Audience ROSSO-15MW500 is a 15" 8 ohm LF driver rated at 500W RMS. The validated T/S data includes Fs 42Hz, Qts 0.33, Vas 121.3L, Xmax 8.4mm, sensitivity 96.1dB, plus 725cm³ Vd and 120 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £173.91.
Size
15"
Impedance
8Ω
RMS Power
500W
Sensitivity
96.1dB
EBP
120
Vented alignment
Vd
725cm³
T/S Parameters
Valid
Fs42Hz
Qts0.33
Qes0.35
Qms9.4
Vas121.3L
Re5.6Ω
Le1.37mH
BL23.2Tm
Sd866cm²
Mms127g
Xmax8.4mm
SPL96dB
Power500W
Impedance8Ω
Min Impedance5.6Ω
F Low42Hz
F High3700Hz
Voice Coil99mm
Flux Density1.16T
Pricing & availability
Price definitionsPrice movement
Best current price
£173.91
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

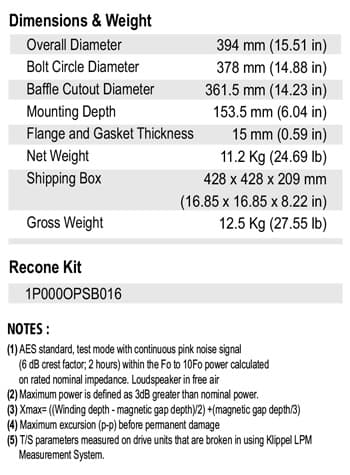

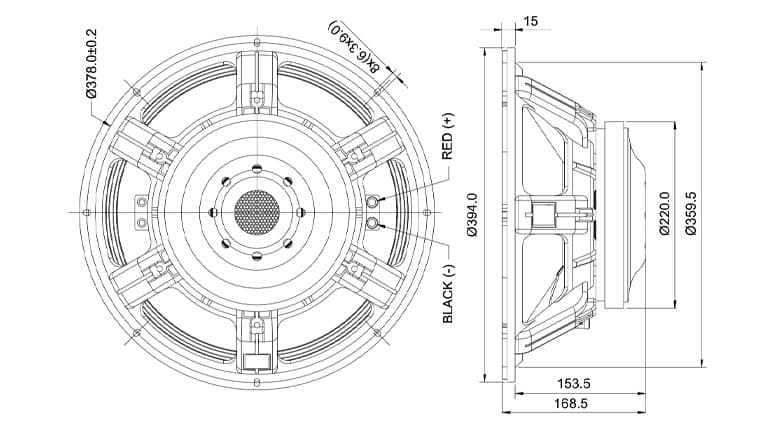

Dimensions & Physical
Weight11.2kg
Diameter394.0mm
Cutout Diameter361.5mm
Bolt Circle Diameter378.0mm
