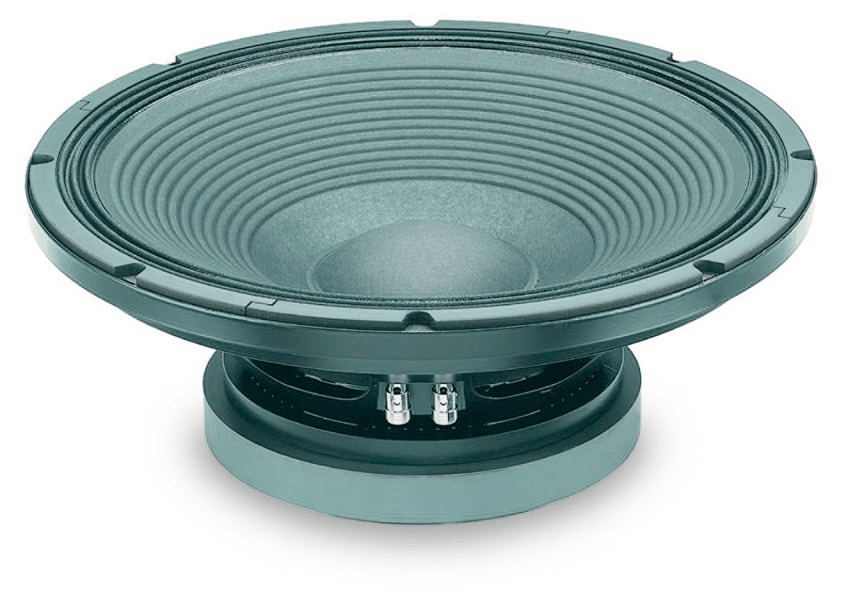

Eighteen Sound 15W1301 8Ω
8 Ω · 39–2800 Hz
No current price
- Fs
- 48Hz
- Xmax
- 6mm
- SPL
- 98dB
- Pe
- 800W
- BL
- 22.3T·m
- Vd
- 540cm³
- Qts
- 0.32
- Vas
- 123L

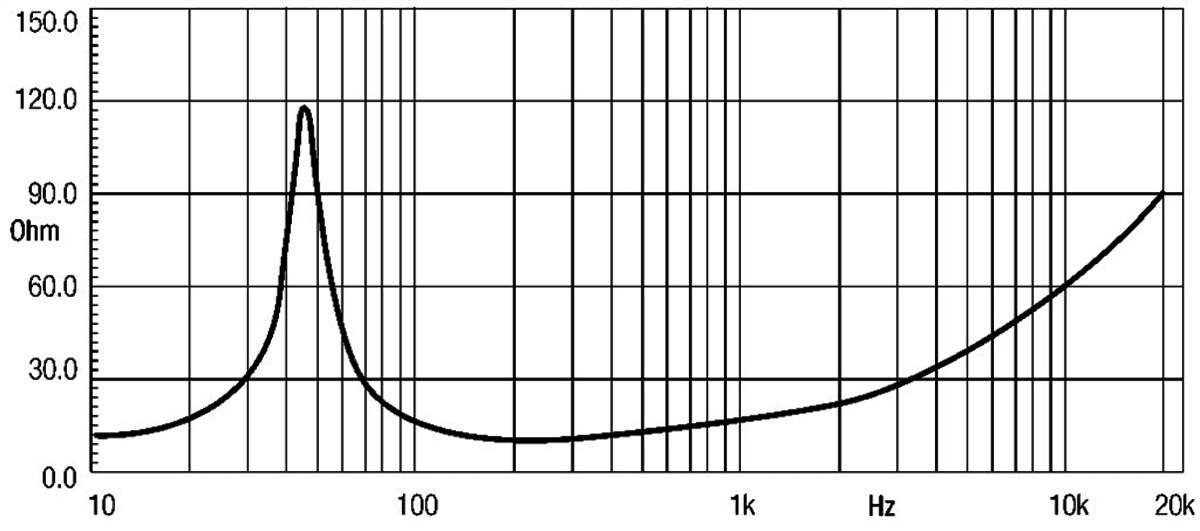

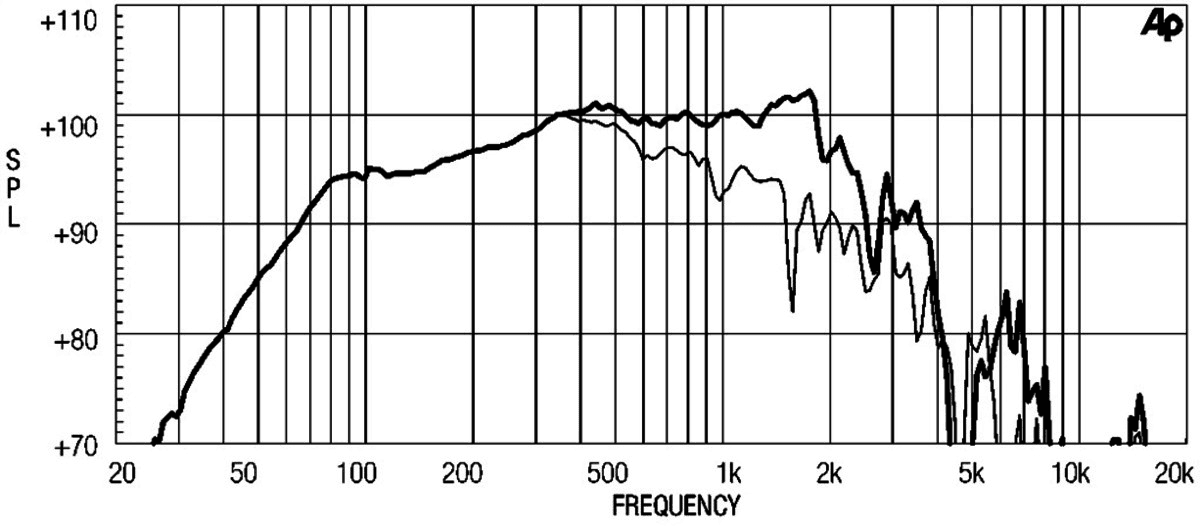

Published graphs
Eighteen Sound 15W1301 is a 15-inch 8 ohm LF driver rated at 800 W RMS. The validated T/S data includes Fs 48 Hz, Qts 0.32, Vas 123 L, Xmax 6 mm, sensitivity 97.7 dB, plus 540 cm³ Vd and 130 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 48Hz
- Qts
- 0.32
- Qes
- 0.37
- Qms
- 8.5
- Vas
- 123L
- Re
- 5.5Ω
- Le
- 1.55mH
Motor and cone
- BL
- 22.3T·m
- Sd
- 900cm²
- Mms
- 99g
- Xmax
- 6mm
- Vd †
- 540cm³
Power and response
- Sensitivity †
- 97.7dB
- Manufacturer sensitivity
- 99dB
- Power
- 800W
- Nominal power
- 800W
- Impedance
- 8Ω
- Range
- 39–2800Hz
- EBP †
- 130 · Leans vented
Size and mounting
- Diameter
- 387mm
- Cutout
- 353mm
- Bolt circle
- 370mm
- Depth
- 161mm
- Weight
- 12.3kg
Other published values
- Power Program
- 1200
Sensitivity shows 97.7 dB, calculated from the T/S values. Eighteen Sound publishes 99.0 dB, 1.3 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Eighteen Sound lists
LF · Primary · 15″
- BL
- 22.3T·m
- Fs
- 48Hz
- Le
- 1.55mH
- Re
- 5.5Ω
- Sd
- 900cm²
- Mms
- 99g
- Qes
- 0.37
- Qms
- 8.5
- Qts
- 0.32
- SPL
- 97.7dB
- Vas
- 123L
- Xmax
- 6mm
- Power
- 800W
- Impedance
- 8Ω
- Sensitivity
- 99dB
- Low limit
- 39Hz
- Nominal power
- 800W
- Power Program
- 1200
- Calculated sensitivity †
- 97.7dB
- High limit
- 2800Hz
- Manufacturer sensitivity
- 99dB
- Weight
- 12.3kg
- Diameter
- 387mm
- Depth
- 161mm
- Cutout
- 353mm
- Bolt circle
- 370mm
