Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespSica 15 FE 3 CP 8Ω
LF DriverMedia
Auto-advancing
Overview
LF Driver
Sica

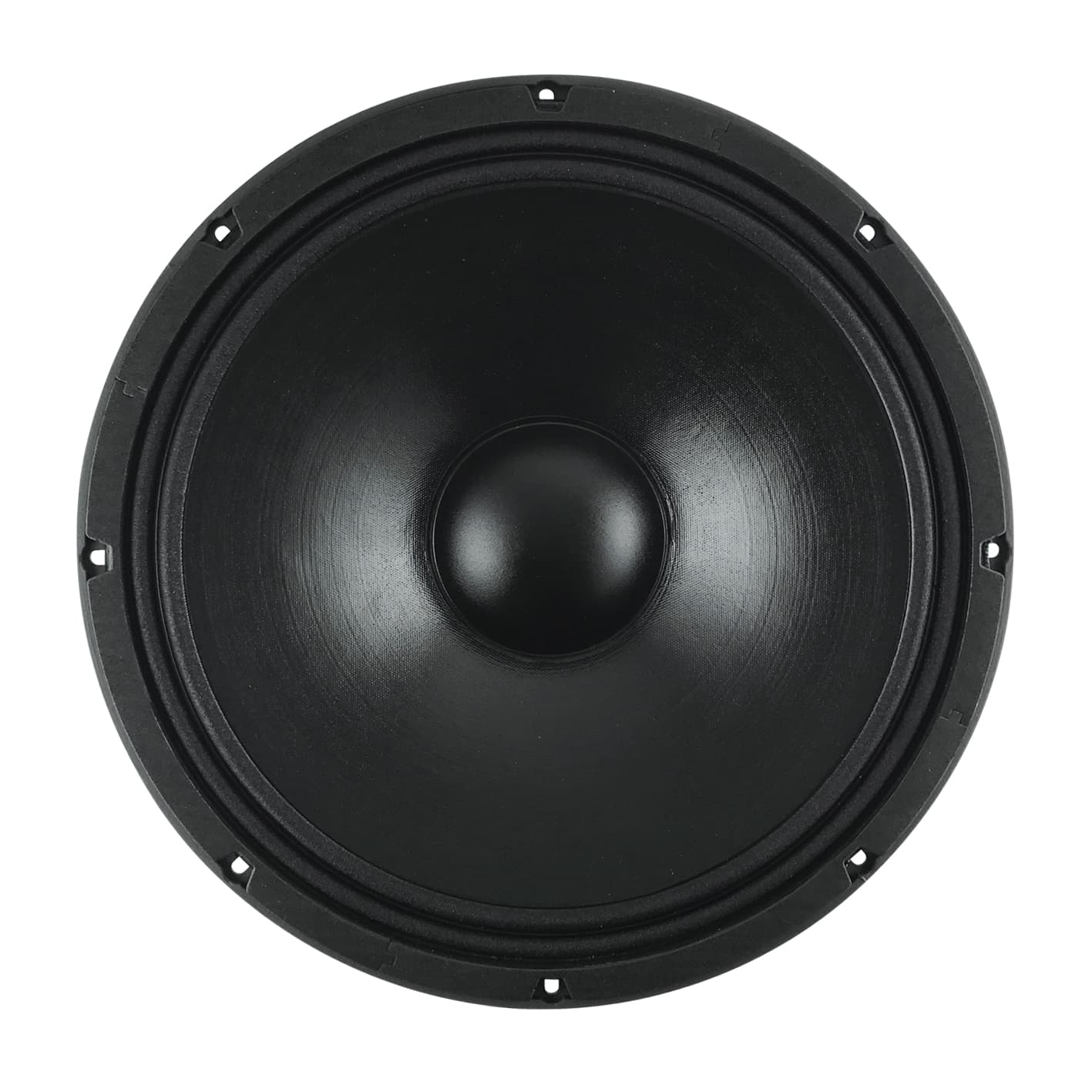

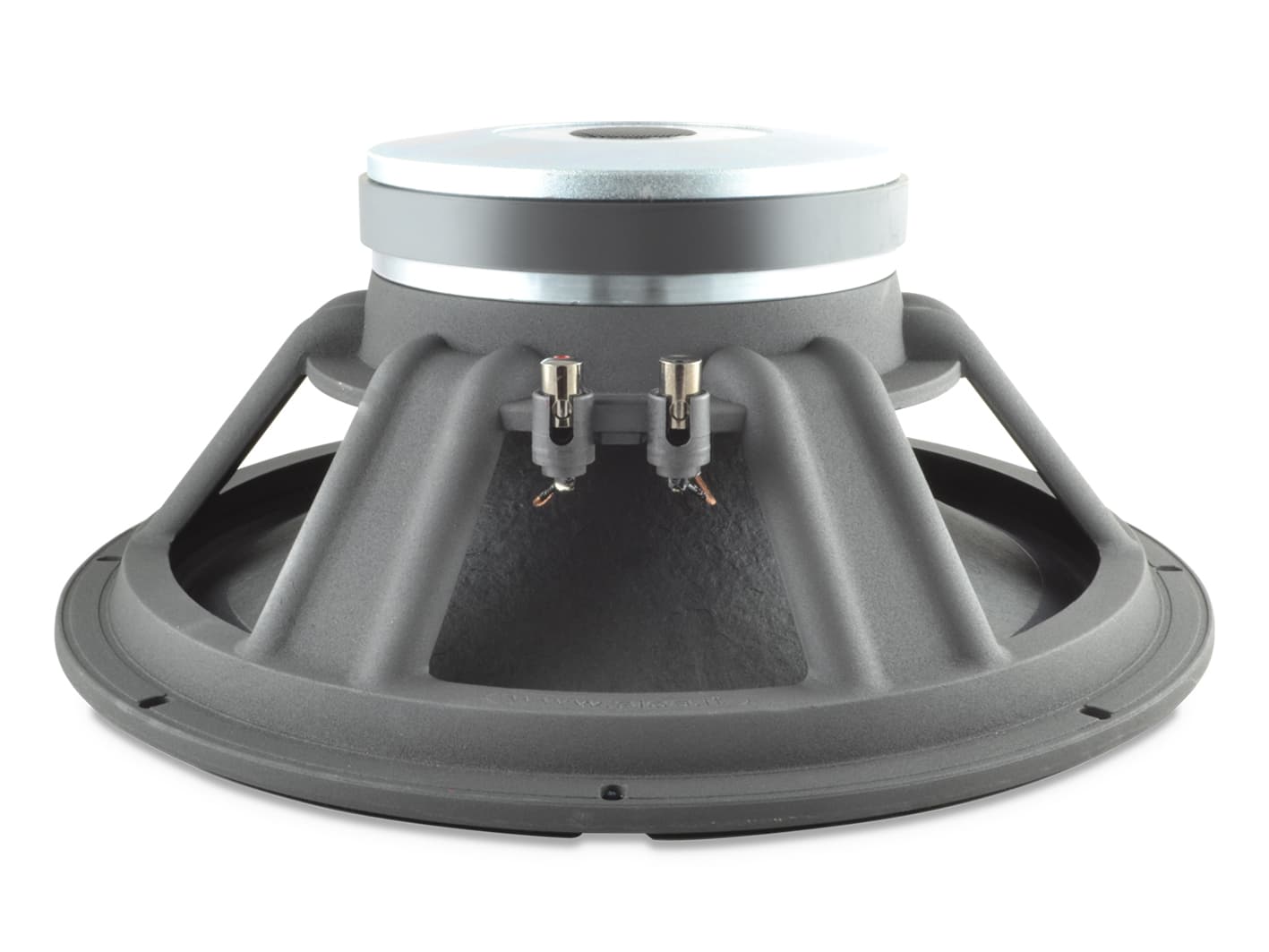

Sica 15 FE 3 CP
Sica 15 FE 3 CP is a 15" 8 ohm LF driver rated at 400W RMS. The validated T/S data includes Fs 40Hz, Qts 0.33, Vas 170.4L, Xmax 5.5mm, sensitivity 97.2dB, plus 470cm³ Vd and 118 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
400W
Sensitivity
97.2dB
99.4dBmanufacturer; using T/S-derived value (2.2dB delta).
EBP
118
Vented alignment
Vd
470cm³
T/S Parameters
Valid
Fs40Hz
Qts0.33
Qes0.34
Qms9.5
Vas170.4L
Re5.2Ω
Le1.22mH
BL19.1Tm
Sd855cm²
Mms91g
Xmax5.5mm
SPL97dB
Power400W
Impedance8Ω
Voice Coil75mm
Flux Density1.18T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight8.1kg
Diameter388.0mm
Overall Depth161.0mm
Cutout Diameter355.0mm
Bolt Circle Diameter371.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Sica
15 FE 3 CP
15"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
89%
Similarity
Oberton
15XL400
15"
Xmax5.3mm-5%
Qts0.34+2%
BL18.9Tm-1%
Vas140L-18%
Qes0.35+3%
88%
Similarity
£175.00
Eminence
KAPPALITE 3015
15"
Xmax5.9mm+7%
Qts0.34+3%
BL18.6Tm-3%
Vas153L-10%
Qes0.36+6%
88%
Similarity
£170.21
B&C
15CLA76
15"
Xmax5.5mm0%
Qts0.3-9%
BL19.8Tm+4%
Vas176L+3%
Qes0.31-9%
86%
Similarity
£216.43
BMS
15N620
15"
Xmax5.5mm0%
Qts0.35+6%
BL20.6Tm+8%
Vas154L-10%
Qes0.37+9%
83%
Similarity
£310.24
Oberton
15NMB35
15"
Xmax6.8mm+23%
Qts0.34+2%
BL18.5Tm-3%
Vas177.5L+4%
Qes0.35+2%
80%
Similarity
BMS
15CN680
15"
Xmax5.5mm0%
Qts0.36+9%
BL20.6Tm+8%
Vas137L-20%
Qes0.38+12%
80%
Similarity
£384.52
BMS
15CN682
15"
Xmax5.5mm0%
Qts0.36+9%
BL20.6Tm+8%
Vas137L-20%
Qes0.38+12%
80%
Similarity
P.Audio
P150/2227
15"
Xmax5.5mm0%
Qts0.34+3%
BL22.5Tm+18%
Vas117.9L-31%
Qes0.35+3%
79%
Similarity
£173.41
Eighteen Sound
15MB700
15"
Xmax5.5mm0%
Qts0.29-12%
BL17.6Tm-8%
Vas202L+19%
Qes0.31-9%
78%
Similarity
Beyma
15CXA400ND
15"
Xmax6mm+9%
Qts0.36+9%
BL19Tm-1%
Vas196L+15%
Qes0.39+15%
78%
Similarity
£470.84
Eighteen Sound
15NCX750H
15"
Xmax5.5mm0%
Qts0.37+12%
BL18.5Tm-3%
Vas141L-17%
Qes0.4+18%
78%
Similarity
£162.00
Eminence
KAPPA-15LFA
15"
Xmax5.5mm0%
Qts0.38+15%
BL18.6Tm-3%
Vas159L-7%
Qes0.41+21%
