Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespCelestion FTX1530 8Ω
LF DriverMedia
Auto-advancing
Overview
LF DriverFTX1530 series
Celestion

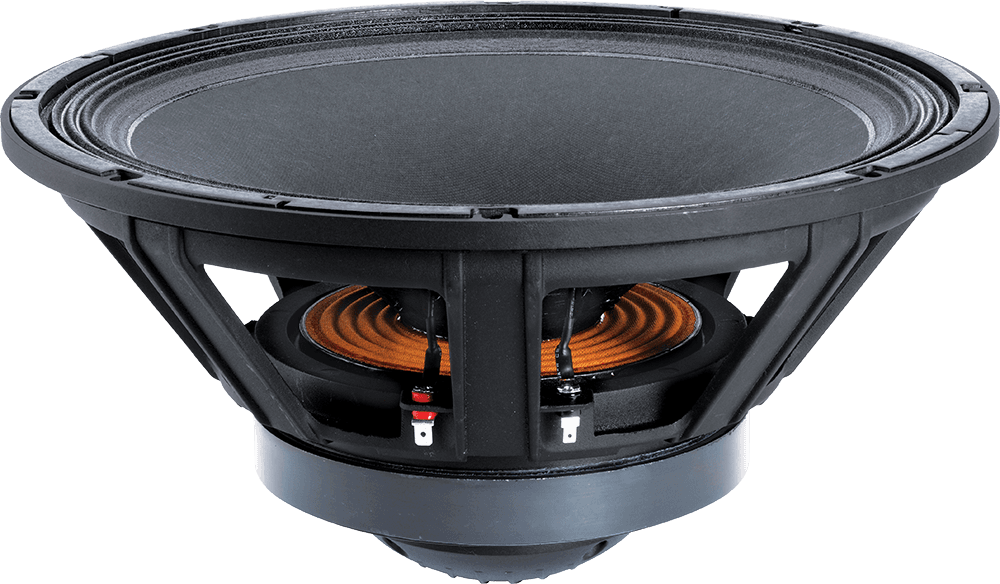

Celestion FTX1530
Celestion FTX1530 is a 15" 8 ohm LF driver rated at 75W RMS. The validated T/S data includes Fs 43Hz, Qts 0.28, Vas 172.1L, Xmax 6mm, sensitivity 98.5dB, plus 513cm³ Vd and 143 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
75W
Sensitivity
98.5dB
106.5dBmanufacturer; using T/S-derived value (8.0dB delta).
EBP
143
Vented alignment
Vd
513cm³
T/S Parameters
Valid
Fs43Hz
Qts0.28
Qes0.30
Qms3.8
Vas172.1L
Re5.4Ω
Le0.82mH
BL20.2Tm
Sd855cm²
Mms84g
Xmax6.0mm
SPL99dB
Power75W
Impedance8Ω
Voice Coil75mm
Pricing & availability
Price definitionsVendor offers
1 vendorleanaudio
Updated 11 Sept 2026· 8Ω
Source: inc VAT · 20%
£270.00
inc VAT
Back order
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight6.5kg
Diameter387.0mm
Overall Depth176.0mm
Cutout Diameter351.0mm
Bolt Circle Diameter375.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Celestion
FTX1530
15"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
100%
Similarity
Monacor
FTX1530/8
15"
Xmax6mm0%
Qts0.280%
BL20.2Tm0%
Vas172.1L0%
Qes0.30%
88%
Similarity
Sica
15 K 3 PL
15"
Xmax6.5mm+8%
Qts0.27-2%
BL21.4Tm+6%
Vas166.1L-3%
Qes0.28-6%
87%
Similarity
Eighteen Sound
15ND730
15"
Xmax6.5mm+8%
Qts0.29+5%
BL21Tm+4%
Vas156L-9%
Qes0.3+1%
87%
Similarity
£170.21
B&C
15CLA76
15"
Xmax5.5mm-8%
Qts0.3+9%
BL19.8Tm-2%
Vas176L+2%
Qes0.31+4%
86%
Similarity

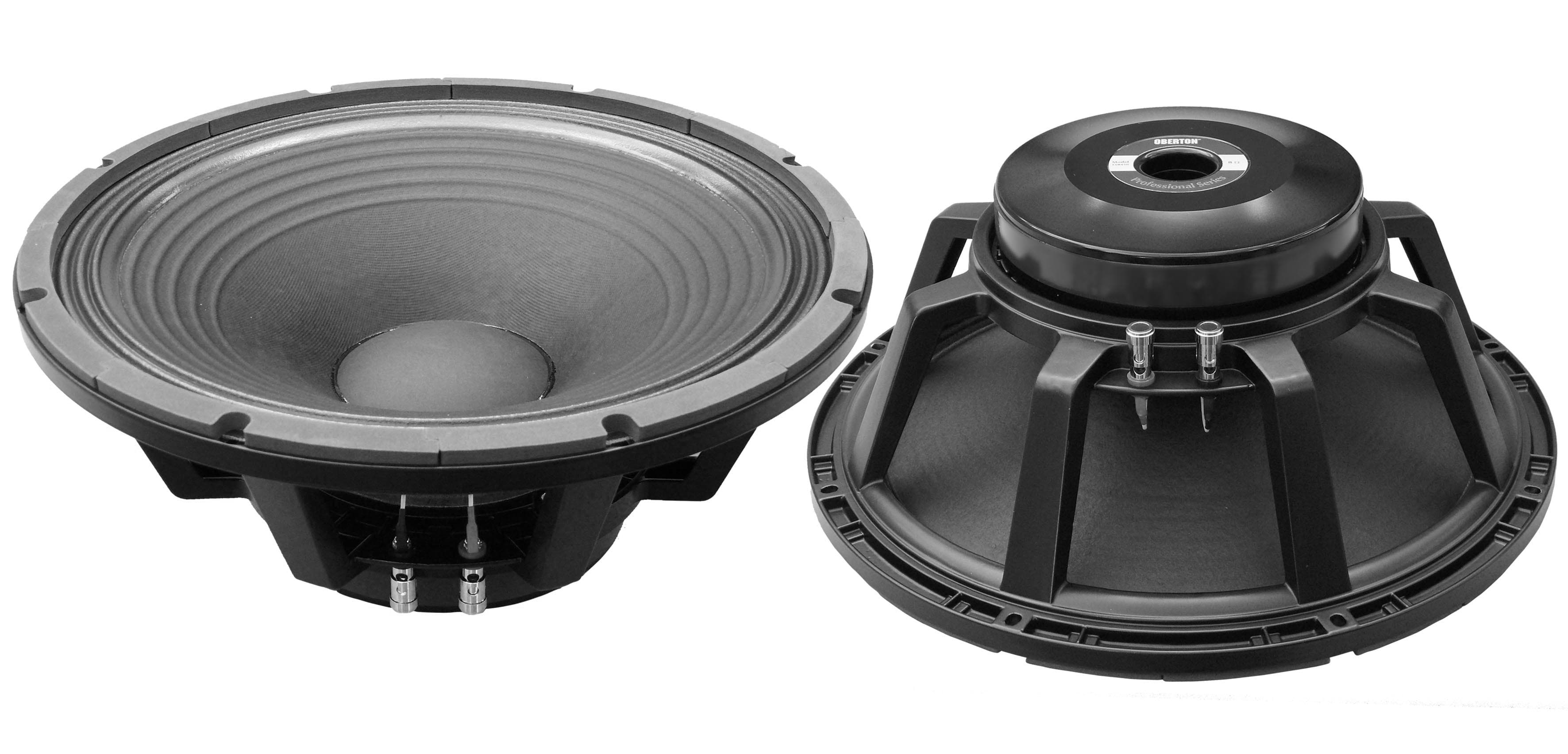

Oberton
15B450 / 15B450A / 15B450A2
15"
Xmax6.8mm+13%
Qts0.29+4%
BL20.4Tm+1%
Vas146.8L-15%
Qes0.29-1%
82%
Similarity
Beyma
115XA38ND8
15"
Xmax6mm0%
Qts0.3+9%
BL20.4Tm+1%
Vas238L+38%
Qes0.31+4%
81%
Similarity
£396.97
B&C
15CXN76
15"
Xmax6mm0%
Qts0.28+1%
BL17.8Tm-12%
Vas246L+43%
Qes0.3+1%
81%
Similarity
£399.49
B&C
15HCX76
15"
Xmax6mm0%
Qts0.28+1%
BL17.8Tm-12%
Vas246L+43%
Qes0.3+1%
81%
Similarity
£259.50
Eighteen Sound
15MB1000
15"
Xmax6mm0%
Qts0.31+12%
BL21Tm+4%
Vas132.5L-23%
Qes0.32+8%
81%
Similarity
£210.00

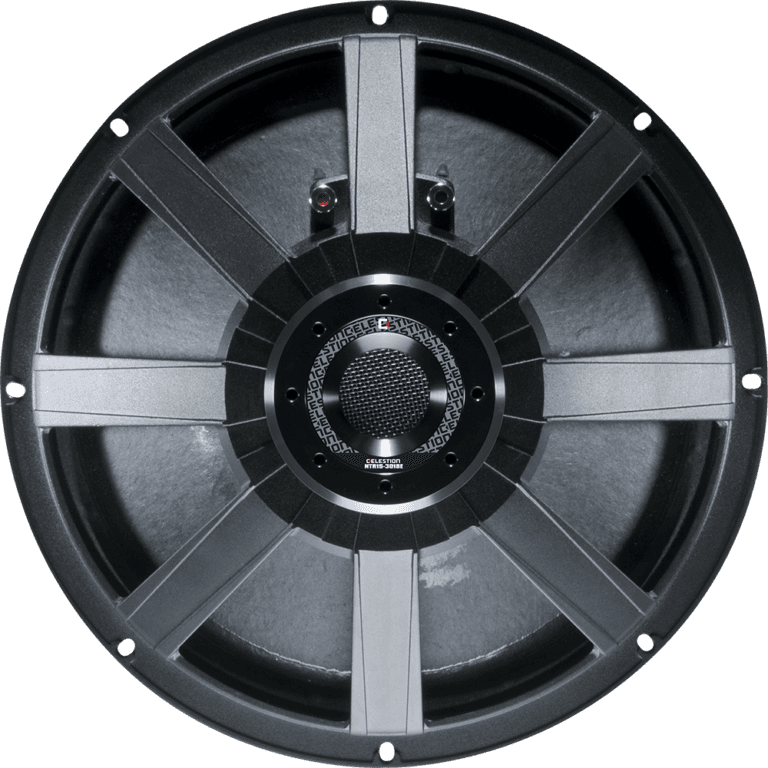

Celestion
NTR15-3018E
15"
Xmax5mm-17%
Qts0.28+3%
BL21.1Tm+5%
Vas207.3L+20%
Qes0.3+1%
81%
Similarity
Eighteen Sound
15NMB420
15"
Xmax6.5mm+8%
Qts0.29+5%
BL19Tm-6%
Vas225L+31%
Qes0.3+1%
80%
Similarity
£173.41
Eighteen Sound
15MB700
15"
Xmax5.5mm-8%
Qts0.29+5%
BL17.6Tm-13%
Vas202L+17%
Qes0.31+4%
