BMS 15S320 8Ω
8 Ω · 40–2500 Hz
£208.72
SteadyLean Audio · 2 in stock · All 1 offer
- Fs
- 41Hz
- Xmax
- 4.5mm
- SPL
- 98dB
- Pe
- 500W
- BL
- 23.3T·m
- Vd
- 396cm³
- Qts
- 0.28
- Vas
- 154L
BMS 15S320 is a 15-inch 8 ohm LF driver rated at 500 W RMS. The validated T/S data includes Fs 41 Hz, Qts 0.28, Vas 154 L, Xmax 4.5 mm, sensitivity 97.7 dB, plus 396 cm³ Vd and 141 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £208.72.
The published T/S values agree with each other
Thiele/Small
- Fs
- 41Hz
- Qts
- 0.28
- Qes
- 0.29
- Qms
- 5
- Vas
- 154L
- Re
- 5.7Ω
- Le
- 0.80mH
Motor and cone
- BL
- 23.3T·m
- Sd
- 880cm²
- Mms
- 109g
- Xmax
- 4.5mm
- Vd †
- 396cm³
- Voice coil
- 77mm
Power and response
- Sensitivity †
- 97.7dB
- Manufacturer sensitivity
- 98dB
- Power
- 500W
- Impedance
- 8Ω
- Range
- 40–2500Hz
- EBP †
- 141 · Leans vented

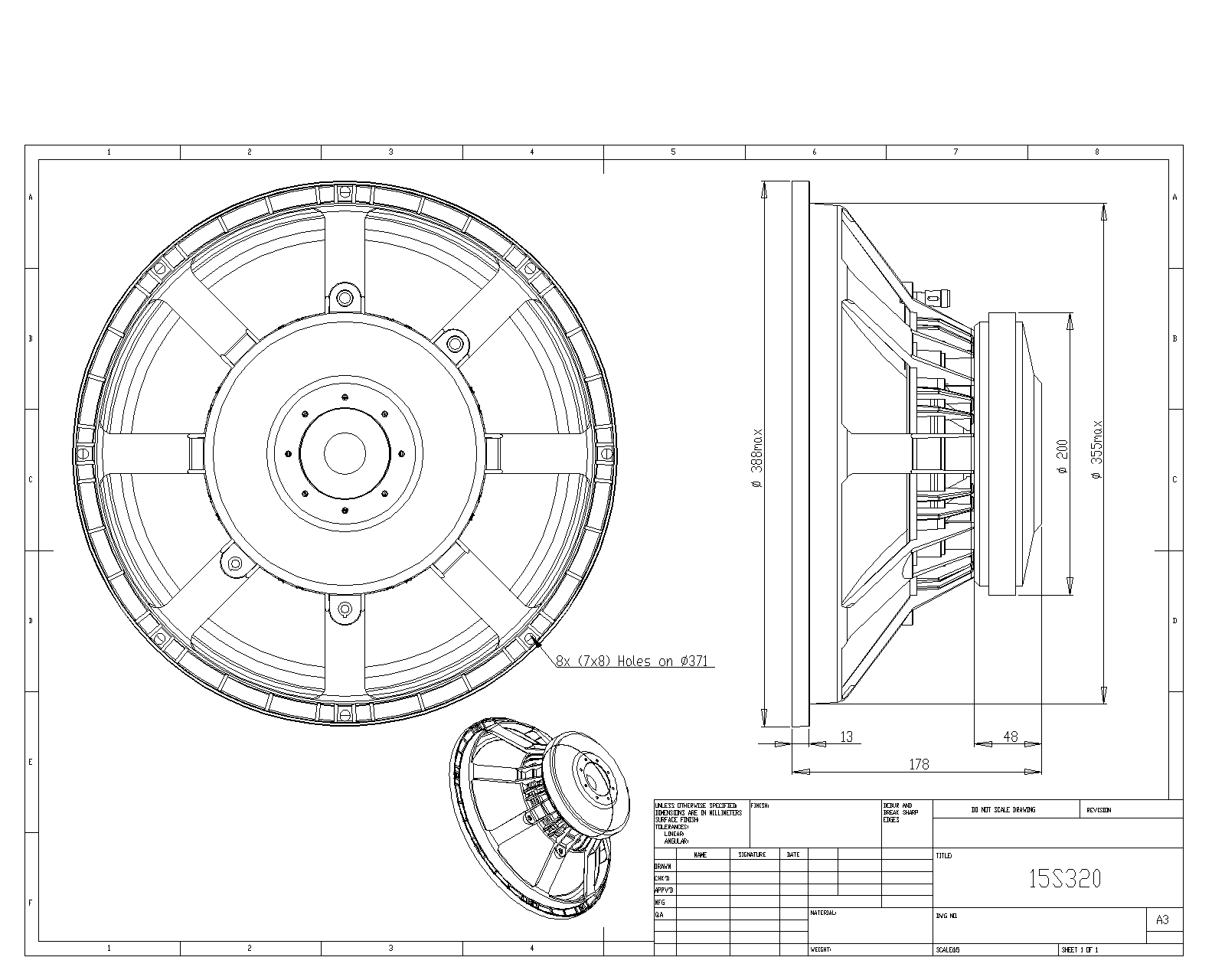

Size and mounting
- Diameter
- 388mm
- Cutout
- 358mm
- Bolt circle
- 371mm
- Depth
- 178mm
- Weight
- 9kg
Other published values
- Cms
- 0.14mm/N
† Calculated by bits from the published values
What this validation status means
Everything else BMS lists
LF
- BL
- 23.3T·m
- Fs
- 41Hz
- Le
- 0.80mH
- Re
- 5.7Ω
- Sd
- 880cm²
- Cms
- 0.14mm/N
- Mms
- 109g
- Qes
- 0.29
- Qms
- 5
- Qts
- 0.28
- SPL
- 97.7dB
- Vas
- 154L
- Xmax
- 4.5mm
- Power
- 500W
- Impedance
- 8Ω
- Sensitivity
- 98dB
- Low limit
- 40Hz
- Calculated sensitivity †
- 97.7dB
- High limit
- 2500Hz
- Manufacturer sensitivity
- 98dB
- Voice coil
- 77mm
- 10. basket
- Cast Aluminum
- 20. bl factor
- BL 23.3 Tesla m
- 1. application
- Compact 2- or 3-way
- 18. moving mass
- Mms 0.109 kg
- 13. dc resistance
- Re 5.7 Ohm
- 9. magnet gap depth
- 10 mm
- 17. equivalent volume
- Vas 154 L
- 2. nominal impendance
- 8 Ohm
- 5. frequency response
- 40 – 2500 Hz
- 6. voice coil diameter
- 77 (3″) mm
- 7. voice coil material
- Cu
- 12. resonance frequency
- Fs 41 Hz
- 14. mechanical q factor
- Qms 5
- 15. electrical q factor
- Qes 0.29
- 16. total quality factor
- Qts 0.28
- 19. mechanical complience
- Cms 0.14 mm / N
- 21. effective piston area
- Sd 0.0880 m²
- 22. max. linear excursion
- Xmax +/- 4.5 mm
- 23. voice coil inductance
- Le1k 0.8 mH
- 4. sensitivity (1 w / 1 m)
- 98 dB
- 3. power handling aes noise
- 500 W
- 8. voice coil winding depth
- 19 mm
- 11. effect. diaphragm diameter d
- 335 mm
02
