Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespBMS 15S435 8Ω
LF DriverMedia
Auto-advancing
Overview
LF Driver
BMS

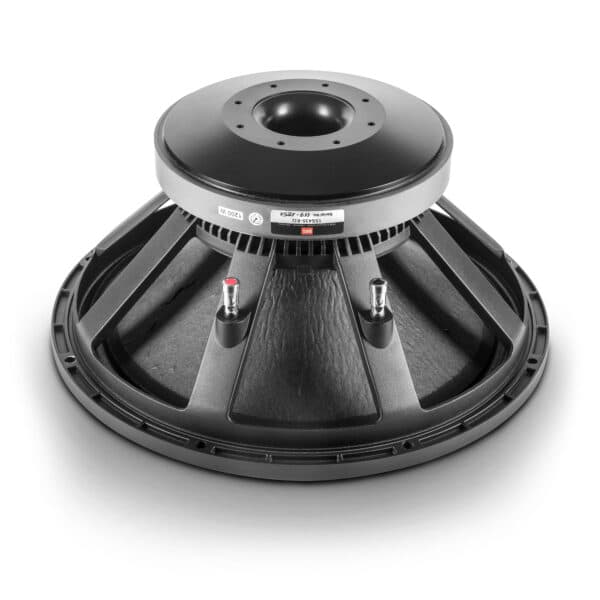

BMS 15S435
BMS 15S435 is a 15" 8 ohm LF driver rated at 1200W RMS. The validated T/S data includes Fs 38Hz, Qts 0.28, Vas 129L, Xmax 8mm, sensitivity 95.9dB, plus 676cm³ Vd and 131 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
1200W
Sensitivity
95.9dB
97.0dBmanufacturer; using T/S-derived value (1.1dB delta).
EBP
131
Vented alignment
Vd
676cm³
Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs38Hz
Qts0.28
Qes0.29
Qms5.9
Vas129.0L
Re5.4Ω
Le0.86mH
BL24.4Tm
Sd845cm²
Mms136g
Xmax8.0mm
SPL96dB
Power1200W
Impedance8Ω
F Low35Hz
F High2500Hz
Voice Coil102mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

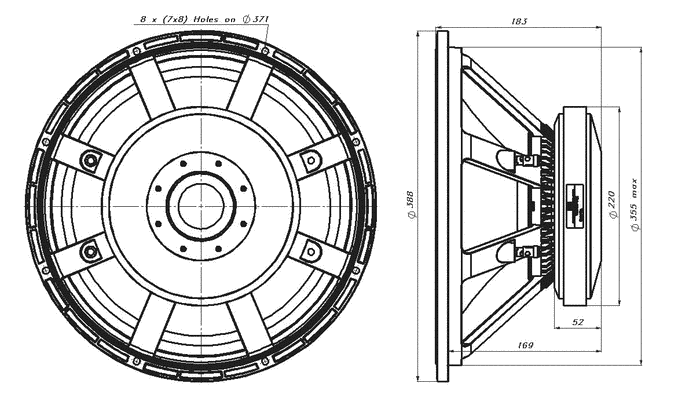

Dimensions & Physical
Weight10.7kg
Diameter388.0mm
Overall Depth183.0mm
Cutout Diameter358.0mm
Bolt Circle Diameter371.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
BMS
15S435
15"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
97%
Similarity
BMS
15S430V
15"
Xmax8mm0%
Qts0.280%
BL23.5Tm-4%
Vas135L+5%
Qes0.290%
92%
Similarity
£254.65
Eighteen Sound
15LW1410
15"
Xmax8.5mm+6%
Qts0.27-4%
BL24.1Tm-1%
Vas131L+2%
Qes0.28-3%
90%
Similarity
Precision Devices
PD.1550/2
15"
Xmax8.2mm+2%
Qts0.29+4%
BL26.6Tm+9%
Vas126.4L-2%
Qes0.3+3%
89%
Similarity
£199.99
B&C
15PZB100
15"
Xmax8mm0%
Qts0.29+4%
BL25.8Tm+6%
Vas110L-15%
Qes0.3+3%
89%
Similarity
Oberton
15XL701
15"
Xmax8.8mm+9%
Qts0.280%
BL23.1Tm-5%
Vas117L-9%
Qes0.29-1%
88%
Similarity
£254.65
Eighteen Sound
15LW1401
15"
Xmax9mm+13%
Qts0.27-4%
BL24.2Tm-1%
Vas131L+2%
Qes0.28-3%
88%
Similarity
£259.33
FaitalPRO
15HP1020
15"
Xmax9mm+13%
Qts0.27-4%
BL24.2Tm-1%
Vas126.6L-2%
Qes0.28-3%
88%
Similarity
Oberton
15NMB500
15"
Xmax7.8mm-3%
Qts0.29+4%
BL21.3Tm-13%
Vas128L-1%
Qes0.3+3%
87%
Similarity
BMS
15N830V2
15"
Xmax8mm0%
Qts0.27-4%
BL22.4Tm-8%
Vas159L+23%
Qes0.290%
86%
Similarity
£219.28
RCF
MB15N405
15"
Xmax7mm-12%
Qts0.27-4%
BL23.5Tm-4%
Vas124L-4%
Qes0.28-3%
86%
Similarity
£228.26
B&C
15TBX100
15"
Xmax9mm+13%
Qts0.280%
BL25.5Tm+5%
Vas113L-12%
Qes0.3+3%
86%
Similarity
£250.00
Oberton
15XB1000
15"
Xmax9mm+13%
Qts0.28+1%
BL25.6Tm+5%
Vas111L-14%
Qes0.29+1%
