LF Driver15PZB series
B&C
B&C 15PZB100
B&C 15PZB100 is a 15" 8 ohm LF driver rated at 700W RMS. The validated T/S data includes Fs 39Hz, Qts 0.29, Vas 110L, Xmax 8mm, sensitivity 95.4dB, plus 684cm³ Vd and 130 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £199.99.
Size
15"
Impedance
8Ω
RMS Power
700W
Sensitivity
95.4dB
97.0dBmanufacturer; using T/S-derived value (1.6dB delta).
EBP
130
Vented alignment
Vd
684cm³

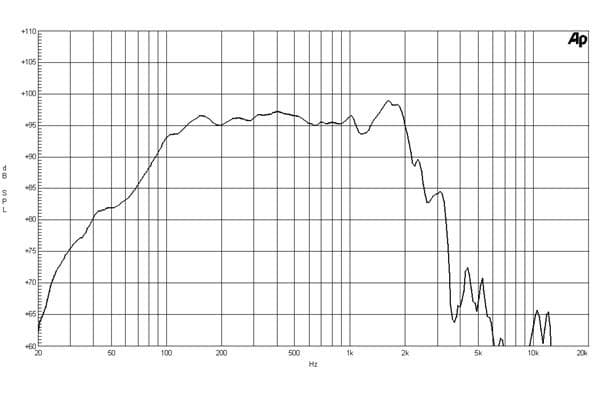

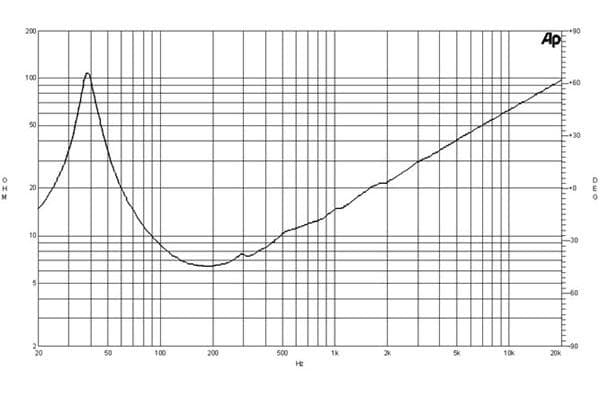

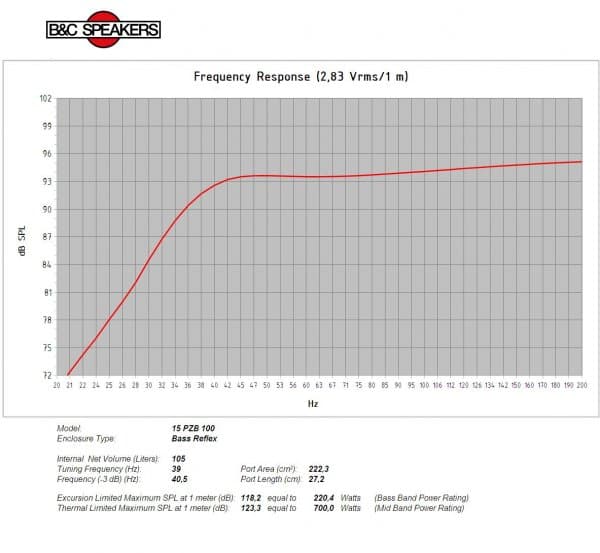

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs39Hz
Qts0.29
Qes0.30
Qms6.5
Vas110.0L
Re5.2Ω
Le2.00mH
BL25.8Tm
Sd855cm²
Mms154g
Xmax8.0mm
SPL95dB
Power700W
Power Nominal700W
Impedance8Ω
Min Impedance6.4Ω
F Low40Hz
F High2000Hz
Voice Coil100mm
Flux Density1.15T
Pricing & availability
Price definitionsPrice movement
Best current price
£199.99
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight11.6kg
Diameter393.0mm
Overall Depth174.0mm
Cutout Diameter354.0mm
Bolt Circle Diameter374.0mm
Additional Manufacturer Specs
Bl25.8 Tm
Fs39 Hz
Le2 mH
Re5.2 Ω
Sd855 cm² (132.5 in²)
Ebp130 Hz
Mms154 g
Qes0.3
Qms6.5
Qts0.29
Vas110 dm³ (3.8 ft³)
η02.1 %
ConeRCK15PZB1008
Xmax8 mm
Xvar6.5 mm
SpiderDouble Silicone
Cone ShapeExponential
Pole DesignStraight Pole
Winding Depth21 mm (0.83 in)
Surround ShapeDouble Roll
Former MaterialGlass Fibre
Magnet MaterialFerrite
Nominal Diameter380 mm (15 in)
Winding MaterialCopper
Magnetic Gap Depth9 mm (0.35 in)
Recommended Tuning39 Hz
Bolt Circle Diameter374 mm (14.7 in)
Recommended Enclosure105 dm³ (3.7 ft³)
Woofer Cone TreatmentTWP Waterproof Both Sides
Baffle Cutout Diameter354 mm (13.9 in)
Flange And Gasket Thickness16 mm (0.63 in)
Air Volume Occupied By Driver5.2 dm³ (0.18 ft³)
