LF Driver
Sica
Sica 15 F 4 CP
Sica 15 F 4 CP is a 15" 8 ohm LF driver rated at 700W RMS. The validated T/S data includes Fs 46Hz, Qts 0.27, Vas 97L, Xmax 7mm, sensitivity 97.4dB, plus 599cm³ Vd and 166 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
700W
Sensitivity
97.4dB
99.4dBmanufacturer; using T/S-derived value (2.0dB delta).
EBP
166
Vented alignment
Vd
599cm³
T/S Parameters
Valid
Fs46Hz
Qts0.27
Qes0.28
Qms7.7
Vas97.0L
Re5.1Ω
Le1.22mH
BL26.0Tm
Sd855cm²
Mms126g
Xmax7.0mm
SPL97dB
Power700W
Impedance8Ω
Voice Coil100mm
Flux Density1.30T
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight12.1kg
Diameter388.0mm
Overall Depth169.0mm
Cutout Diameter355.0mm
Bolt Circle Diameter371.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Sica
15 F 4 CP
15"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
88%
Similarity
£219.28
RCF
MB15N405
15"
Xmax7mm0%
Qts0.270%
BL23.5Tm-10%
Vas124L+28%
Qes0.280%
82%
Similarity
Precision Devices
PD.154/2
15"
Xmax7.7mm+10%
Qts0.270%
BL29.4Tm+13%
Vas114.9L+18%
Qes0.27-4%
81%
Similarity

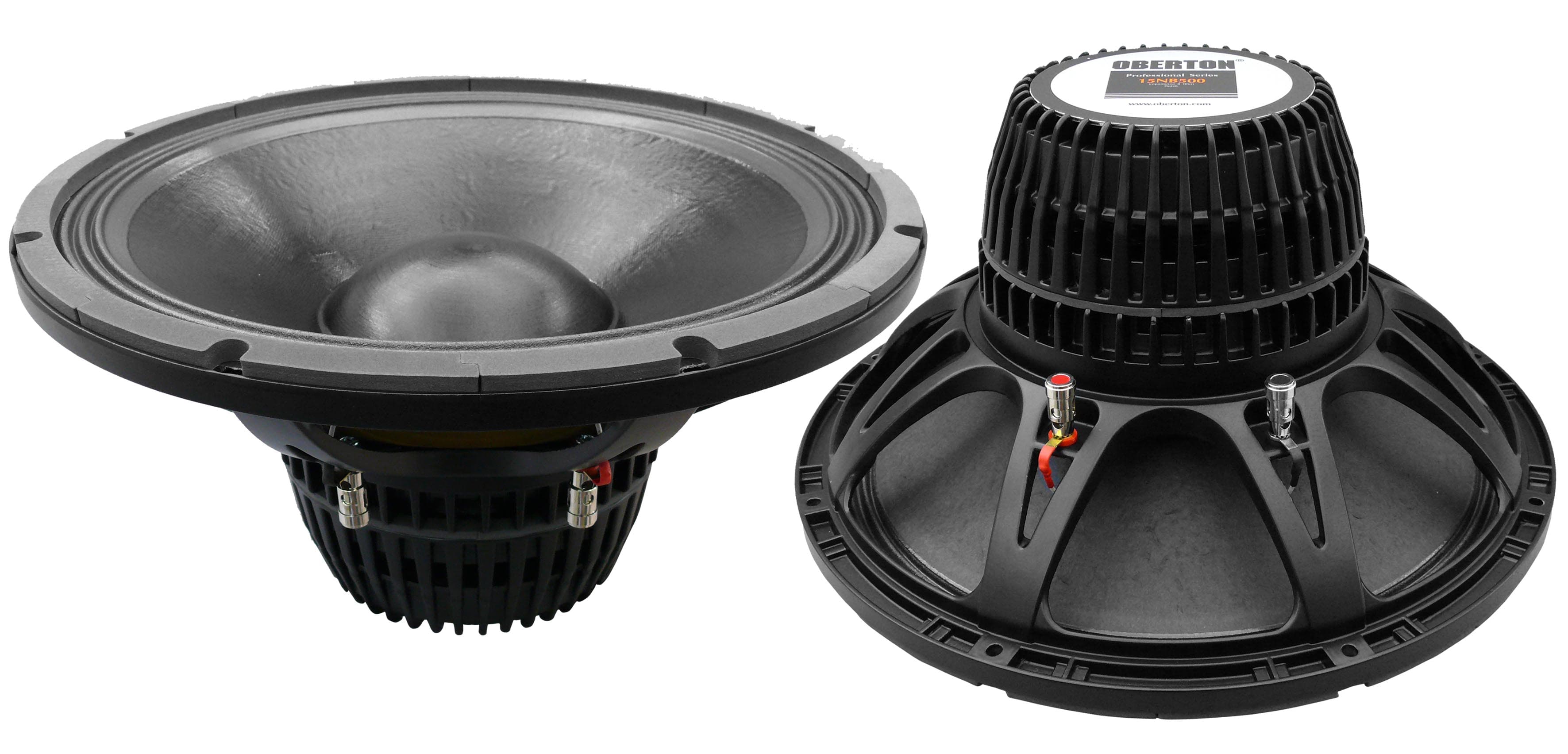

Oberton
15NB500
15"
Xmax7.3mm+4%
Qts0.26-6%
BL24.3Tm-7%
Vas121.5L+25%
Qes0.26-7%
80%
Similarity
£199.99
B&C
15PZB100
15"
Xmax8mm+14%
Qts0.29+7%
BL25.8Tm-1%
Vas110L+13%
Qes0.3+7%
80%
Similarity
£453.72
RCF
CX15N351
15"
Xmax6mm-14%
Qts0.26-4%
BL23.5Tm-10%
Vas110L+13%
Qes0.27-4%
77%
Similarity

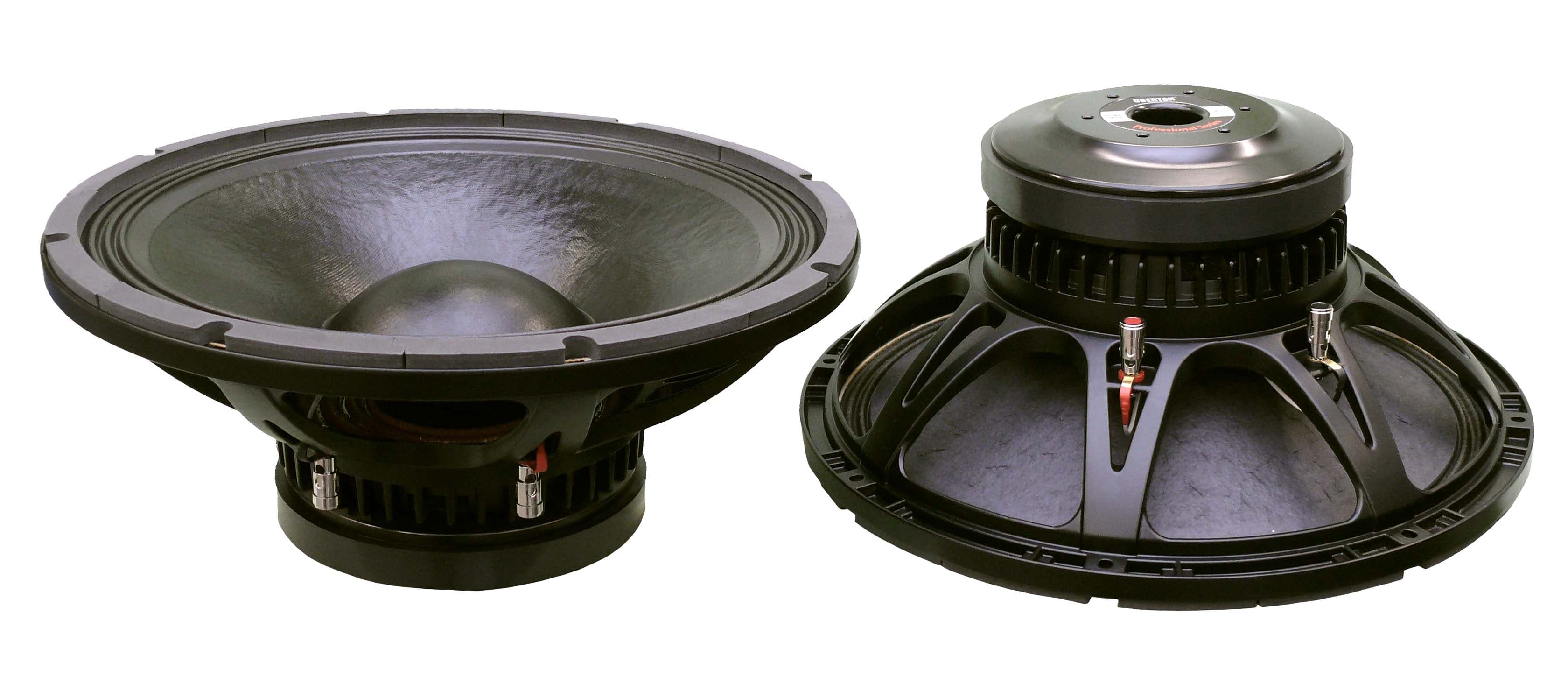

Oberton
15B500
15"
Xmax7.3mm+4%
Qts0.27-1%
BL22.9Tm-12%
Vas145.8L+50%
Qes0.27-2%
77%
Similarity
Oberton
15NXB1000
15"
Xmax9mm+29%
Qts0.28+5%
BL26Tm0%
Vas105.5L+9%
Qes0.29+5%
77%
Similarity
Oberton
15NXB700
15"
Xmax9mm+29%
Qts0.28+5%
BL26Tm0%
Vas105.5L+9%
Qes0.29+5%
76%
Similarity
BMS
15S435
15"
Xmax8mm+14%
Qts0.28+4%
BL24.4Tm-6%
Vas129L+33%
Qes0.29+4%
75%
Similarity
Sica
15 K 4 PL
15"
Xmax8mm+14%
Qts0.3+11%
BL23.9Tm-8%
Vas102.3L+5%
Qes0.31+11%
75%
Similarity
£254.65
Eighteen Sound
15LW1410
15"
Xmax8.5mm+21%
Qts0.270%
BL24.1Tm-7%
Vas131L+35%
Qes0.280%
75%
Similarity
Oberton
15NB451
15"
Xmax7mm0%
Qts0.26-5%
BL22.9Tm-12%
Vas145.2L+50%
Qes0.26-6%
