LF Driver15NA series
B&C
B&C 15NA100
B&C 15NA100 is a 15" 8 ohm LF driver rated at 800W RMS. The validated T/S data includes Fs 47Hz, Qts 0.28, Vas 88L, Xmax 10mm, sensitivity 97dB, plus 855cm³ Vd and 162 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £304.46.
Size
15"
Impedance
8Ω
RMS Power
800W
Sensitivity
97.0dB
98.0dBmanufacturer; using T/S-derived value (1.0dB delta).
EBP
162
Vented alignment
Vd
855cm³

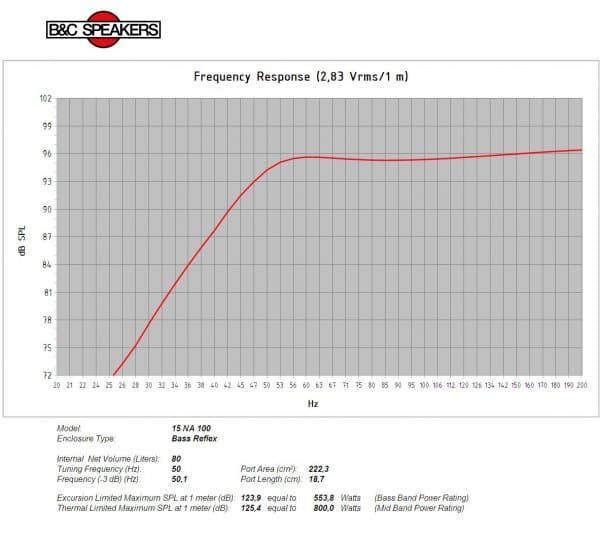

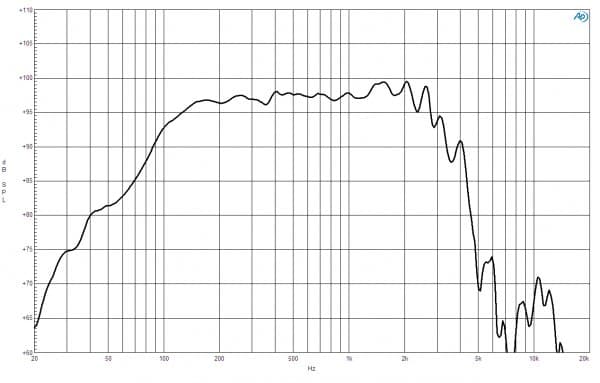

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs47Hz
Qts0.28
Qes0.29
Qms6.1
Vas88.0L
Re5.1Ω
Le1.20mH
BL26.3Tm
Sd855cm²
Mms136g
Xmax10.0mm
SPL97dB
Power800W
Power Nominal800W
Impedance8Ω
Min Impedance6.6Ω
F Low45Hz
F High2000Hz
Voice Coil100mm
Flux Density1.20T
Pricing & availability
Price definitionsPrice movement
Best current price
£304.46
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight8.6kg
Diameter393.0mm
Overall Depth180.0mm
Cutout Diameter354.0mm
Bolt Circle Diameter374.0mm
Additional Manufacturer Specs
Bl26.3 Tm
Fs47 Hz
Le1.2 mH
Re5.1 Ω
Sd855 cm² (132.5 in²)
Ebp162 Hz
Mms136 g
Qes0.29
Qms6.1
Qts0.28
Vas88 dm³ (3.1 ft³)
η02.9 %
ConeRCK15NA1008
Xmax10 mm
Xvar9 mm
SpiderDouble Silicone
Cone ShapeExponential
Pole DesignT-Pole
Winding Depth23 mm (0.9 in)
Surround ShapeTriple Roll
Former MaterialGlass Fibre
Magnet MaterialNeodymium Inside Slug
Nominal Diameter380 mm (15 in)
Winding MaterialAluminium
Magnetic Gap Depth11 mm (0.43 in)
Recommended Tuning50 Hz
Bolt Circle Diameter374 mm (14.7 in)
Recommended Enclosure80 dm³ (2.82 ft³)
Woofer Cone TreatmentWP Waterproof Front Side
Baffle Cutout Diameter354 mm (13.9 in)
Flange And Gasket Thickness16 mm (0.62 in)
Air Volume Occupied By Driver6 dm³ (0.21 ft³)
