Oberton 15MB701
Oberton 15MB701 is a 15" 8 ohm LF driver rated at 700W RMS. The validated T/S data includes Fs 44Hz, Qts 0.27, Vas 100.2L, Xmax 9.3mm, sensitivity 97dB, plus 767cm³ Vd and 161 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
700W
Sensitivity
97.0dB
200.0dBmanufacturer; using T/S-derived value (103.0dB delta).
EBP
161
Vented alignment
Vd
767cm³
T/S Parameters
Valid
Fs44Hz
Qts0.27
Qes0.27
Qms12.0
Vas100.2L
Re5.4Ω
Le0.92mH
BL26.1Tm
Sd830cm²
Mms124g
Xmax9.3mm
SPL97dB
Power700W
Impedance8Ω
Min Impedance6.9Ω
F Low45Hz
F High2500Hz
Voice Coil100mm
Flux Density1.28T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

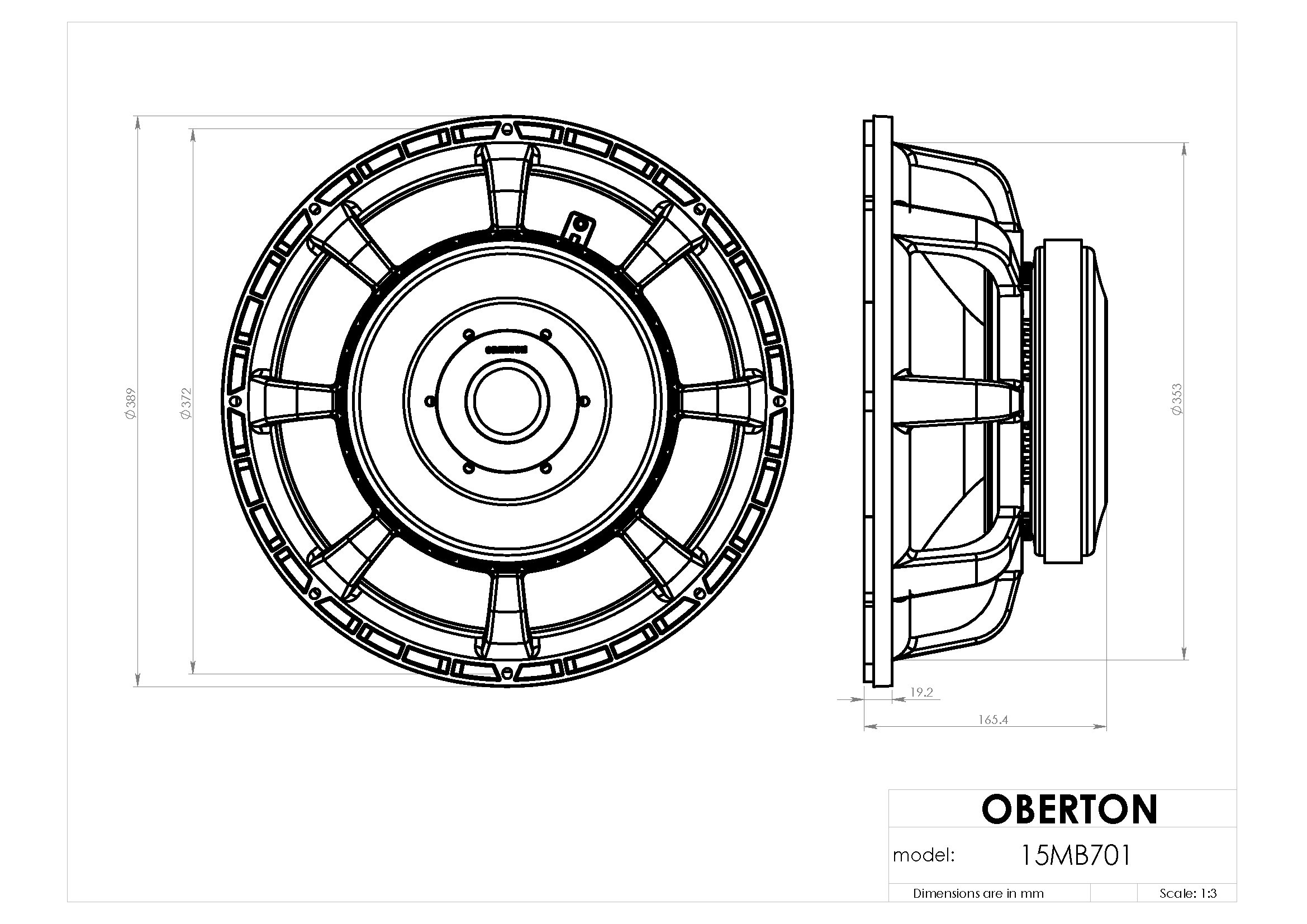

Dimensions & Physical
Weight10.4kg
Diameter389.0mm
Overall Depth165.4mm
Cutout Diameter353.0mm
Bolt Circle Diameter372.0mm
