LF DriverPD series
Precision Devices

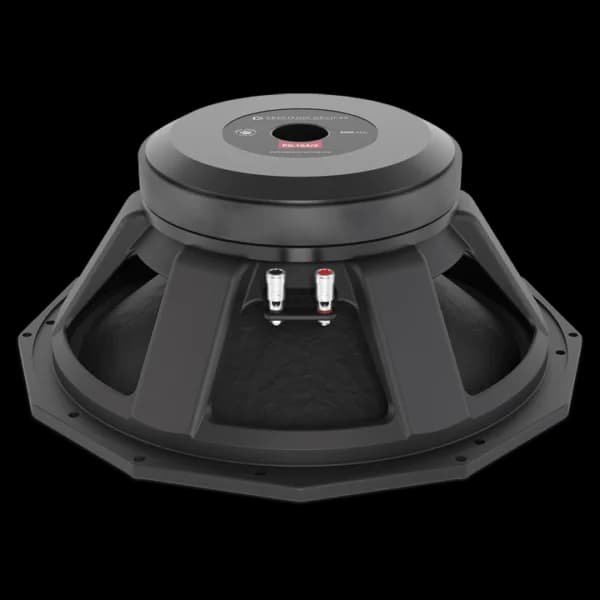

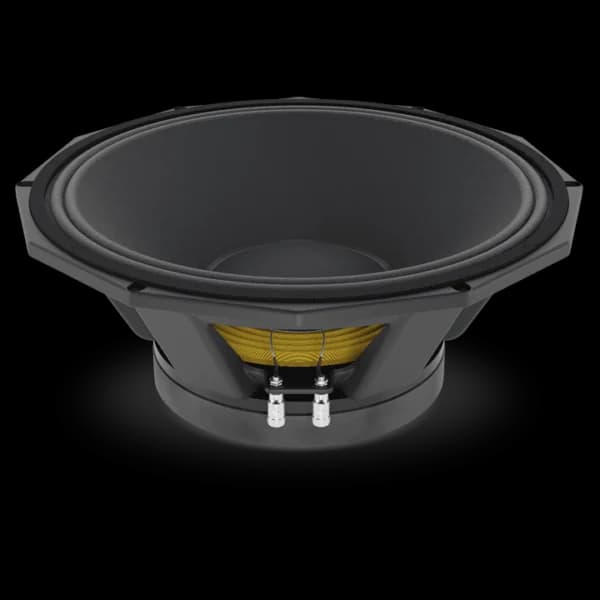

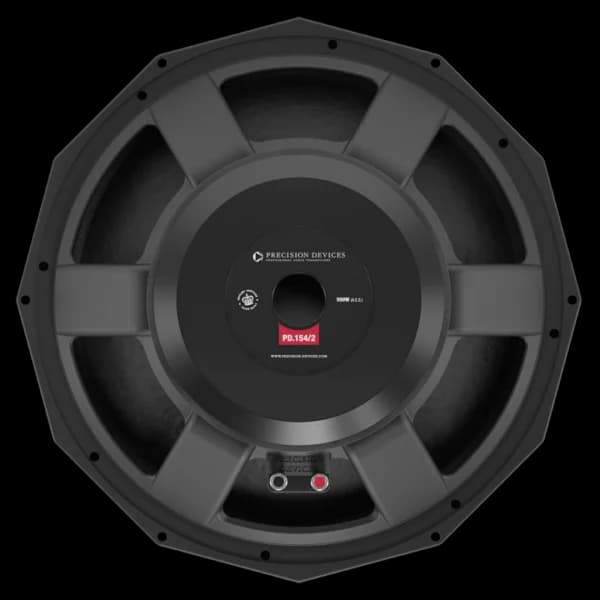

Precision Devices PD.154/2
Precision Devices PD.154/2 is a 15" 8 ohm LF driver rated at 500W RMS. The validated T/S data includes Fs 45Hz, Qts 0.27, Vas 114.9L, Xmax 7.7mm, sensitivity 97.9dB, plus 699cm³ Vd and 166 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
500W
Sensitivity
97.9dB
EBP
166
Vented alignment
Vd
699cm³
T/S Parameters
Valid
Fs45Hz
Qts0.27
Qes0.27
Qms20.4
Vas114.9L
Re6.5Ω
Le1.03mH
BL29.4Tm
Sd908cm²
Mms127g
Xmax7.7mm
SPL98dB
Power500W
Impedance8Ω
F Low40Hz
F High2000Hz
Voice Coil102mm
Flux Density1.10T
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight13.1kg
Diameter408.3mm
Overall Depth154.0mm
Cutout Diameter356.0mm
Bolt Circle Diameter395.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Precision Devices
PD.154/2
15"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
84%
Similarity
Sica
15 F 4 CP
15"
Xmax7mm-9%
Qts0.270%
BL26Tm-12%
Vas97L-16%
Qes0.28+4%
82%
Similarity
Oberton
15NB500
15"
Xmax7.3mm-6%
Qts0.26-6%
BL24.3Tm-17%
Vas121.5L+6%
Qes0.26-4%
82%
Similarity
£219.28
RCF
MB15N405
15"
Xmax7mm-9%
Qts0.270%
BL23.5Tm-20%
Vas124L+8%
Qes0.28+4%
81%
Similarity
£199.99
B&C
15PZB100
15"
Xmax8mm+4%
Qts0.29+7%
BL25.8Tm-12%
Vas110L-4%
Qes0.3+11%
81%
Similarity
BMS
15S435
15"
Xmax8mm+4%
Qts0.28+4%
BL24.4Tm-17%
Vas129L+12%
Qes0.29+7%
80%
Similarity
£254.65
Eighteen Sound
15LW1410
15"
Xmax8.5mm+10%
Qts0.270%
BL24.1Tm-18%
Vas131L+14%
Qes0.28+4%
80%
Similarity
Precision Devices
PD.1550/2
15"
Xmax8.2mm+6%
Qts0.29+7%
BL26.6Tm-10%
Vas126.4L+10%
Qes0.3+11%
79%
Similarity

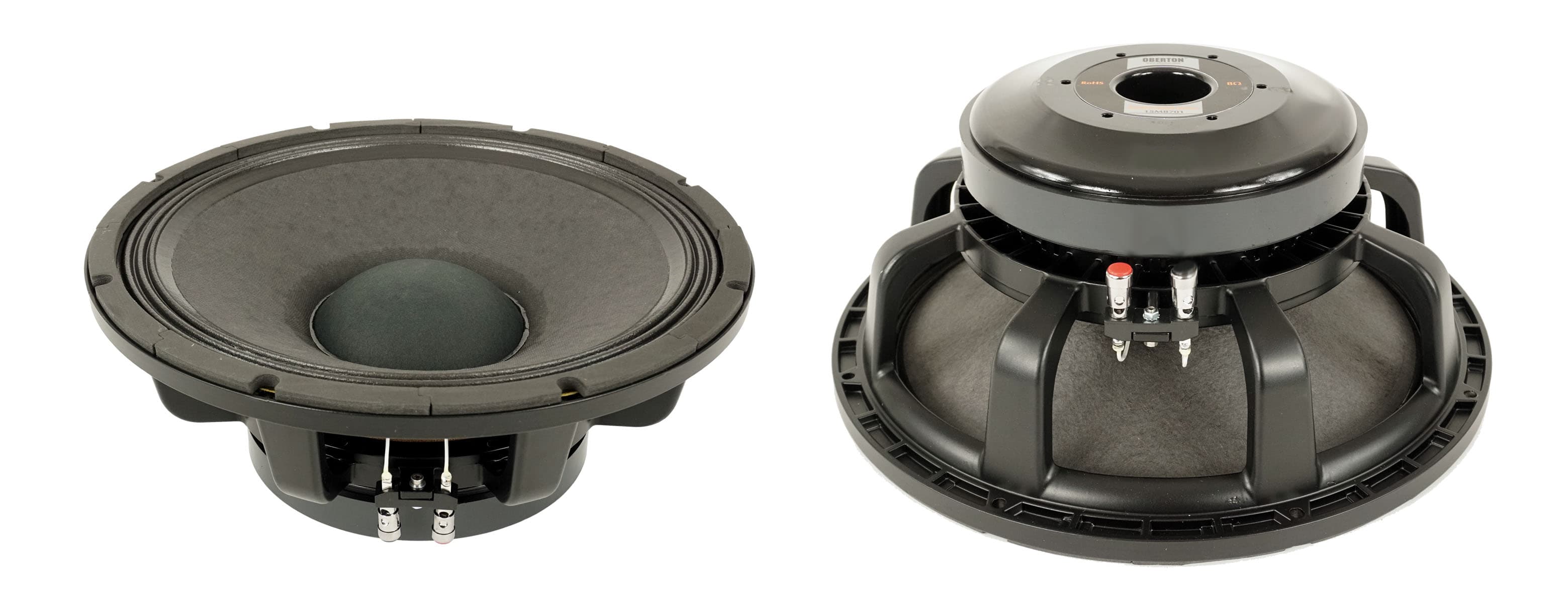

Oberton
15MB701
15"
Xmax9.3mm+20%
Qts0.27-1%
BL26.1Tm-12%
Vas100.2L-13%
Qes0.27+1%
78%
Similarity
BMS
15S430V
15"
Xmax8mm+4%
Qts0.28+4%
BL23.5Tm-20%
Vas135L+17%
Qes0.29+7%
78%
Similarity
£259.33
FaitalPRO
15HP1020
15"
Xmax9mm+17%
Qts0.270%
BL24.2Tm-18%
Vas126.6L+10%
Qes0.28+4%
78%
Similarity
Oberton
15B500
15"
Xmax7.3mm-6%
Qts0.27-1%
BL22.9Tm-22%
Vas145.8L+27%
Qes0.27+1%
77%
Similarity
£250.00
Oberton
15XB1000
15"
Xmax9mm+17%
Qts0.28+5%
BL25.6Tm-13%
Vas111L-3%
Qes0.29+8%
