LF Driver15NMB series
Oberton
Oberton 15NMB500
Oberton 15NMB500 is a 15" 8 ohm LF driver rated at 500W RMS. The validated T/S data includes Fs 45Hz, Qts 0.29, Vas 128.0L, Xmax 7.8mm, sensitivity 97.9dB, plus 643cm³ Vd and 150 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
500W
Sensitivity
97.9dB
200.0dBmanufacturer; using T/S-derived value (102.1dB delta).
EBP
150
Vented alignment
Vd
643cm³
T/S Parameters
Valid
Fs45Hz
Qts0.29
Qes0.30
Qms12.4
Vas128.0L
Re5.1Ω
Le0.86mH
BL21.3Tm
Sd830cm²
Mms95g
Xmax7.8mm
SPL98dB
Power500W
Impedance8Ω
Min Impedance6.3Ω
F Low45Hz
F High3500Hz
Voice Coil77mm
Flux Density1.20T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

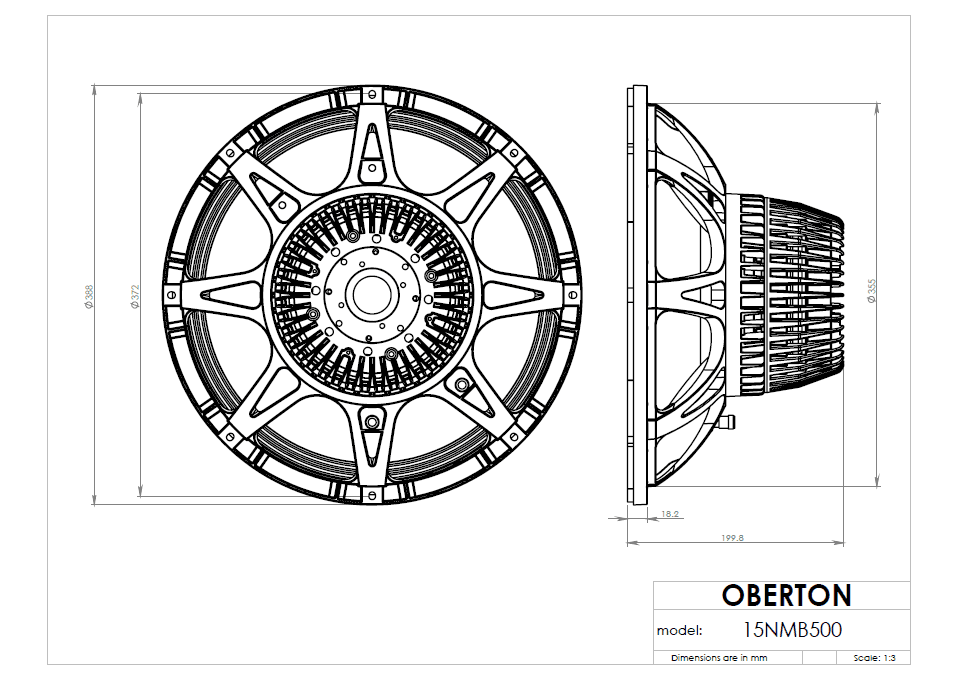

Dimensions & Physical
Weight5.4kg
Diameter388.0mm
Overall Depth200.0mm
Cutout Diameter355.0mm
Bolt Circle Diameter372.0mm
