LF Driver15CL series
B&C
B&C 15CL76
B&C 15CL76 is a 15" 8 ohm LF driver rated at 400W RMS. The validated T/S data includes Fs 42Hz, Qts 0.33, Vas 135L, Xmax 7mm, sensitivity 96.7dB, plus 599cm³ Vd and 124 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £138.54.
Size
15"
Impedance
8Ω
RMS Power
400W
Sensitivity
96.7dB
98.5dBmanufacturer; using T/S-derived value (1.8dB delta).
EBP
124
Vented alignment
Vd
599cm³

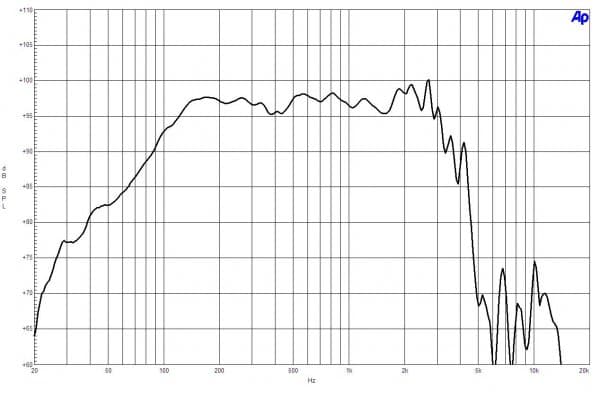

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs42Hz
Qts0.33
Qes0.34
Qms7.9
Vas135.0L
Re5.1Ω
Le1.30mH
BL21.0Tm
Sd855cm²
Mms108g
Xmax7.0mm
SPL97dB
Power400W
Power Nominal400W
Impedance8Ω
Min Impedance6.3Ω
F Low40Hz
F High3000Hz
Voice Coil76mm
Flux Density1.15T
Pricing & availability
Price definitionsPrice movement
Best current price
£138.54
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight3.8kg
Diameter389.0mm
Overall Depth171.0mm
Cutout Diameter353.0mm
Bolt Circle Diameter374.0mm
Additional Manufacturer Specs
Bl21 Tm
Fs42 Hz
Le1.3 mH
Re5.1 Ω
Sd855 cm² (132.5 in²)
Ebp124 Hz
Mms108 g
Qes0.34
Qms7.9
Qts0.33
Vas135 dm³ (4.8 ft³)
η02.9 %
ConeRCK15CL768
Xmax7 mm
Xvar8.5 mm
SpiderSingle
Cone ShapeExponential
Pole DesignStraight Pole
Winding Depth19 mm (0.75 in)
Surround ShapeTriple Roll
Former MaterialGlass Fibre
Magnet MaterialNeodymium Inside Slug
Nominal Diameter380 mm (15 in)
Winding MaterialCopper
Magnetic Gap Depth11 mm (0.43 in)
Recommended Tuning47 Hz
Recommended LoadingVented Box
Bolt Circle Diameter374 mm (14.72 in)
Recommended Enclosure100 dm³ (3.53 ft³)
Woofer Cone TreatmentWP Waterproof Front Side
Baffle Cutout Diameter353 mm (13.9 in)
Flange And Gasket Thickness11 mm (0.43 in)
Air Volume Occupied By Driver4.4 dm³ (0.15 ft³)
