15-inch LF driver · 76 mm voice coil · 500 W

RCF M15P550 8Ω

Name: RCF M15P550 8 Ohm
Brand: RCF
SKU: M15P550

8 Ω · 40–3000 Hz

No current price

View offers

Open in 00 Simulator

Fs: 45Hz
Xmax: 7mm
SPL: 97dB
Pe: 500W
BL: 19.8T·m
Vd: 595cm³
Qts: 0.37
Vas: 140L

See all 26 specs

Specifications

Published by RCF

Manufacturer page

Datasheet PDF

RCF M15P550 is a 15-inch 8 ohm LF driver rated at 500 W RMS. The validated T/S data includes Fs 45 Hz, Qts 0.37, Vas 140 L, Xmax 7 mm, sensitivity 97 dB, plus 595 cm³ Vd and 110 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

The published T/S values agree with each other

Thiele/Small

Fs: 45Hz
Qts: 0.37
Qes: 0.41
Qms: 4
Vas: 140L
Re: 5.3Ω
Le: 0.57mH

Motor and cone

BL: 19.8T·m
Sd: 850cm²
Mms: 89g
Xmax: 7mm
Vd †: 595cm³
Voice coil: 76mm

Power and response

Sensitivity †: 97dB
Manufacturer sensitivity: 99.5dB
Power: 500W
Impedance: 8Ω
Min. impedance: 5.9Ω
Range: 40–3000Hz
EBP †: 110 · Leans vented

Size and mounting

Diameter: 387mm
Cutout: 352mm
Bolt circle: 371mm
Weight: 8.7kg

Other published values

Xmech: 36
Power Program: 1000

Sensitivity shows 97.0 dB, calculated from the T/S values. RCF publishes 99.5 dB, 2.5 dB apart.

† Calculated by bits from the published values

What this validation status means

Everything else RCF lists

LF · Primary · 15″

BL: 19.8T·m
Fs: 45Hz
Le: 0.57mH
Re: 5.3Ω
Sd: 850cm²
Mms: 89g
Qes: 0.41
Qms: 4
Qts: 0.37
SPL: 97dB
Vas: 140L
Xmax: 7mm
Xmech: 36
Power: 500W
Impedance: 8Ω
Sensitivity: 99.5dB
Low limit: 40Hz
Power Program: 1000
Calculated sensitivity †: 97dB
High limit: 3000Hz
Manufacturer sensitivity: 99.5dB
Min. impedance: 5.9Ω
Voice coil: 76mm
Weight: 8.7kg
Diameter: 387mm
Cutout: 352mm
Bolt circle: 371mm

Compare

Same-size drivers, compared with the M15P550. Clear differences are green when better and red when worse.

This driverM15P550

Best price

–

45 Hz

Qts

0.37

Vas

140 L

19.8 T·m

Xmax

7 mm

Sensitivity

97 dB

Power

500 W

SB AudienceBIANCO-15MW500

£110.00

Fs39 Hz −13%

Qts0.40 +8%

Vas171 L +22%

BL18.8 T·m −5%

Xmax7.6 mm +9%

Sensitivity96 dB −1

B&C15CL76

£127.74

Fs42 Hz −7%

Qts0.33 −11%

Vas135 L −4%

BL21 T·m +6%

Xmax7 mm –

Sensitivity96.7 dB –

EminenceKAPPA-15LFA

£143.62

Fs39 Hz −13%

Qts0.38 –

Vas159 L +14%

BL18.6 T·m −6%

Xmax5.5 mm −21%

Sensitivity95.6 dB −1.4

CIAREPWA15.75

£146.53

Fs44 Hz –

Qts0.39 +5%

Vas135 L −4%

BL19.3 T·m –

Xmax7 mm –

Sensitivity96.5 dB −0.5

FaneSOVEREIGN PRO 15-600LF

£152.00

Fs40 Hz −11%

Qts0.37 –

Vas188 L +34%

BL19.7 T·m –

Xmax6.9 mm –

Sensitivity97 dB –

RCFL15P540

£173.78

Fs50 Hz +11%

Qts0.39 +5%

Vas100 L −29%

BL21.4 T·m +8%

Xmax7 mm –

Sensitivity96.9 dB –

CIAREPW396

£186.72

Fs43 Hz −4%

Qts0.41 +11%

Vas129 L −8%

BL20.5 T·m +4%

Xmax6.5 mm −7%

Sensitivity96 dB −1

Beyma15MCB700

£207.83

Fs44 Hz –

Qts0.34 −8%

Vas148 L +6%

BL20 T·m –

Xmax7 mm –

Sensitivity97.5 dB +0.5

BMS15N620

£216.43

Fs41 Hz −9%

Qts0.35 −5%

Vas154 L +10%

BL20.6 T·m +4%

Xmax5.5 mm −21%

Sensitivity96.6 dB –

B&C15NDL88

£225.24

Fs45 Hz –

Qts0.34 −8%

Vas126 L −10%

BL20.1 T·m –

Xmax8 mm +14%

Sensitivity97.1 dB –

BMS15N630

£225.93

Fs39 Hz −13%

Qts0.42 +14%

Vas152 L +9%

BL19.8 T·m –

Xmax8 mm +14%

Sensitivity95 dB −2

Eighteen Sound15NTLW3500

£319.85

Fs45 Hz –

Qts0.39 +5%

Vas131 L −6%

BL19.5 T·m –

Xmax8.3 mm +19%

Sensitivity96.8 dB –

BMS15CN682

£384.52

Fs41 Hz −10%

Qts0.36 –

Vas137 L –

BL20.6 T·m +4%

Xmax5.5 mm −21%

Sensitivity95.9 dB −1.1

Beyma15CXA400ND

£401.87

Fs40 Hz −11%

Qts0.36 –

Vas196 L +40%

BL19 T·m −4%

Xmax6 mm −14%

Sensitivity97.1 dB –

Eighteen Sound15NCX750

£454.74

Fs49 Hz +9%

Qts0.37 –

Vas141 L –

BL18.4 T·m −7%

Xmax5.5 mm −21%

Sensitivity98.2 dB +1.2

Eighteen Sound15NCX750H

£470.84

Fs49 Hz +9%

Qts0.37 –

Vas141 L –

BL18.5 T·m −7%

Xmax5.5 mm −21%

Sensitivity98.2 dB +1.2

Eighteen Sound15NCX910

£497.18

Fs55 Hz +22%

Qts0.33 −11%

Vas107 L −24%

BL21 T·m +6%

Xmax7 mm –

Sensitivity99.2 dB +2.2

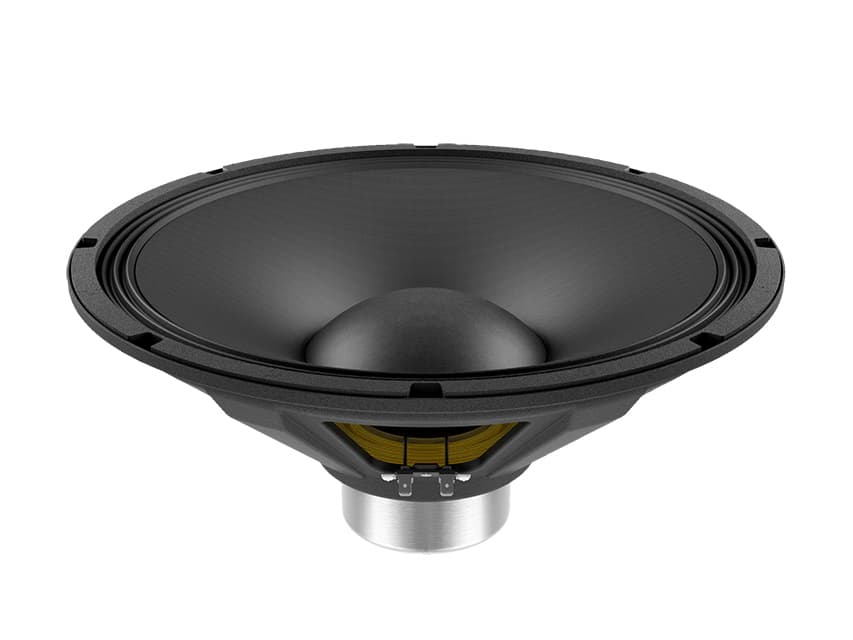

LavoceNBASS15-30

No current price

Fs42 Hz −7%

Qts0.36 –

Vas143.1 L –

BL19.2 T·m −3%

Xmax6.6 mm −6%

Sensitivity96.5 dB −0.5

RCFMB15N301

No current price

Fs48 Hz +7%

Qts0.37 –

Vas134 L −4%

BL19.2 T·m −3%

Xmax6 mm −14%

Sensitivity97.8 dB +0.8

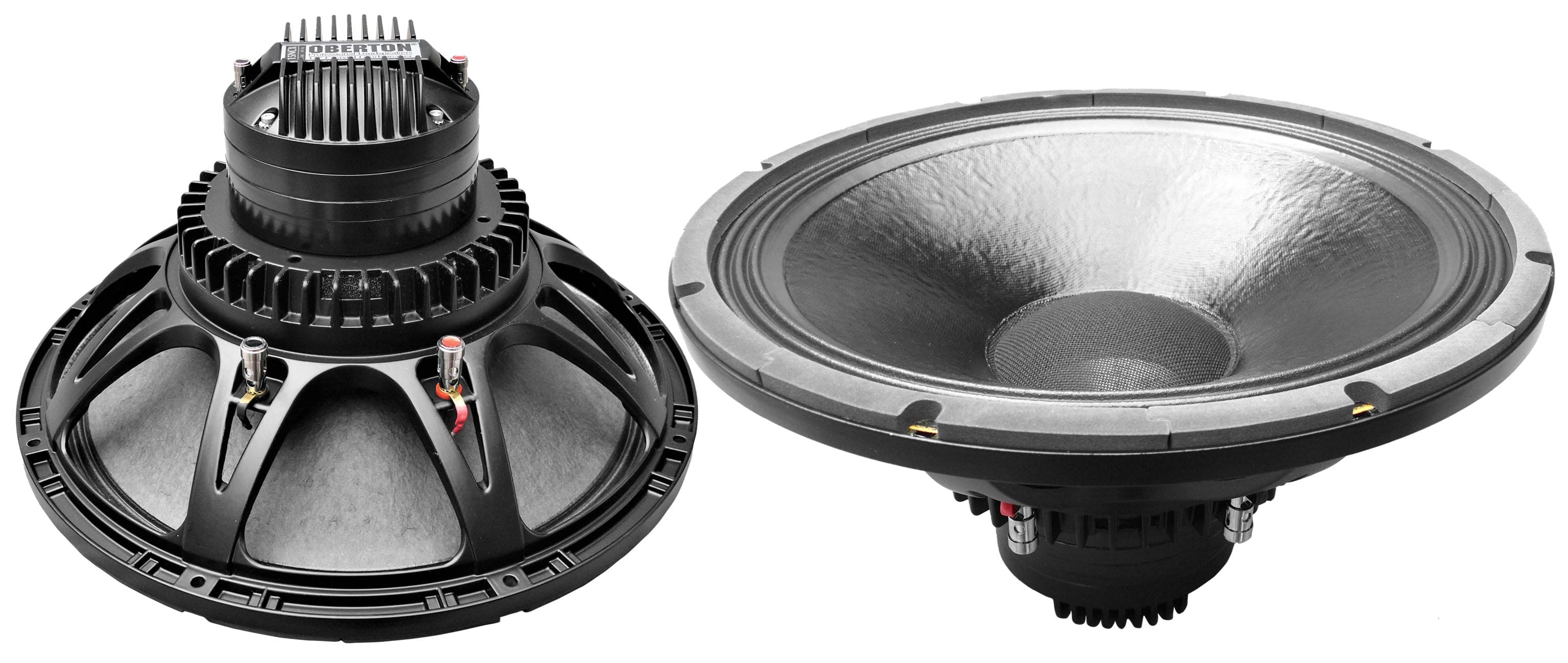

Oberton15NCX

No current price

Fs44 Hz –

Qts0.36 –

Vas138.4 L –

BL18.6 T·m −6%

Xmax7.8 mm +11%

Sensitivity96.9 dB –

CelestionFTR15-3070E

No current price

Fs46 Hz –

Qts0.38 –

Vas145.8 L +4%

BL17.9 T·m −10%

Xmax7.8 mm +11%

Sensitivity97.2 dB –

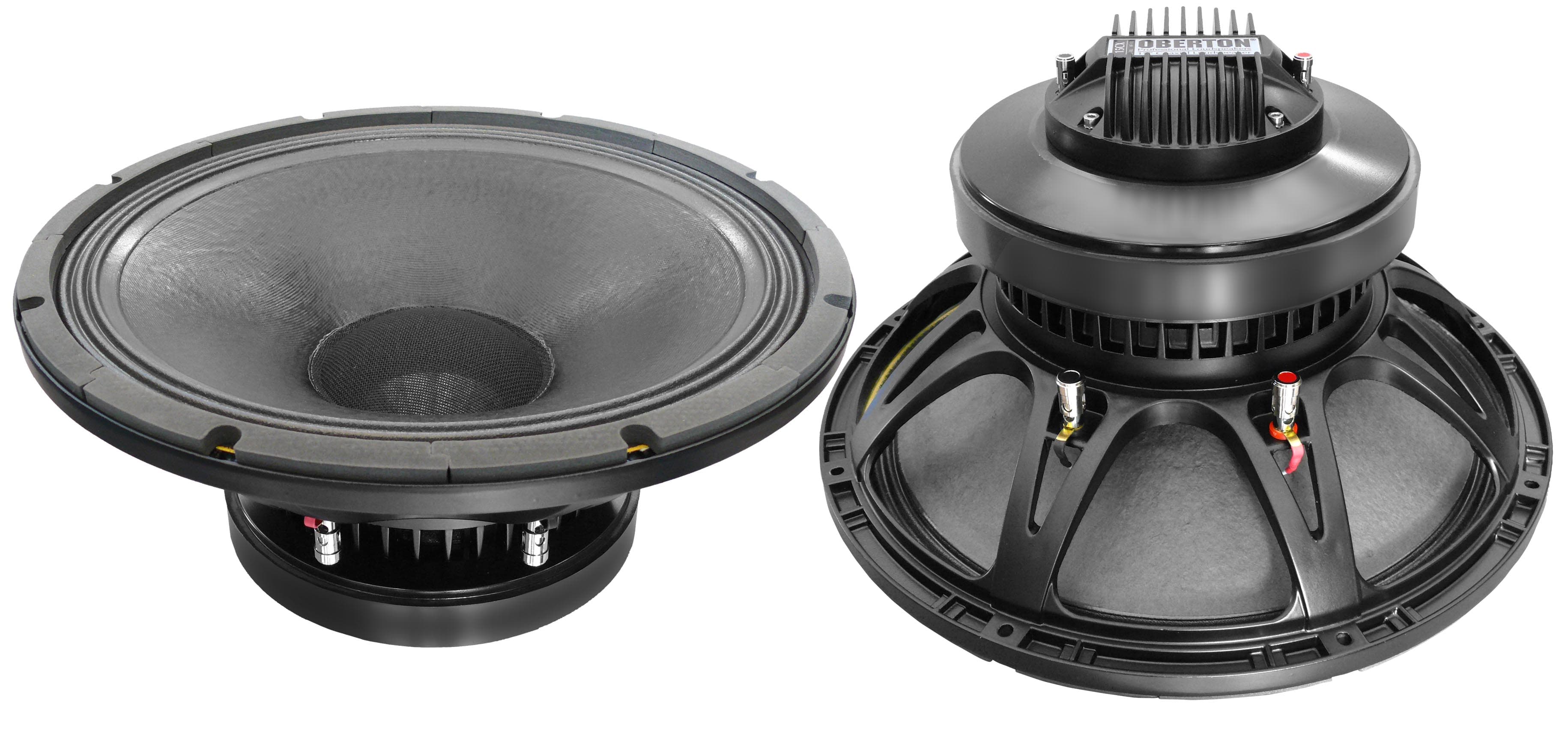

Oberton15CX

No current price

Fs38 Hz −15%

Qts0.35 −6%

Vas163.8 L +17%

BL18.4 T·m −7%

Xmax7 mm –

Sensitivity95.9 dB −1.1

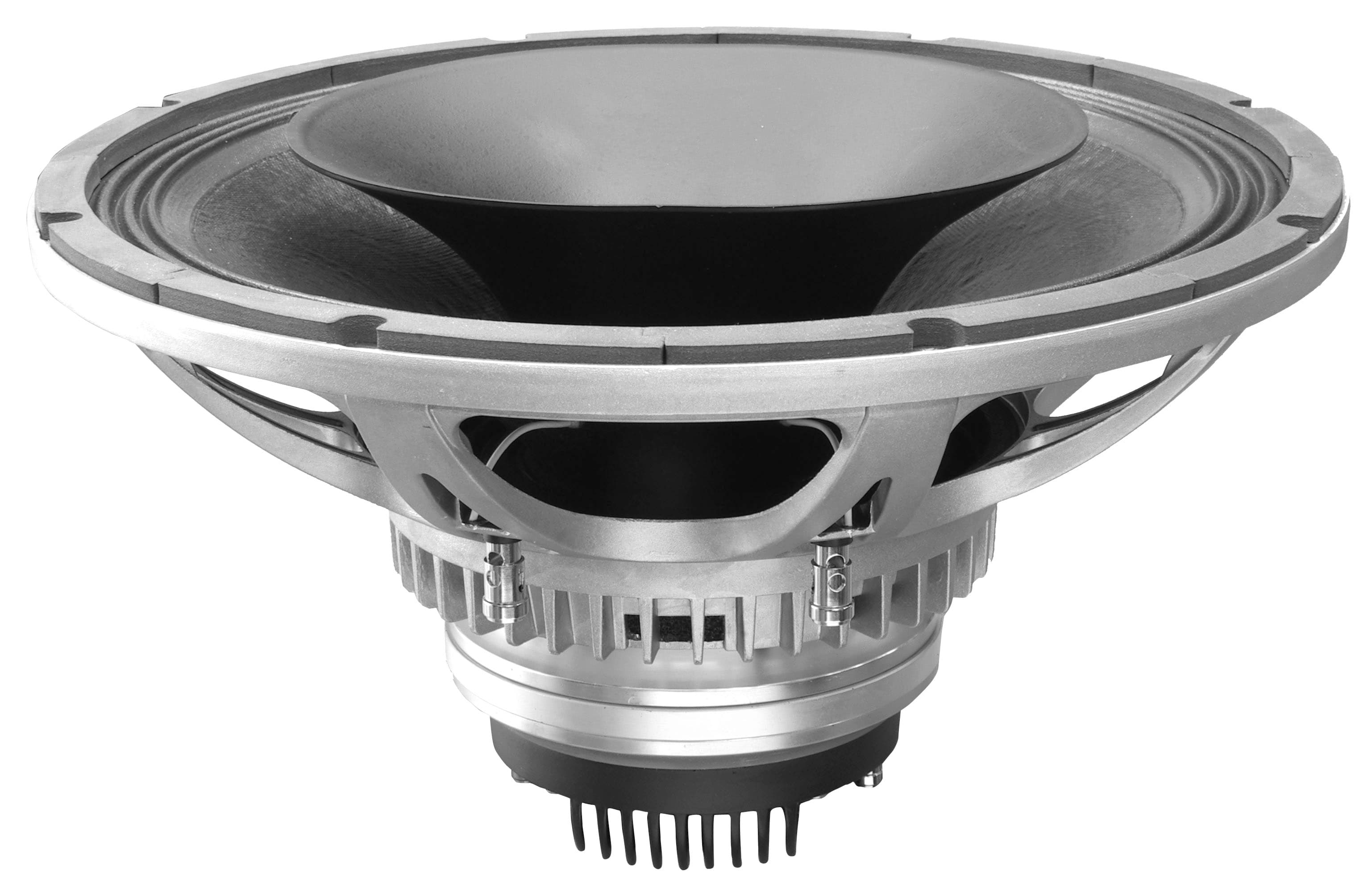

Oberton15HCX3572

No current price

Fs46 Hz –

Qts0.34 −8%

Vas140.7 L –

BL18.8 T·m −5%

Xmax7.3 mm +4%

Sensitivity98 dB +1

EminenceCANNABASS CB3015N-8

No current price

Fs41 Hz −10%

Qts0.39 +5%

Vas162.9 L +16%

BL17.8 T·m −10%

Xmax7.2 mm +3%

Sensitivity96.1 dB −0.9

BMS15CN680

No current price

Fs41 Hz −10%

Qts0.36 –

Vas137 L –

BL20.6 T·m +4%

Xmax5.5 mm −21%

Sensitivity95.9 dB −1.1

Oberton15MB35

No current price

Fs48 Hz +6%

Qts0.34 −9%

Vas115.1 L −18%

BL20.1 T·m –

Xmax6.8 mm −4%

Sensitivity97.6 dB +0.6

Eighteen Sound15NCX910BE

No current price

Fs55 Hz +22%

Qts0.33 −11%

Vas107 L −24%

BL21 T·m +6%

Xmax7 mm –

Sensitivity99.2 dB +2.2

Eighteen Sound15NCX910N

No current price

Fs55 Hz +22%

Qts0.33 −11%

Vas107 L −24%

BL21 T·m +6%

Xmax7 mm –

Sensitivity99.2 dB +2.2

Sica15 N 3 PL

No current price

Fs47 Hz +4%

Qts0.37 –

Vas140.4 L –

BL18.4 T·m −7%

Xmax10 mm +43%

Sensitivity98 dB +1

Oberton15MB500

No current price

Fs42 Hz −8%

Qts0.34 −8%

Vas161.5 L +15%

BL18.5 T·m −6%

Xmax7.8 mm +11%

Sensitivity97.2 dB –
