Overview
LF DriverBIANCO series
SB Audience
SB Audience BIANCO-15MW500
SB Audience BIANCO-15MW500 is a 15" 8 ohm LF driver rated at 500W RMS. The validated T/S data includes Fs 39Hz, Qts 0.40, Vas 171L, Xmax 7.6mm, sensitivity 96dB, plus 689cm³ Vd and 95 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £110.00.
Size
15"
Impedance
8Ω
RMS Power
500W
Sensitivity
96.0dB
EBP
95
Either alignment
Vd
689cm³

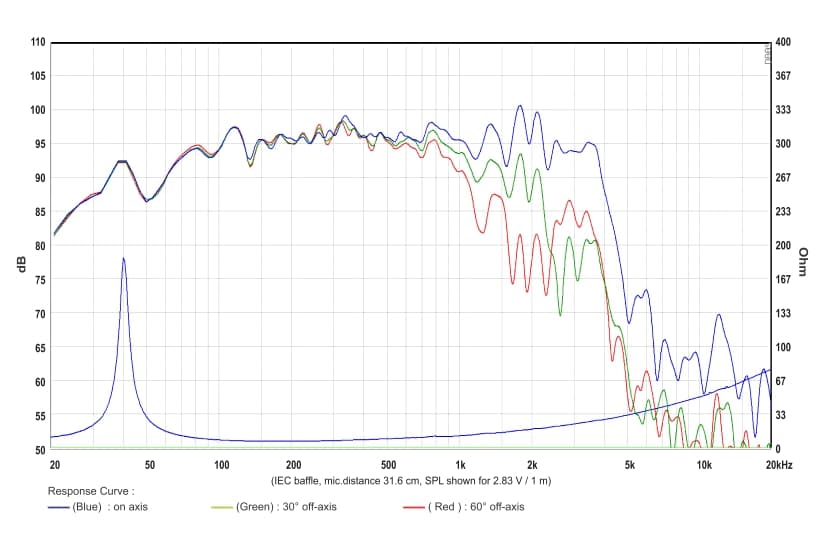

Frequency response
Manufacturer-provided response plots and related charts.

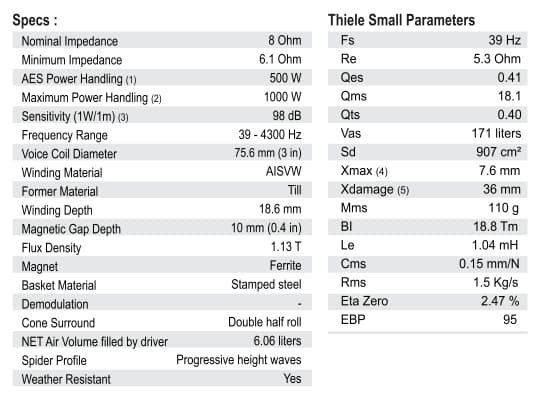

T/S Parameters
Valid
Fs39Hz
Qts0.40
Qes0.41
Qms18.1
Vas171.0L
Re5.3Ω
Le1.04mH
BL18.8Tm
Sd907cm²
Mms110g
Xmax7.6mm
SPL96dB
Power500W
Impedance8Ω
Min Impedance6.1Ω
F Low39Hz
F High4300Hz
Voice Coil76mm
Flux Density1.13T
Pricing & availability
Price definitionsPrice movement
Best current price
£110.00
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

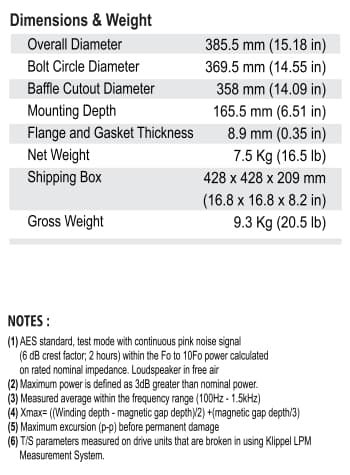

Dimensions & Physical
Weight7.5kg
Diameter385.5mm
Cutout Diameter358.0mm
Bolt Circle Diameter369.5mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
SB Audience
BIANCO-15MW500
15"
Best current price
£110.00
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
70%
Similarity
14% cheaper£94.10
SB Audience
BIANCO-15MW350
15"
Lower price
Xmax7.4mm-2%
Qts0.48+20%
BL16.9Tm-10%
Vas157.5L-8%
Qes0.49+20%
68%
Similarity
14% more£125.00
Celestion
TF1530E
15"
Higher price
Xmax6.5mm-14%
Qts0.33-18%
BL17Tm-9%
Vas191.6L+12%
Qes0.37-9%
55%
Similarity
15% more£126.45
SB Audience
BIANCO-15SW400
15"
Higher price
Xmax9.2mm+21%
Qts0.48+20%
BL19.8Tm+5%
Vas111.5L-35%
Qes0.49+20%
72%
Similarity
17% more£129.00
Fane
SOVEREIGN 15-600LF
15"
Higher price
Xmax6.5mm-14%
Qts0.39-3%
BL15.9Tm-15%
Vas236L+38%
Qes0.41+1%
63%
Similarity
22% more£134.05
PRV Audio
15W1600
15"
Higher price
Xmax7mm-8%
Qts0.42+5%
BL24.1Tm+28%
Vas91.2L-47%
Qes0.44+7%
65%
Similarity
26% more£138.54
B&C
15CL76
15"
Higher price
Xmax7mm-8%
Qts0.33-17%
BL21Tm+12%
Vas135L-21%
Qes0.34-17%
61%
Similarity
30% more£143.24
RCF
L15P530
15"
Higher price
Xmax7mm-8%
Qts0.48+20%
BL15.3Tm-19%
Vas160L-6%
Qes0.51+24%
65%
Similarity
36% more£149.39
Beyma
15MCS500
15"
Higher price
Xmax8mm+5%
Qts0.48+20%
BL17.6Tm-6%
Vas134L-22%
Qes0.5+22%
76%
Similarity
38% more£152.08
RCF
L15P540
15"
Higher price
Xmax7mm-8%
Qts0.39-3%
BL21.4Tm+14%
Vas100L-42%
Qes0.410%
87%
Similarity
41% more£155.00
Celestion
FTR15-3070E
15"
Higher price
Xmax7.8mm+2%
Qts0.38-5%
BL17.9Tm-5%
Vas145.8L-15%
Qes0.43+4%
58%
Similarity
47% more£161.93
FaitalPRO
15HP1010
15"
Higher price
Xmax9.8mm+28%
Qts0.37-8%
BL22Tm+17%
Vas107.5L-37%
Qes0.38-7%
79%
Similarity
47% more£162.00
Eminence
KAPPA-15LFA
15"
Higher price
Xmax5.5mm-28%
Qts0.38-5%
BL18.6Tm-1%
Vas159L-7%
Qes0.410%
