Overview
LF Driver15FW series
B&C
B&C 15FW88
B&C 15FW88 is a 15" 8 ohm LF driver rated at 700W RMS. The validated T/S data includes Fs 49Hz, Qts 0.43, Vas 103.7L, Xmax 8mm, sensitivity 96.4dB, plus 684cm³ Vd and 109 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £181.46.
Size
15"
Impedance
8Ω
RMS Power
700W
Sensitivity
96.4dB
98.0dBmanufacturer; using T/S-derived value (1.6dB delta).
EBP
109
Vented alignment
Vd
684cm³

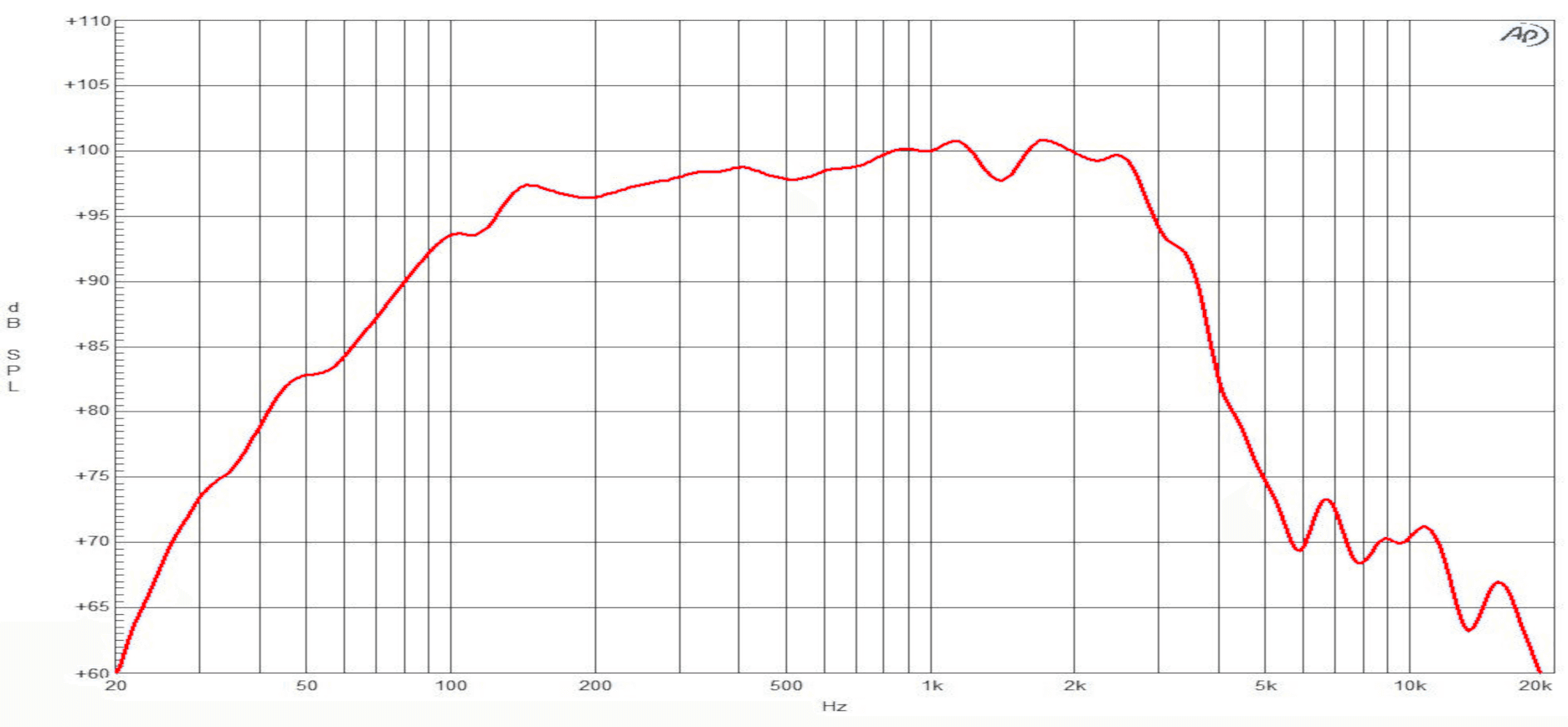

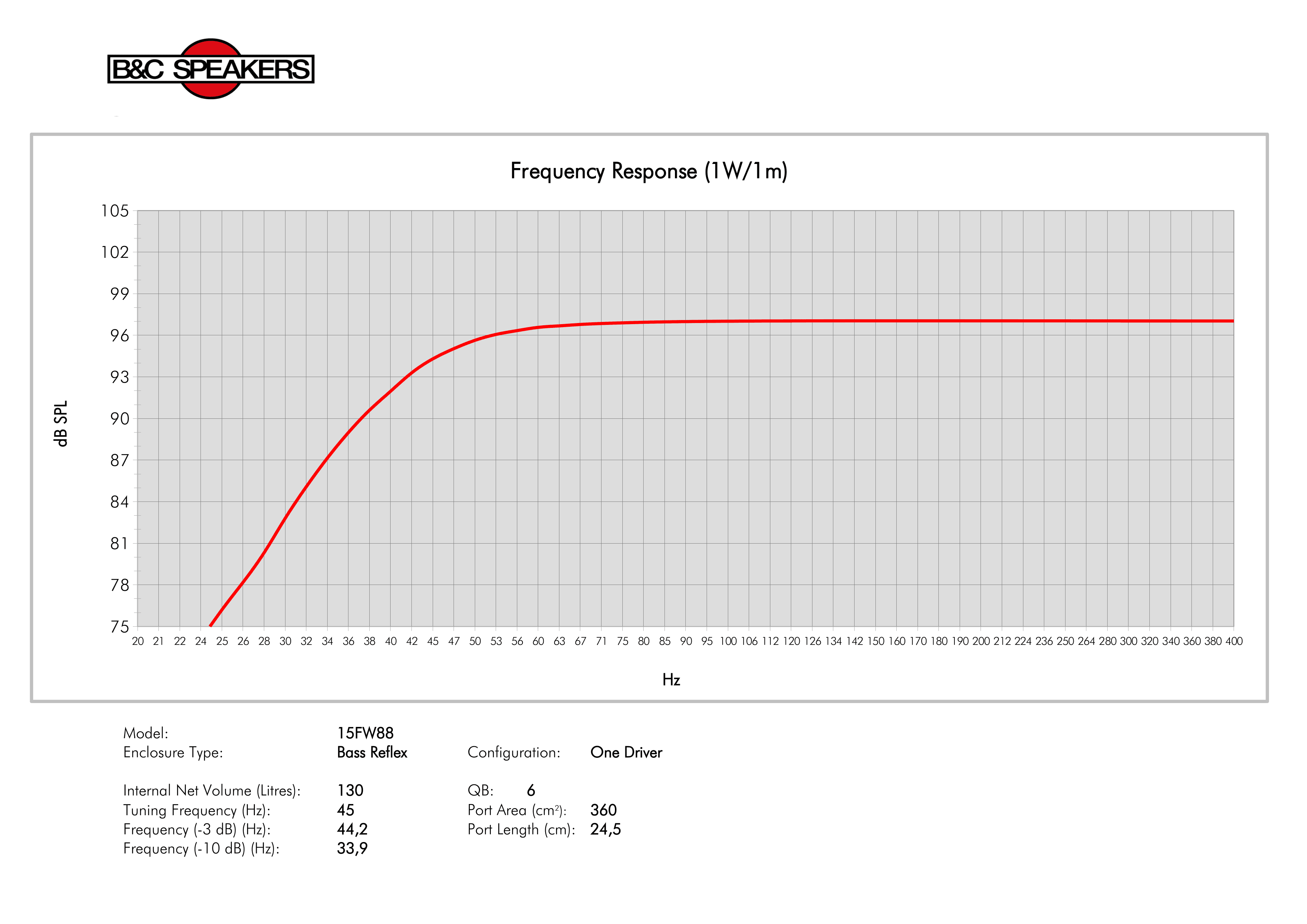

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs49Hz
Qts0.43
Qes0.45
Qms9.3
Vas103.7L
Re5.2Ω
Le0.81mH
BL19.3Tm
Sd855cm²
Mms107g
Xmax8.0mm
SPL96dB
Power700W
Power Nominal700W
Impedance8Ω
Min Impedance6.4Ω
F Low49Hz
F High3000Hz
Voice Coil88mm
Flux Density1.04T
Pricing & availability
Price definitionsPrice movement
Best current price
£181.46
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight9.0kg
Diameter393.0mm
Overall Depth174.0mm
Cutout Diameter357.0mm
Bolt Circle Diameter371.0mm
Additional Manufacturer Specs
Bl19.27 Tm
Fs49 Hz
Le0.81 mH
Re5.2 Ω
Sd855 cm² (132.53 in²)
Ebp109 Hz
Mms106.8 g
Qes0.45
Qms9.3
Qts0.43
Vas103.7 dm³ (3.66 ft³)
η02.63 %
ConeRCK15FW888
Xmax8 mm
Xvar9.5 mm
SpiderDouble Silicone
Cone ShapeExponential
Pole DesignT-Pole
Winding Depth21.5 mm (0.85 in)
Surround ShapeTriple Roll
Former MaterialGlass Fibre
Magnet MaterialFerrite
Nominal Diameter380 mm (15 in)
Winding MaterialAluminium
Magnetic Gap Depth11 mm (0.43 in)
Recommended Tuning45 Hz
Bolt Circle Diameter371 mm (14.61 in)
Recommended Enclosure130 dm³ (4.59 ft³)
Woofer Cone TreatmentWP Waterproof Front Side
Baffle Cutout Diameter357 mm (14.06 in)
Flange And Gasket Thickness14 mm (0.55 in)
Air Volume Occupied By Driver3.5 dm³ (0.12 ft³)
