LF DriverPW series
CIARE
CIARE PW396
CIARE PW396 is a 15" 8 ohm LF driver rated at 800W RMS. The validated T/S data includes Fs 43Hz, Qts 0.41, Vas 129L, Xmax 6.5mm, sensitivity 96dB, plus 553cm³ Vd and 105 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
800W
Sensitivity
96.0dB
99.0dBmanufacturer; using T/S-derived value (3.0dB delta).
EBP
105
Vented alignment
Vd
553cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence1,203 selected pixels of 1,749
T/S Parameters
Valid
Fs43Hz
Qts0.41
Qes0.41
Qms24.7
Vas129.0L
Re6.0Ω
Le1.30mH
BL20.5Tm
Sd850cm²
Mms107g
Xmax6.5mm
SPL96dB
Power800W
Power Nominal400W
Impedance8Ω
F Low35Hz
F High2000Hz
Voice Coil75mm
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight8.8kg
Diameter388.0mm
Overall Depth161.0mm
Cutout Diameter354.0mm
Bolt Circle Diameter370.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
CIARE
PW396
15"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
88%
Similarity
CIARE
PWA15.75
15"
Xmax7mm+8%
Qts0.39-5%
BL19.3Tm-6%
Vas135L+5%
Qes0.410%
85%
Similarity
RCF
M15P550
15"
Xmax7mm+8%
Qts0.37-10%
BL19.8Tm-3%
Vas140L+9%
Qes0.410%
84%
Similarity
£152.08
RCF
L15P540
15"
Xmax7mm+8%
Qts0.39-5%
BL21.4Tm+4%
Vas100L-22%
Qes0.410%
83%
Similarity
£197.38
RCF
MB15N301
15"
Xmax6mm-8%
Qts0.37-10%
BL19.2Tm-6%
Vas134L+4%
Qes0.39-5%
82%
Similarity
Lavoce
NBASS15-30
15"
Xmax6.6mm+2%
Qts0.36-12%
BL19.2Tm-6%
Vas143.1L+11%
Qes0.38-7%
78%
Similarity
£327.41
Eighteen Sound
15NTLW3500
15"
Xmax8.3mm+28%
Qts0.39-5%
BL19.5Tm-5%
Vas131L+2%
Qes0.4-2%
77%
Similarity
£470.84
Eighteen Sound
15NCX750H
15"
Xmax5.5mm-15%
Qts0.37-10%
BL18.5Tm-10%
Vas141L+9%
Qes0.4-2%
77%
Similarity
£454.74
Eighteen Sound
15NCX750
15"
Xmax5.5mm-15%
Qts0.37-10%
BL18.4Tm-10%
Vas141L+9%
Qes0.4-2%
76%
Similarity
£202.21
Eminence
OMEGA PRO-15-2KW-8
15"
Xmax7.4mm+14%
Qts0.44+7%
BL19.1Tm-7%
Vas142.5L+10%
Qes0.46+12%
76%
Similarity
£162.00
Eminence
KAPPA-15LFA
15"
Xmax5.5mm-15%
Qts0.38-7%
BL18.6Tm-9%
Vas159L+23%
Qes0.410%
75%
Similarity

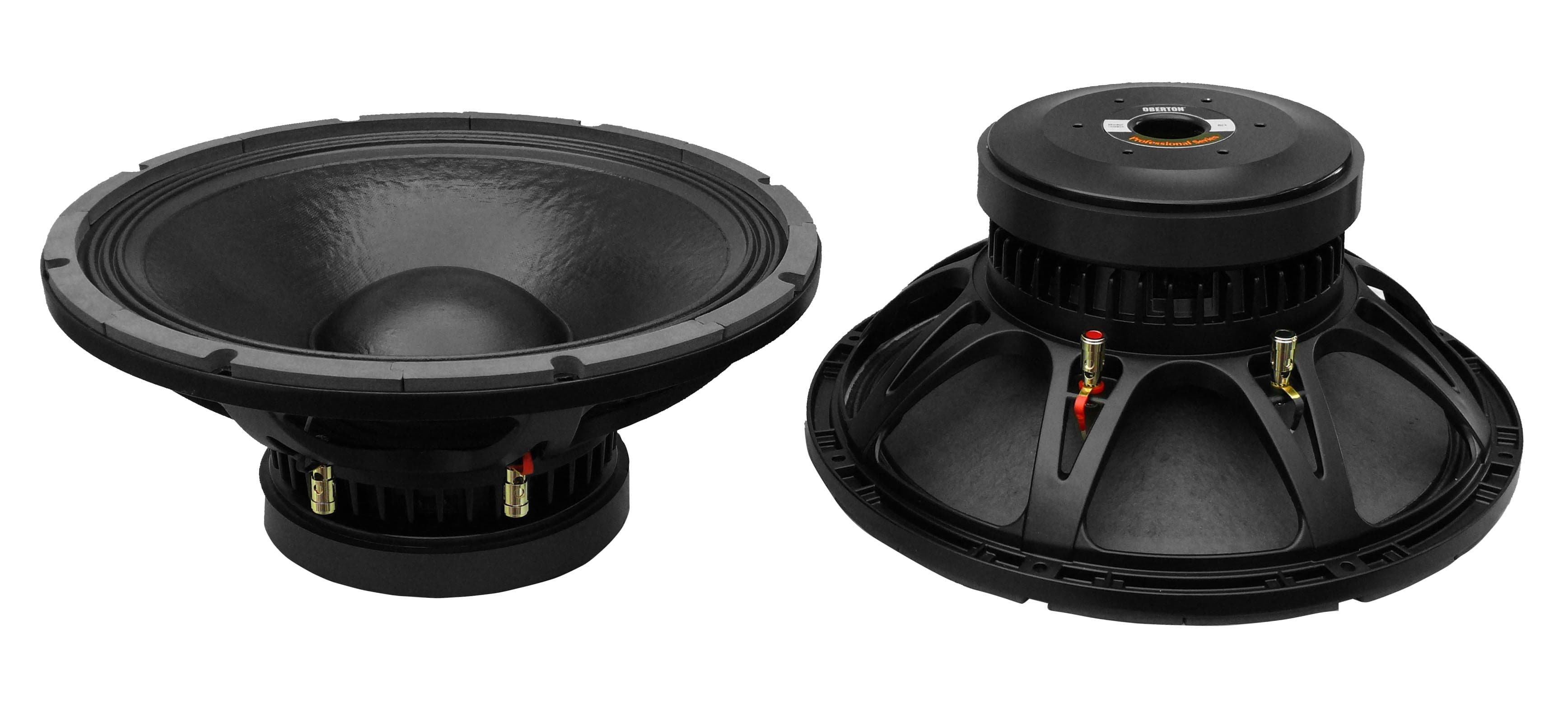

Oberton
