LF Driver15MB series
Oberton
Oberton 15MB35
Oberton 15MB35 is a 15" 8 ohm LF driver rated at 700W RMS. The validated T/S data includes Fs 48Hz, Qts 0.34, Vas 115.1L, Xmax 6.8mm, sensitivity 97.6dB, plus 560cm³ Vd and 136 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
700W
Sensitivity
97.6dB
200.0dBmanufacturer; using T/S-derived value (102.4dB delta).
EBP
136
Vented alignment
Vd
560cm³
T/S Parameters
Valid
Fs48Hz
Qts0.34
Qes0.35
Qms8.4
Vas115.1L
Re5.1Ω
Le0.64mH
BL20.1Tm
Sd830cm²
Mms93g
Xmax6.8mm
SPL98dB
Power700W
Impedance8Ω
Min Impedance6.0Ω
F Low45Hz
F High3500Hz
Voice Coil88mm
Flux Density1.15T
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

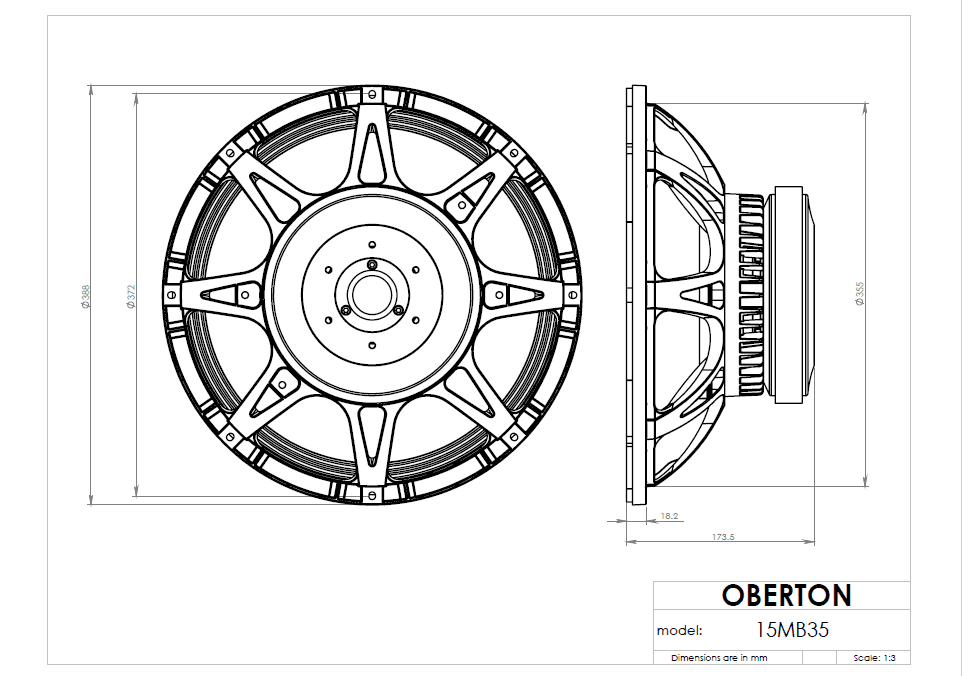

Dimensions & Physical
Weight9.2kg
Diameter388.0mm
Overall Depth173.5mm
Cutout Diameter355.0mm
Bolt Circle Diameter372.0mm
