Oberton 15XL400 8Ω
8 Ω · 50–3500 Hz
No current price
- Fs
- 49Hz
- Xmax
- 5.3mm
- SPL
- 99dB
- Pe
- 400W
- BL
- 18.9T·m
- Vd
- 436cm³
- Qts
- 0.34
- Vas
- 140L

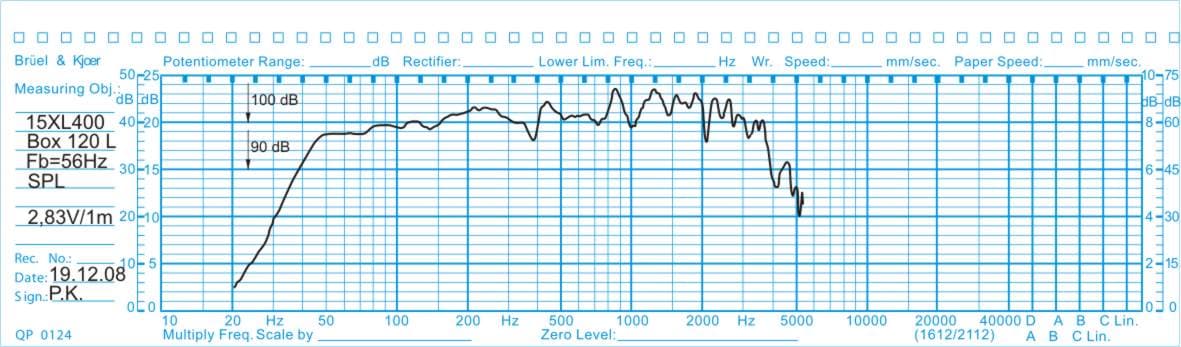

Published graphs
Oberton 15XL400 is a 15-inch 8 ohm LF driver rated at 400 W RMS. The validated T/S data includes Fs 49 Hz, Qts 0.34, Vas 140 L, Xmax 5.3 mm, sensitivity 98.7 dB, plus 436 cm³ Vd and 139 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 49Hz
- Qts
- 0.34
- Qes
- 0.35
- Qms
- 9.3
- Vas
- 140L
- Re
- 5.6Ω
- Le
- 0.76mH
Motor and cone
- BL
- 18.9T·m
- Sd
- 830cm²
- Mms
- 73g
- Xmax
- 5.3mm
- Vd †
- 436cm³
- Voice coil
- 77mm
- Flux density
- 1.33T
Power and response
- Sensitivity †
- 98.7dB
- Manufacturer sensitivity
- 200dB
- Power
- 400W
- Impedance
- 8Ω
- Min. impedance
- 6.4Ω
- Range
- 50–3500Hz
- EBP †
- 139 · Leans vented

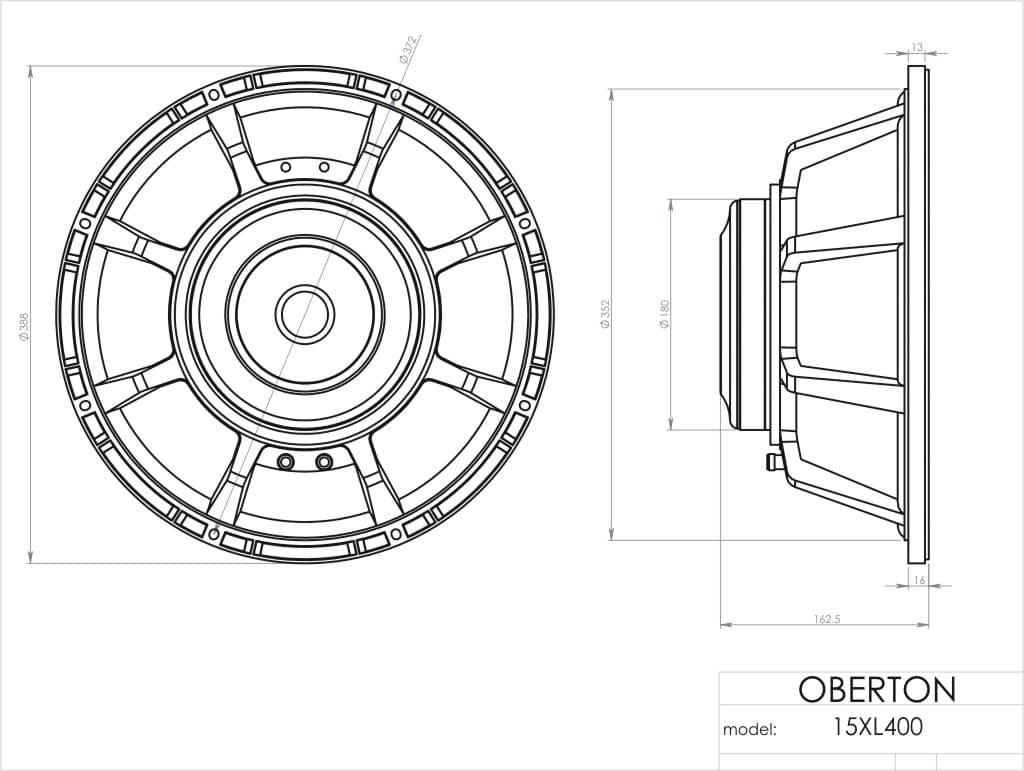

Size and mounting
- Diameter
- 388mm
- Cutout
- 352mm
- Bolt circle
- 372mm
- Depth
- 162.5mm
- Weight
- 7.5kg
Other published values
- Cms
- 0.15mm/N
- Power Program
- 800
Sensitivity shows 98.7 dB, calculated from the T/S values. Oberton publishes 200.0 dB, 101.3 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Oberton lists
LF · Primary · 15″
- BL
- 18.9T·m
- Fs
- 49Hz
- Le
- 0.76mH
- Re
- 5.6Ω
- Sd
- 830cm²
- Cms
- 0.15mm/N
- Mms
- 73g
- Qes
- 0.35
- Qms
- 9.3
- Qts
- 0.34
- SPL
- 98.7dB
- Vas
- 140L
- Xmax
- 5.3mm
- Power
- 400W
- Impedance
- 8Ω
- Flux density
- 1.33T
- Sensitivity
- 200dB
- Low limit
- 50Hz
- Power Program
- 800
- Calculated sensitivity †
- 98.7dB
- High limit
- 3500Hz
- Manufacturer sensitivity
- 200dB
- Min. impedance
- 6.4Ω
- Voice coil
- 77mm
- Weight
- 7.5kg
- Diameter
- 388mm
- Depth
- 162.5mm
- Cutout
- 352mm
- Bolt circle
- 372mm
