15-inch LF driver · 15H series · 100 mm voice coil · 400 W
Oberton 15H4CX72 8Ω
8 Ω · 50–18000 Hz
No current price
- Fs
- 56Hz
- Xmax
- 4.5mm
- SPL
- 99dB
- Pe
- 400W
- BL
- 18.2T·m
- Vd
- 338cm³
- Qts
- 0.37
- Vas
- 113L

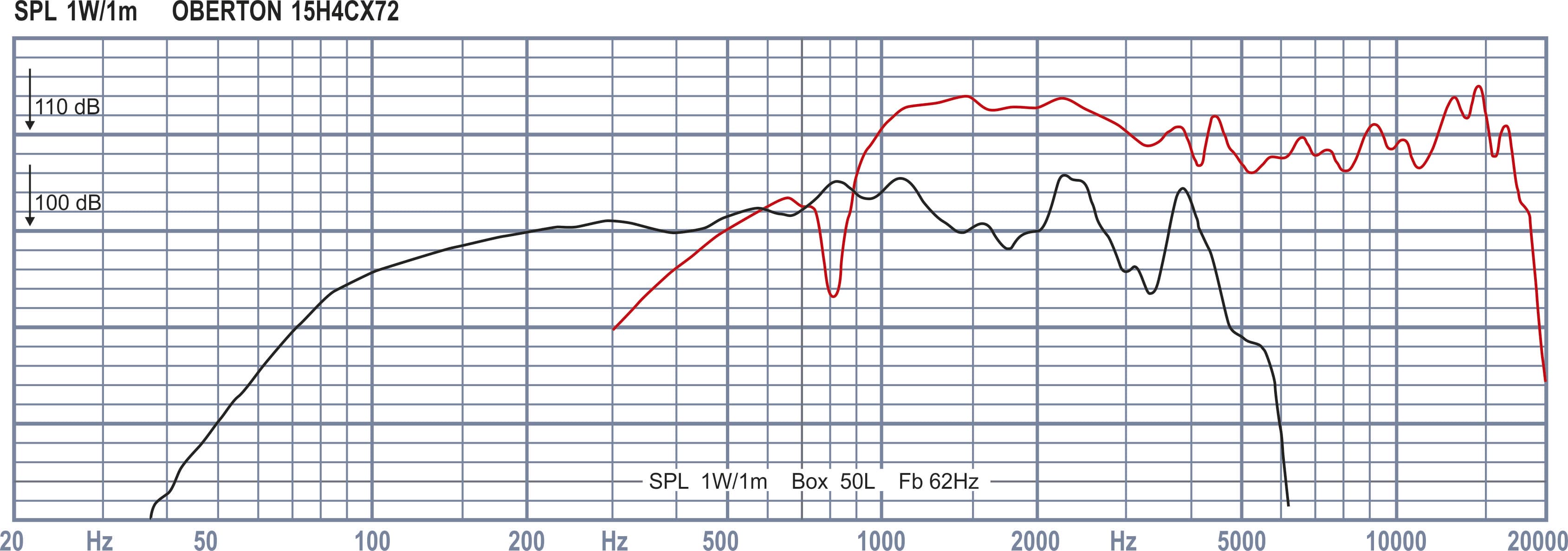

Published graphs
Oberton 15H4CX72 is a 15-inch 8 ohm LF driver rated at 400 W RMS. The validated T/S data includes Fs 56 Hz, Qts 0.37, Vas 113.1 L, Xmax 4.5 mm, sensitivity 99.3 dB, plus 338 cm³ Vd and 149 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 56Hz
- Qts
- 0.37
- Qes
- 0.38
- Qms
- 11.5
- Vas
- 113.1L
- Re
- 6.4Ω
- Le
- 0.38mH
Motor and cone
- BL
- 18.2T·m
- Sd
- 750cm²
- Mms
- 56g
- Xmax
- 4.5mm
- Vd †
- 338cm³
- Voice coil
- 100mm
- Flux density
- 1.37T
Power and response
- Sensitivity †
- 99.3dB
- Power
- 400W
- Impedance
- 8Ω
- Range
- 50–18000Hz
- EBP †
- 149 · Leans vented

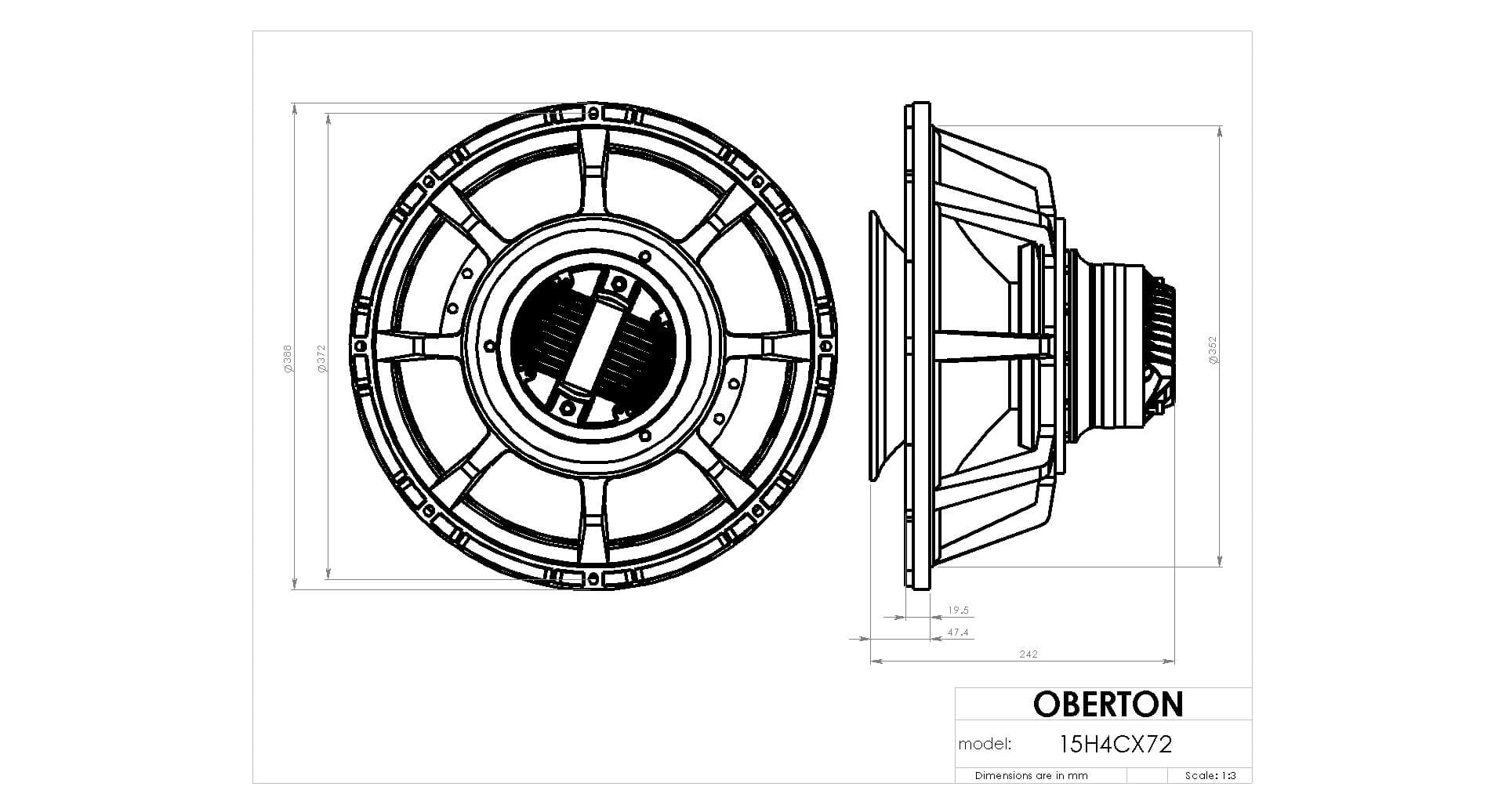

Size and mounting
- Diameter
- 388mm
- Cutout
- 352mm
- Bolt circle
- 372mm
- Depth
- 242mm
- Weight
- 10.5kg
Other published values
- Cms
- 0.14mm/N
- Power Program
- 800
† Calculated by bits from the published values
What this validation status means
Everything else Oberton lists
LF · Primary · 15″
- BL
- 18.2T·m
- Fs
- 56Hz
- Le
- 0.38mH
- Re
- 6.4Ω
- Sd
- 750cm²
- Cms
- 0.14mm/N
- Mms
- 56g
- Qes
- 0.38
- Qms
- 11.5
- Qts
- 0.37
- SPL
- 99.3dB
- Vas
- 113.1L
- Xmax
- 4.5mm
- Power
- 400W
- Impedance
- 8Ω
- Flux density
- 1.37T
- Low limit
- 50Hz
- Power Program
- 800
- Calculated sensitivity †
- 99.3dB
- High limit
- 18000Hz
- Voice coil
- 100mm
- Weight
- 10.5kg
- Diameter
- 388mm
- Depth
- 242mm
- Cutout
- 352mm
- Bolt circle
- 372mm
