P.Audio15BM-300B-V3
£100.00 · 47% less, betterFs48 Hz +17%, worse
Qts0.40 +11%, worse
Vas123.3 L −9%
BL19.2 T·m −10%
Xmax3.9 mm −13%, worse
Sensitivity97 dB +1.1
15-inch LF driver · 102 mm voice coil · 1,000 W
REDCATT 15FPM 8Ω
8 Ω
£187.78
Lautsprecherteile · 4 in stock · All 1 offer
- Fs
- 41Hz
- Xmax
- 4.5mm
- SPL
- 96dB
- Pe
- 1000W
- BL
- 21.3T·m
- Vd
- 409cm³
- Qts
- 0.36
- Vas
- 135L
REDCATT 15FPM is a 15-inch 8 ohm LF driver rated at 1000 W RMS. The validated T/S data includes Fs 41 Hz, Qts 0.36, Vas 134.9 L, Xmax 4.5 mm, sensitivity 95.9 dB, plus 409 cm³ Vd and 108 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £187.78.
The published T/S values agree with each other
Thiele/Small
- Fs
- 41Hz
- Qts
- 0.36
- Qes
- 0.38
- Qms
- 8.1
- Vas
- 134.9L
- Re
- 5.2Ω
- Le
- 1.17mH
Motor and cone
- BL
- 21.3T·m
- Sd
- 908cm²
- Mms
- 127g
- Xmax
- 4.5mm
- Vd †
- 409cm³
- Voice coil
- 102mm
Power and response
- Sensitivity †
- 95.9dB
- Manufacturer sensitivity
- 97.9dB
- Power
- 1000W
- Impedance
- 8Ω
- EBP †
- 108 · Leans vented
Size and mounting
- Diameter
- 392mm
- Cutout
- 360mm
- Bolt circle
- 373mm
- Weight
- 12kg
Other published values
- Xmech
- 16.5
- Power Peak
- 4000
Other dimensions
- Mounting Depth
- 150
Sensitivity shows 95.9 dB, calculated from the T/S values. REDCATT publishes 97.9 dB, 2.0 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else REDCATT lists
LF · Primary · 15″
- BL
- 21.3T·m
- Fs
- 41Hz
- Le
- 1.17mH
- Re
- 5.2Ω
- Sd
- 908cm²
- Mms
- 127g
- Qes
- 0.38
- Qms
- 8.1
- Qts
- 0.36
- SPL
- 95.9dB
- Vas
- 134.9L
- Xmax
- 4.5mm
- Xmech
- 16.5
- Power
- 1000W
- Impedance
- 8Ω
- Power Peak
- 4000
- Sensitivity
- 97.9dB
- Calculated sensitivity †
- 95.9dB
- Manufacturer sensitivity
- 97.9dB
- Voice coil
- 102mm
- Weight
- 12kg
- Diameter
- 392mm
- Mounting Depth
- 150
- Cutout
- 360mm
- Bolt circle
- 373mm
02
Compare
Same-size drivers, compared with the 15FPM. Clear differences are green when better and red when worse.
This driver15FPM
Best price
£187.78
Fs
41 Hz
Qts
0.36
Vas
134.9 L
BL
21.3 T·m
Xmax
4.5 mm
Sensitivity
95.9 dB
Power
1000 W

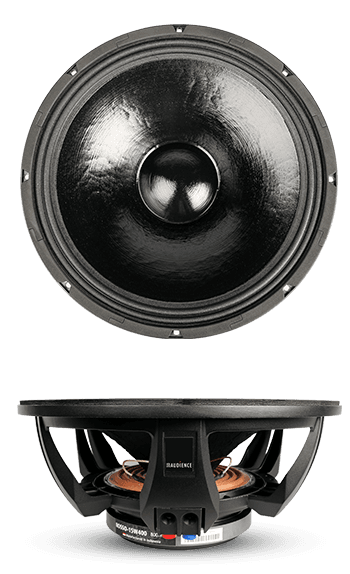

SB AudienceROSSO-15W400
£134.56 · 28% less, betterFs44 Hz +7%
Qts0.33 −8%
Vas140.1 L +4%
BL21.5 T·m –
Xmax8.3 mm +84%, better
Sensitivity97.5 dB +1.6
B&C15CL76
£138.54 · 26% less, betterFs42 Hz –
Qts0.33 −8%
Vas135 L –
BL21 T·m –
Xmax7 mm +56%, better
Sensitivity96.7 dB +0.8
FaitalPRO15HP1010
£161.93 · 14% less, betterFs40 Hz –
Qts0.37 –
Vas107.5 L −20%, better
BL22 T·m +3%
Xmax9.8 mm +117%, better
Sensitivity94.6 dB −1.3
REDCATT152FIND-2
£162.64 · 13% less, betterFs44 Hz +7%
Qts0.37 –
Vas128.5 L −5%
BL18.3 T·m −14%, worse
Xmax4.5 mm –
Sensitivity96.6 dB +0.7
FaitalPRO15FH530
£204.05 · 9% more, worseFs39 Hz −5%
Qts0.35 –
Vas140.6 L +4%
BL20.7 T·m –
Xmax9.3 mm +106%, better
Sensitivity95.7 dB –
Beyma15MCB700
£211.91 · 13% more, worseFs44 Hz +7%
Qts0.34 −6%
Vas148 L +10%
BL20 T·m −6%
Xmax7 mm +56%, better
Sensitivity97.5 dB +1.6
BMS15N620
£216.43 · 15% more, worseFs41 Hz –
Qts0.35 –
Vas154 L +14%, worse
BL20.6 T·m −3%
Xmax5.5 mm +22%, better
Sensitivity96.6 dB +0.7
B&C15NDL88
£230.60 · 23% more, worseFs45 Hz +10%
Qts0.34 −6%
Vas126 L −7%
BL20.1 T·m −6%
Xmax8 mm +78%, better
Sensitivity97.1 dB +1.2
BMS15C262
£254.59 · 36% more, worseFs43 Hz +4%
Qts0.34 −6%
Vas138 L –
BL20.6 T·m −3%
Xmax2.5 mm −44%, worse
Sensitivity96.7 dB +0.8
Beyma15LEX1000ND
£297.99 · 59% more, worseFs41 Hz –
Qts0.37 –
Vas113 L −16%, better
BL21.9 T·m –
Xmax10 mm +122%, better
Sensitivity94.8 dB −1.1
BMS15CN682
£384.52 · 105% more, worseFs41 Hz –
Qts0.36 –
Vas137 L –
BL20.6 T·m −3%
Xmax5.5 mm +22%, better
Sensitivity95.9 dB –
Eighteen Sound15NCX750
£454.74 · 142% more, worseFs49 Hz +20%, worse
Qts0.37 –
Vas141 L +5%
BL18.4 T·m −14%, worse
Xmax5.5 mm +22%, better
Sensitivity98.2 dB +2.3, better
Eighteen Sound15NCX750H
£470.84 · 151% more, worseFs49 Hz +20%, worse
Qts0.37 –
Vas141 L +5%
BL18.5 T·m −13%, worse
Xmax5.5 mm +22%, better
Sensitivity98.2 dB +2.3, better
P.AudioE15-300S-V2
No current priceFs44 Hz +7%
Qts0.36 –
Vas156.2 L +16%, worse
BL20.1 T·m −6%
Xmax4.3 mm −6%
Sensitivity97.5 dB +1.6
P.Audio15FT-76MB
No current priceFs42 Hz –
Qts0.35 –
Vas150.9 L +12%, worse
BL20.4 T·m −4%
Xmax4.7 mm +4%
Sensitivity96.8 dB +0.9
Oberton15H4CX72
No current priceFs56 Hz +37%, worse
Qts0.37 –
Vas113.1 L −16%, better
BL18.2 T·m −14%, worse
Xmax4.5 mm –
Sensitivity99.3 dB +3.4, better
P.Audio15NX-76MB
No current priceFs40 Hz –
Qts0.34 −6%
Vas115.6 L −14%, better
BL21.4 T·m –
Xmax4.8 mm +6%
Sensitivity95.3 dB −0.6
BMS15CN680
No current priceFs41 Hz –
Qts0.36 –
Vas137 L –
BL20.6 T·m −3%
Xmax5.5 mm +22%, better
Sensitivity95.9 dB –
LavoceNBASS15-30
No current priceFs42 Hz –
Qts0.36 –
Vas143.1 L +6%
BL19.2 T·m −10%
Xmax6.6 mm +47%, better
Sensitivity96.5 dB +0.6
Oberton15XL400
No current priceFs49 Hz +19%, worse
Qts0.34 −6%
Vas140 L +4%
BL18.9 T·m −11%, worse
Xmax5.3 mm +17%, better
Sensitivity98.7 dB +2.8, better
Oberton15NCX
No current priceFs44 Hz +7%
Qts0.36 –
Vas138.4 L –
BL18.6 T·m −13%, worse
Xmax7.8 mm +72%, better
Sensitivity96.9 dB +1
RCFMB15N301
No current priceFs48 Hz +17%, worse
Qts0.37 –
Vas134 L –
BL19.2 T·m −10%
Xmax6 mm +33%, better
Sensitivity97.8 dB +1.9
P.AudioP150/2228
No current priceFs51 Hz +24%, worse
Qts0.35 –
Vas88.3 L −35%, better
BL23.9 T·m +12%, better
Xmax4.0 mm −12%, worse
Sensitivity97 dB +1.1
Sica15 PNS 4
No current priceFs37 Hz −9%
Qts0.35 –
Vas116.3 L −14%, better
BL22.7 T·m +7%
Xmax9 mm +100%, better
Sensitivity94 dB −1.9
P.AudioP150/2227
No current priceFs45 Hz +10%
Qts0.34 −6%
Vas117.9 L −13%, better
BL22.5 T·m +6%
Xmax5.5 mm +22%, better
Sensitivity96.9 dB +1
RCFM15P550
No current priceFs45 Hz +10%
Qts0.37 –
Vas140 L +4%
BL19.8 T·m −7%
Xmax7 mm +56%, better
Sensitivity97 dB +1.1
P.Audio15BM-500B-V3
No current priceFs41 Hz –
Qts0.37 –
Vas183.4 L +36%, worse
BL17.8 T·m −17%, worse
Xmax4.8 mm +7%
Sensitivity96.9 dB +1
Sica15 N 3 PL
No current priceFs47 Hz +14%, worse
Qts0.37 –
Vas140.4 L +4%
BL18.4 T·m −13%, worse
Xmax10 mm +122%, better
Sensitivity98 dB +2.1, better
P.Audio15BM-400B-V3
No current priceFs48 Hz +17%, worse
Qts0.40 +11%, worse
Vas123.3 L −9%
BL19.2 T·m −10%
Xmax3.9 mm −13%, worse
Sensitivity97 dB +1.1
Tune the match
Choose the published values that matter to your design. Size stays matched to this driver.
Qts
Qes
VasL
Xmaxmm
BLTm
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
Lautsprecherteile | £187.78, the lowest price | 4 in stock | Visit shop at Lautsprecherteile |
Best price over time
Tracked since 1 Oct
