15-inch LF driver · 75 mm voice coil · 400 W

Sica 15 N 3 PL 8Ω

Name: Sica 15 N 3 PL 8 Ohm
Brand: Sica
SKU: 15 N 3 PL

8 Ω

No current price

View offers

Open in 00 Simulator

Fs: 47Hz
Xmax: 10mm
SPL: 98dB
Pe: 400W
BL: 18.4T·m
Vd: 855cm³
Qts: 0.37
Vas: 140L

See all 26 specs

Specifications

Published by Sica

Manufacturer page

Datasheet PDF

Sica 15 N 3 PL is a 15-inch 8 ohm LF driver rated at 400 W RMS. The validated T/S data includes Fs 47 Hz, Qts 0.37, Vas 140.4 L, Xmax 10 mm, sensitivity 98 dB, plus 855 cm³ Vd and 127 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

The published T/S values agree with each other

Thiele/Small

Fs: 47Hz
Qts: 0.37
Qes: 0.37
Qms: 11.9
Vas: 140.4L
Re: 5.1Ω
Le: 0.74mH

Motor and cone

BL: 18.4T·m
Sd: 855cm²
Mms: 85g
Xmax: 10mm
Vd †: 855cm³
Voice coil: 75mm
Flux density: 1.47T

Power and response

Sensitivity †: 98dB
Manufacturer sensitivity: 99.8dB
Power: 400W
Impedance: 8Ω
EBP †: 127 · Leans vented

Size and mounting

Diameter: 388mm
Cutout: 355mm
Bolt circle: 371mm
Depth: 161mm
Weight: 4.2kg

Other published values

Cms: 0.14mm/N
Power Program: 800

Sensitivity shows 98.0 dB, calculated from the T/S values. Sica publishes 99.8 dB, 1.8 dB apart.

† Calculated by bits from the published values

What this validation status means

Everything else Sica lists

LF · Primary · 15″

BL: 18.4T·m
Fs: 47Hz
Le: 0.74mH
Re: 5.1Ω
Sd: 855cm²
Cms: 0.14mm/N
Mms: 85g
Qes: 0.37
Qms: 11.9
Qts: 0.37
SPL: 98dB
Vas: 140.4L
Xmax: 10mm
Power: 400W
Impedance: 8Ω
Flux density: 1.47T
Sensitivity: 99.8dB
Power Program: 800
Calculated sensitivity †: 98dB
Manufacturer sensitivity: 99.8dB
Voice coil: 75mm
Weight: 4.2kg
Diameter: 388mm
Depth: 161mm
Cutout: 355mm
Bolt circle: 371mm

Compare

Same-size drivers, compared with the 15 N 3 PL. Clear differences are green when better and red when worse.

This driver15 N 3 PL

Best price

–

47 Hz

Qts

0.37

Vas

140.4 L

18.4 T·m

Xmax

10 mm

Sensitivity

98 dB

Power

400 W

LavoceWAF153.00

£135.11

Fs43 Hz −8%

Qts0.37 –

Vas146.3 L +4%

BL17.9 T·m −3%

Xmax7 mm −30%

Sensitivity96.8 dB −1.2

REDCATT152FIND-2

£160.94

Fs44 Hz −6%

Qts0.37 –

Vas128.5 L −8%

BL18.3 T·m –

Xmax4.5 mm −55%

Sensitivity96.6 dB −1.4

FaitalPRO15HP1010

£161.93

Fs40 Hz −15%

Qts0.37 –

Vas107.5 L −23%

BL22 T·m +19%

Xmax9.8 mm –

Sensitivity94.6 dB −3.4

EminenceKAPPALITE 3015

£165.00

Fs45 Hz −4%

Qts0.34 −8%

Vas153 L +9%

BL18.6 T·m –

Xmax5.9 mm −41%

Sensitivity97.9 dB –

FaitalPRO15FH530

£201.91

Fs39 Hz −17%

Qts0.35 −5%

Vas140.6 L –

BL20.7 T·m +12%

Xmax9.3 mm −8%

Sensitivity95.7 dB −2.3

FaitalPRO15FH520

£212.89

Fs36 Hz −23%

Qts0.39 +5%

Vas186.5 L +33%

BL18.4 T·m –

Xmax8.8 mm −13%

Sensitivity95.3 dB −2.7

B&C15NDL88

£227.25

Fs45 Hz −4%

Qts0.34 −8%

Vas126 L −10%

BL20.1 T·m +9%

Xmax8 mm −20%

Sensitivity97.1 dB −0.9

Beyma15LEX1000ND

£294.86

Fs41 Hz −13%

Qts0.37 –

Vas113 L −20%

BL21.9 T·m +19%

Xmax10 mm –

Sensitivity94.8 dB −3.2

Sica15 S 4 PL

£303.29

Fs40 Hz −16%

Qts0.32 −14%

Vas127.6 L −9%

BL22.5 T·m +22%

Xmax10 mm –

Sensitivity95.8 dB −2.2

Eighteen Sound15NTLW3500

£319.87

Fs45 Hz −4%

Qts0.39 +5%

Vas131 L −7%

BL19.5 T·m +6%

Xmax8.3 mm −17%

Sensitivity96.8 dB −1.2

BMS15CN682

£384.52

Fs41 Hz −13%

Qts0.36 –

Vas137 L –

BL20.6 T·m +12%

Xmax5.5 mm −45%

Sensitivity95.9 dB −2.1

Eighteen Sound15NCX750

£454.74

Fs49 Hz +4%

Qts0.37 –

Vas141 L –

BL18.4 T·m –

Xmax5.5 mm −45%

Sensitivity98.2 dB –

Eighteen Sound15NCX750H

£470.84

Fs49 Hz +4%

Qts0.37 –

Vas141 L –

BL18.5 T·m –

Xmax5.5 mm −45%

Sensitivity98.2 dB –

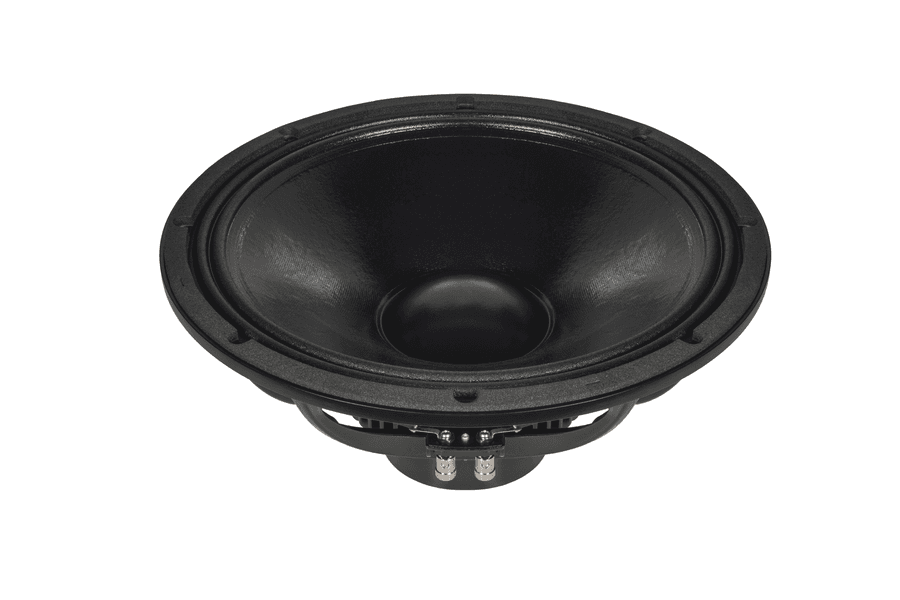

Eighteen Sound15ND840
