LF Driver15HCX series
Oberton
Oberton 15HCX3572
Oberton 15HCX3572 is a 15" 8 ohm LF driver rated at 450W RMS. The validated T/S data includes Fs 46Hz, Qts 0.34, Vas 140.7L, Xmax 7.3mm, sensitivity 98dB, plus 601cm³ Vd and 132 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
450W
Sensitivity
98.0dB
EBP
132
Vented alignment
Vd
601cm³
T/S Parameters
Valid
Fs46Hz
Qts0.34
Qes0.35
Qms11.6
Vas140.7L
Re5.3Ω
Le0.57mH
BL18.8Tm
Sd829cm²
Mms81g
Xmax7.3mm
SPL98dB
Power450W
Impedance8Ω
F Low50Hz
F High16000Hz
Voice Coil88mm
Flux Density1.10T
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

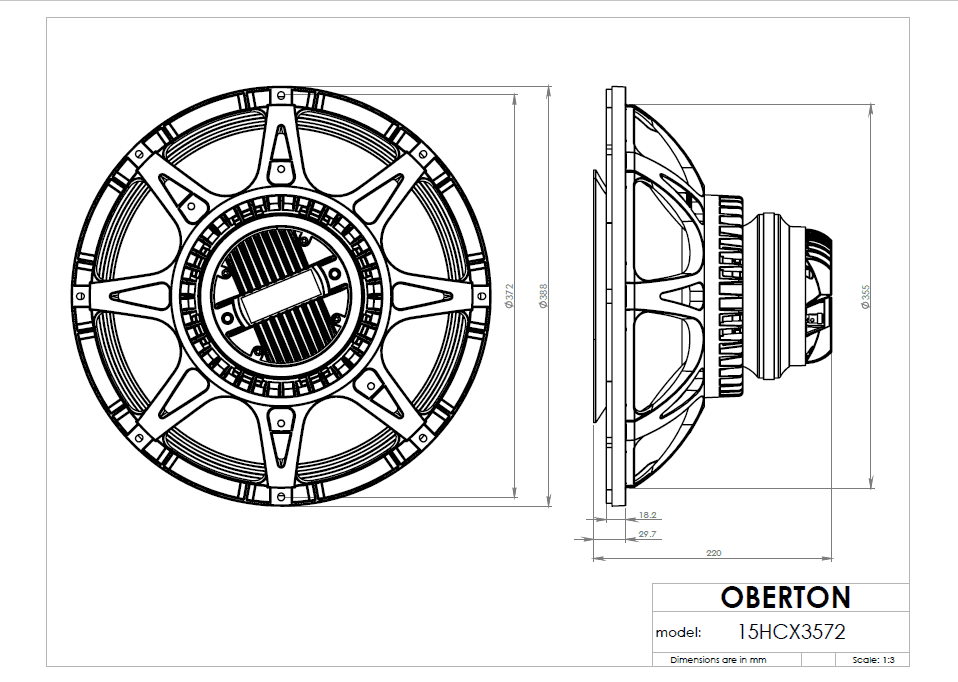

Dimensions & Physical
Weight7.0kg
Diameter388.0mm
Overall Depth220.0mm
Cutout Diameter355.0mm
Bolt Circle Diameter372.0mm
