15-inch LF driver

Eighteen Sound 15NCX910BE 8Ω

Name: Eighteen Sound 15NCX910BE 8 Ohm
Brand: Eighteen Sound
SKU: 15NCX910BE

8 Ω · 50–4000 Hz

No current price

View offers

Open in 00 Simulator

Fs: 55Hz
Xmax: 7mm
SPL: 99dB
Pe: –
BL: 21T·m
Vd: 617cm³
Qts: 0.33
Vas: 107L

See all 21 specs

Curve provenanceInspect 2 traces

These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works

frequency response
Frequency response
Trace datasheet-response-trace-poc/v1
240 plotted pointsMedium confidence1,419 selected pixels of 1,700
Manufacturer datasheet, page 2
impedance
Impedance response
Trace datasheet-response-trace-poc/v1
240 plotted pointsMedium confidence1,378 selected pixels of 1,402
Manufacturer datasheet, page 2

Published graphs

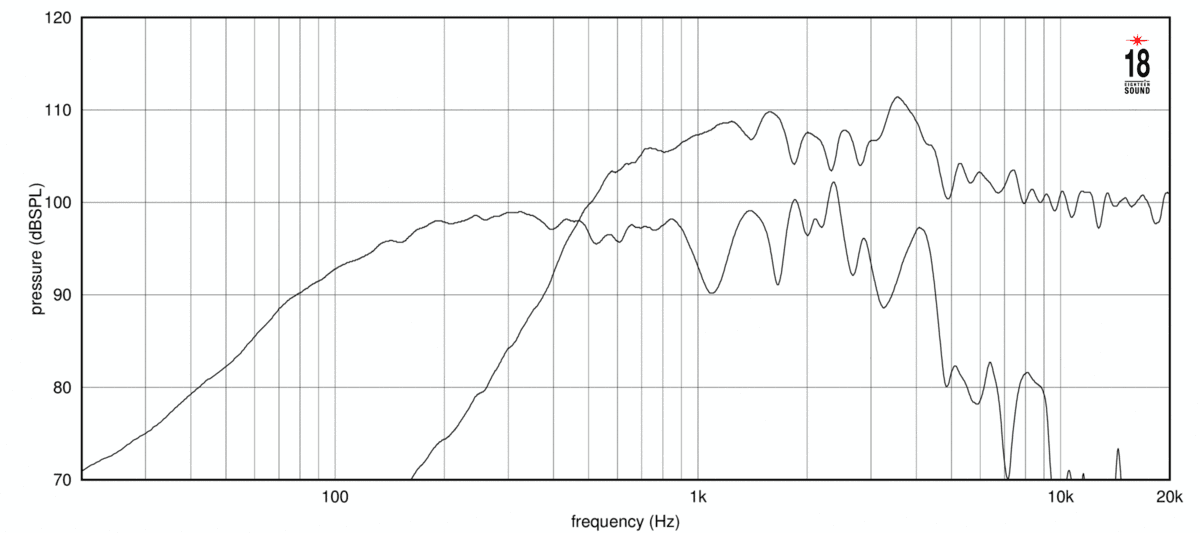

Eighteen Sound 15NCX910BE manufacturer graph 1

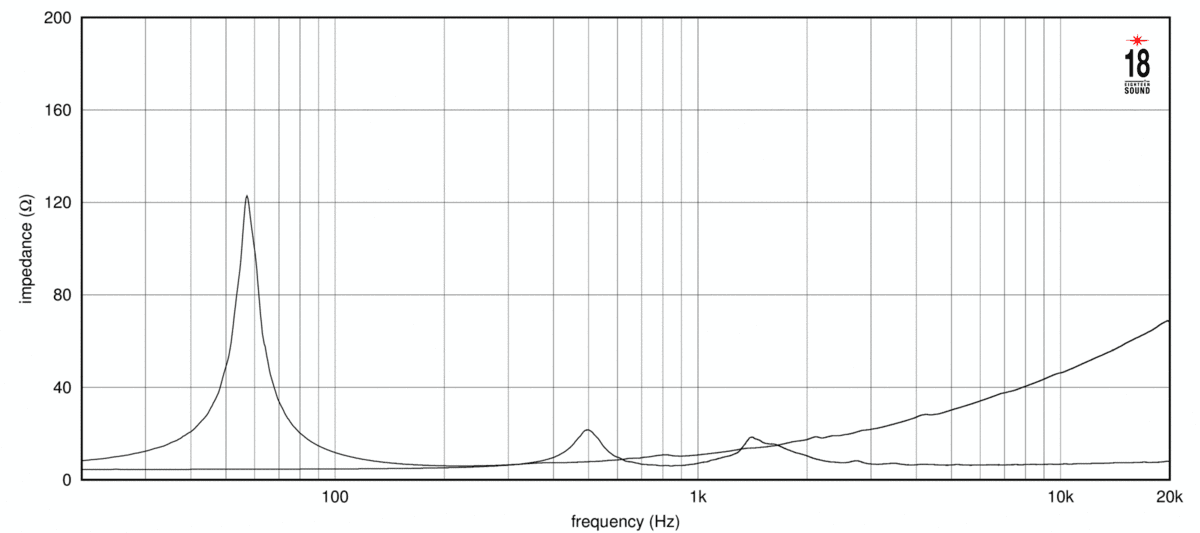

Eighteen Sound 15NCX910BE manufacturer graph 2

Specifications

Published by Eighteen Sound

Manufacturer page

Datasheet PDF

Eighteen Sound 15NCX910BE is a 15-inch 8 ohm LF driver. The validated T/S data includes Fs 55 Hz, Qts 0.33, Vas 107 L, Xmax 7 mm, sensitivity 99.2 dB, plus 617 cm³ Vd and 162 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

The published T/S values agree with each other

Thiele/Small

Fs: 55Hz
Qts: 0.33
Qes: 0.34
Qms: 8.2
Vas: 107L
Re: 5Ω
Le: 1.10mH

Motor and cone

BL: 21T·m
Sd: 881cm²
Mms: 86g
Xmax: 7mm
Vd †: 617cm³

Power and response

Sensitivity †: 99.2dB
Impedance: 8Ω
Range: 50–4000Hz
EBP †: 162 · Leans vented

Size and mounting

Diameter: 393mm
Cutout: 356mm
Bolt circle: 371mm
Depth: 209mm
Weight: 6.5kg

† Calculated by bits from the published values

What this validation status means

Everything else Eighteen Sound lists

LF · Primary · 15″

BL: 21T·m
Fs: 55Hz
Le: 1.10mH
Re: 5Ω
Sd: 881cm²
Mms: 86g
Qes: 0.34
Qms: 8.2
Qts: 0.33
SPL: 99.2dB
Vas: 107L
Xmax: 7mm
Impedance: 8Ω
Low limit: 50Hz
Calculated sensitivity †: 99.2dB
High limit: 4000Hz
Weight: 6.5kg
Diameter: 393mm
Depth: 209mm
Cutout: 356mm
Bolt circle: 371mm

Compare

Same-size drivers, compared with the 15NCX910BE. Clear differences are green when better and red when worse.

This driver15NCX910BE

Best price

–

55 Hz

Qts

0.33

Vas

107 L

21 T·m

Xmax

7 mm

Sensitivity

99.2 dB

Power

–

B&C15CL76

£127.74

Fs42 Hz −24%

Qts0.33 –

Vas135 L +26%

BL21 T·m –

Xmax7 mm –

Sensitivity96.7 dB −2.5

SB AudienceROSSO-15W400

£134.56

Fs44 Hz −20%

Qts0.33 –

Vas140.1 L +31%

BL21.5 T·m –

Xmax8.3 mm +18%

Sensitivity97.5 dB −1.7

REDCATT15FIND

£167.38

Fs42 Hz −24%

Qts0.36 +9%

Vas96.4 L −10%

BL24.6 T·m +17%

Xmax6.8 mm −4%

Sensitivity94.9 dB −4.3

RCFL15P540

£173.78

Fs50 Hz −9%

Qts0.39 +18%

Vas100 L −7%

BL21.4 T·m –

Xmax7 mm –

Sensitivity96.9 dB −2.3

SB AudienceROSSO-15MW500

£173.91

Fs42 Hz −24%

Qts0.33 –

Vas121.3 L +13%

BL23.2 T·m +10%

Xmax8.4 mm +20%

Sensitivity96.1 dB −3.1

BMS15S330

£194.97

Fs39 Hz −29%

Qts0.32 −3%

Vas152 L +42%

BL23 T·m +10%

Xmax8 mm +14%

Sensitivity96.3 dB −2.9

Beyma15MCB700

£207.83

Fs44 Hz −20%

Qts0.34 +3%

Vas148 L +38%

BL20 T·m −5%

Xmax7 mm –

Sensitivity97.5 dB −1.7

B&C15NDL88

£225.24

Fs45 Hz −18%

Qts0.34 +3%

Vas126 L +18%

BL20.1 T·m −4%

Xmax8 mm +14%

Sensitivity97.1 dB −2.1

Beyma15MC700ND

£226.76

Fs49 Hz −11%

Qts0.31 −6%

Vas105 L –

BL22.6 T·m +8%

Xmax7 mm –

Sensitivity97.6 dB −1.6

Beyma14MC700ND

£229.73

Fs51 Hz −7%

Qts0.28 −15%

Vas78 L −27%

BL22 T·m +5%

Xmax7 mm –

Sensitivity97.4 dB −1.8

Sica15 PF 3

£234.41

Fs45 Hz −18%

Qts0.31 −6%

Vas117.6 L +10%

BL21.9 T·m +5%

Xmax8 mm +14%

Sensitivity97.1 dB −2.1

Eighteen Sound15NW530

£243.16

Fs43 Hz −22%

Qts0.33 –

Vas154 L +44%

BL22 T·m +5%

Xmax7.5 mm +7%

Sensitivity97.5 dB −1.7

Eighteen Sound15MB1000

£259.50

Fs48 Hz −13%

Qts0.31 −6%

Vas132.5 L +24%

BL21 T·m –

Xmax6 mm −14%

Sensitivity98.6 dB −0.6

Sica15 PFS 4

£267.10

Fs39 Hz −29%

Qts0.34 +3%

Vas103.9 L –

BL24.2 T·m +15%

Xmax8 mm +14%

Sensitivity94.2 dB −5

Sica15 K 4 PL

£305.62

Fs47 Hz −15%

Qts0.30 −9%

Vas102.3 L −4%

BL23.9 T·m +14%

Xmax8 mm +14%

Sensitivity97.2 dB −2

Eighteen Sound15NCX910

£497.18

Fs55 Hz –

Qts0.33 –

Vas107 L –

BL21 T·m –

Xmax7 mm –

Sensitivity99.2 dB –

Eighteen Sound15NCX910N

No current price

Fs55 Hz –

Qts0.33 –

Vas107 L –

BL21 T·m –

Xmax7 mm –

Sensitivity99.2 dB –

Oberton15MB35

No current price

Fs48 Hz −13%

Qts0.34 –

Vas115.1 L +8%

BL20.1 T·m −4%

Xmax6.8 mm −4%

Sensitivity97.6 dB −1.6

RCFMB15X351

No current price

Fs46 Hz −16%

Qts0.31 −6%

Vas114 L +7%

BL22.8 T·m +9%

Xmax7 mm –

Sensitivity97.3 dB −1.9

Eighteen Sound15LW1410

No current price

Fs43 Hz −22%

Qts0.34 +3%

Vas99.8 L −7%

BL20.7 T·m –

Xmax8.5 mm +21%

Sensitivity95.6 dB −3.6

Oberton15HCX3572

No current price

Fs46 Hz −16%

Qts0.34 +3%

Vas140.7 L +31%

BL18.8 T·m −10%

Xmax7.3 mm +4%

Sensitivity98 dB −1.2

Eighteen Sound15W1301

No current price

Fs48 Hz −13%

Qts0.32 −3%

Vas123 L +15%

BL22.3 T·m +6%

Xmax6 mm −14%

Sensitivity97.7 dB −1.5

P.AudioP150/2227

No current price

Fs45 Hz −18%

Qts0.34 +3%

Vas117.9 L +10%

BL22.5 T·m +7%

Xmax5.5 mm −21%

Sensitivity96.9 dB −2.3

Dayton AudioPN395-8

No current price

Fs44 Hz −20%

Qts0.35 +6%

Vas96.8 L −10%

BL25.3 T·m +20%

Xmax6.5 mm −7%

Sensitivity95.7 dB −3.5

P.Audio15NX-76MB

No current price

Fs40 Hz −27%

Qts0.34 +3%

Vas115.6 L +8%

BL21.4 T·m –

Xmax4.8 mm −32%

Sensitivity95.3 dB −3.9

PeerlessNCP-1540R01-08

No current price

Fs54 Hz –

Qts0.32 −3%

Vas86.5 L −19%

BL23.9 T·m +14%

Xmax8.2 mm +17%

Sensitivity98.2 dB −1

FaneCOLOSSUS 15XB

No current price

Fs38 Hz −31%

Qts0.32 −3%

Vas168 L +57%

BL22.1 T·m +5%

Xmax7.5 mm +7%

Sensitivity96.4 dB −2.8

Oberton15NMB500

No current price

Fs45 Hz −19%

Qts0.29 −12%

Vas128.0 L +20%

BL21.3 T·m –

Xmax7.8 mm +11%

Sensitivity97.9 dB −1.3

Oberton15NXB1201

No current price

Fs38 Hz −30%

Qts0.32 –

Vas111.9 L +5%

BL23.6 T·m +12%

Xmax12 mm +71%

Sensitivity94.8 dB −4.4

Oberton15NMB35

No current price

Fs39 Hz −29%

Qts0.34 –

Vas177.5 L +66%

BL18.5 T·m −12%

Xmax6.8 mm −4%

Sensitivity96.8 dB −2.4
