Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespSica 15 PFS 4 8Ω
LF DriverMedia
Auto-advancing
Overview
LF Driver
Sica

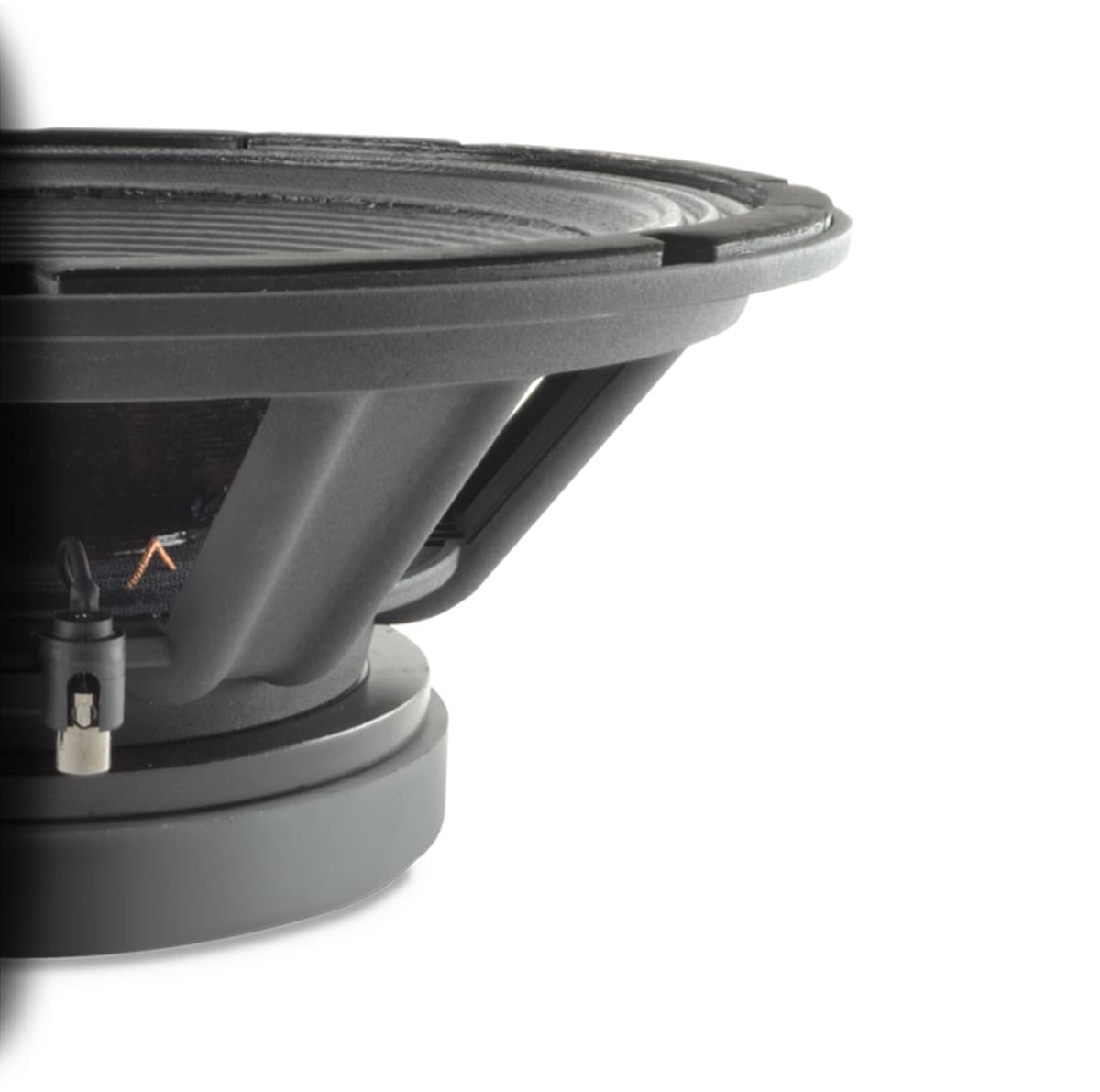

Sica 15 PFS 4
Sica 15 PFS 4 is a 15" 8 ohm LF driver rated at 1200W RMS. The validated T/S data includes Fs 39Hz, Qts 0.34, Vas 103.9L, Xmax 8mm, sensitivity 94.2dB, plus 684cm³ Vd and 105 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
1200W
Sensitivity
94.2dB
95.8dBmanufacturer; using T/S-derived value (1.6dB delta).
EBP
105
Vented alignment
Vd
684cm³
T/S Parameters
Valid
Fs39Hz
Qts0.34
Qes0.37
Qms4.9
Vas103.9L
Re5.3Ω
Le1.80mH
BL24.2Tm
Sd855cm²
Mms167g
Xmax8.0mm
SPL94dB
Power1200W
Impedance8Ω
Voice Coil100mm
Flux Density1.12T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight12.3kg
Diameter388.0mm
Overall Depth175.0mm
Cutout Diameter355.0mm
Bolt Circle Diameter371.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Sica
15 PFS 4
15"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
86%
Similarity
£173.91
SB Audience
ROSSO-15MW500
15"
Xmax8.4mm+5%
Qts0.33-3%
BL23.2Tm-4%
Vas121.3L+17%
Qes0.35-5%
85%
Similarity
£230.60
B&C
15NDL88
15"
Xmax8mm0%
Qts0.340%
BL20.1Tm-17%
Vas126L+21%
Qes0.36-3%
85%
Similarity
Peerless
NCP-1540R01-08
15"
Xmax8.2mm+2%
Qts0.32-6%
BL23.9Tm-1%
Vas86.5L-17%
Qes0.33-11%
84%
Similarity
Sica
15 K 4 PL
15"
Xmax8mm0%
Qts0.3-12%
BL23.9Tm-1%
Vas102.3L-2%
Qes0.31-16%
84%
Similarity

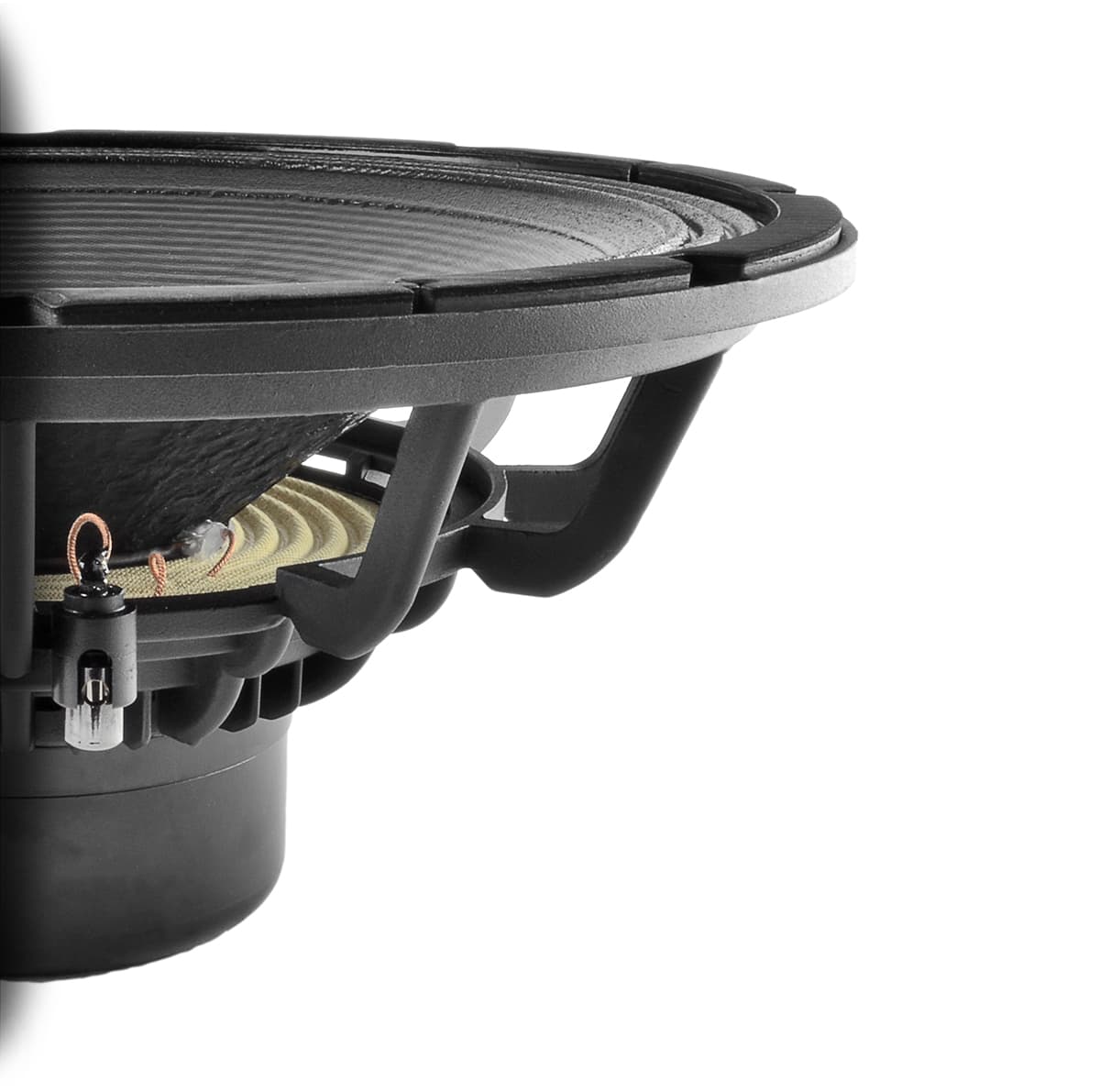

Sica
15 PNS 4
15"
Xmax9mm+13%
Qts0.35+3%
BL22.7Tm-6%
Vas116.3L+12%
Qes0.38+3%
83%
Similarity
Dayton Audio
PN395-8
15"
Xmax6.5mm-19%
Qts0.35+3%
BL25.3Tm+4%
Vas96.8L-7%
Qes0.36-3%
81%
Similarity
£240.88
Sica
15 PF 3
15"
Xmax8mm0%
Qts0.31-9%
BL21.9Tm-9%
Vas117.6L+13%
Qes0.33-11%
80%
Similarity
£497.18
Eighteen Sound
15NCX910
15"
Xmax7mm-12%
Qts0.33-3%
BL21Tm-13%
Vas107L+3%
Qes0.34-8%
80%
Similarity
Eighteen Sound
15NCX910BE
15"
Xmax7mm-12%
Qts0.33-3%
BL21Tm-13%
Vas107L+3%
Qes0.34-8%
80%
Similarity
Eighteen Sound
15NCX910N
15"
Xmax7mm-12%
Qts0.33-3%
BL21Tm-13%
Vas107L+3%
Qes0.34-8%
80%
Similarity
£320.82
Beyma
15MC700ND
15"
Xmax7mm-12%
Qts0.31-9%
BL22.6Tm-7%
Vas105L+1%
Qes0.34-8%
80%
Similarity
£222.00
Precision Devices
PD.154C001
15"
Xmax8.2mm+2%
Qts0.31-9%
BL25.5Tm+5%
Vas128L+23%
Qes0.34-9%
