LF DriverPD series
Precision Devices

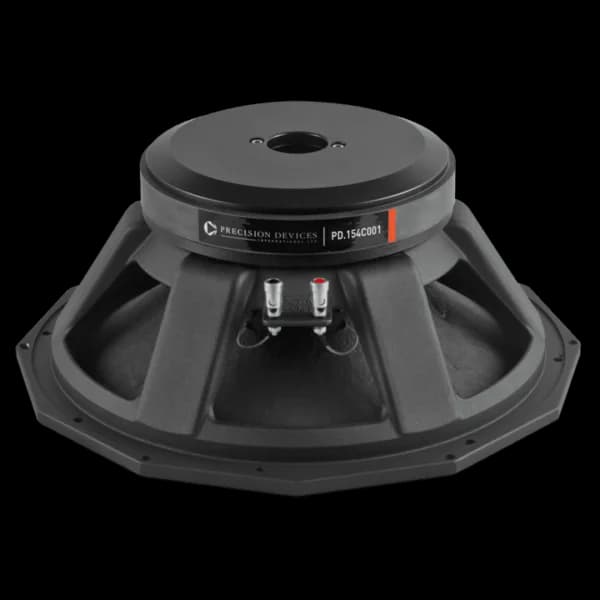

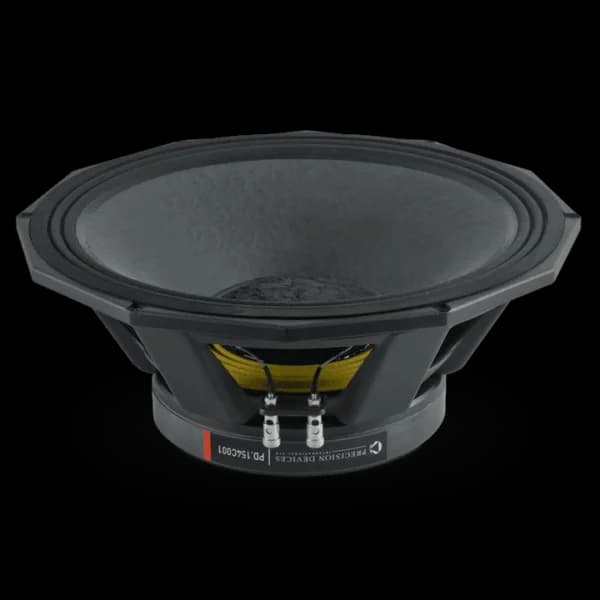

Precision Devices PD.154C001
Precision Devices PD.154C001 is a 15" 8 ohm LF driver rated at 900W RMS. The validated T/S data includes Fs 45Hz, Qts 0.31, Vas 128L, Xmax 8.2mm, sensitivity 97.4dB, plus 736cm³ Vd and 134 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
900W
Sensitivity
97.4dB
98.5dBmanufacturer; using T/S-derived value (1.1dB delta).
EBP
134
Vented alignment
Vd
736cm³
T/S Parameters
Valid
Fs45Hz
Qts0.31
Qes0.34
Qms4.3
Vas128.0L
Re6.1Ω
Le1.80mH
BL25.5Tm
Sd898cm²
Mms119g
Xmax8.2mm
SPL97dB
Power900W
Impedance8Ω
F Low45Hz
F High1000Hz
Voice Coil102mm
Flux Density1.39T
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight13.1kg
Diameter408.3mm
Overall Depth154.1mm
Cutout Diameter356.0mm
Bolt Circle Diameter395.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Precision Devices
PD.154C001
15"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
89%
Similarity
Sica
15 PF 3
15"
Xmax8mm-2%
Qts0.310%
BL21.9Tm-14%
Vas117.6L-8%
Qes0.33-1%
89%
Similarity
Precision Devices
PD.1550/2
15"
Xmax8.2mm0%
Qts0.29-7%
BL26.6Tm+4%
Vas126.4L-1%
Qes0.3-10%
87%
Similarity
£173.91
SB Audience
ROSSO-15MW500
15"
Xmax8.4mm+2%
Qts0.33+6%
BL23.2Tm-9%
Vas121.3L-5%
Qes0.35+4%
86%
Similarity
£194.97
BMS
15S330
15"
Xmax8mm-2%
Qts0.32+3%
BL23Tm-10%
Vas152L+19%
Qes0.34+1%
86%
Similarity
£199.99
B&C
15PZB100
15"
Xmax8mm-2%
Qts0.29-7%
BL25.8Tm+1%
Vas110L-14%
Qes0.3-10%
85%
Similarity
Peerless
NCP-1540R01-08
15"
Xmax8.2mm0%
Qts0.32+3%
BL23.9Tm-6%
Vas86.5L-32%
Qes0.33-1%
85%
Similarity
Sica
15 K 4 PL
15"
Xmax8mm-2%
Qts0.3-4%
BL23.9Tm-6%
Vas102.3L-20%
Qes0.31-7%
84%
Similarity
BMS
15S435
15"
Xmax8mm-2%
Qts0.28-10%
BL24.4Tm-4%
Vas129L+1%
Qes0.29-13%
83%
Similarity
£238.26
RCF
MB15X351
15"
Xmax7mm-15%
Qts0.310%
BL22.8Tm-11%
Vas114L-11%
Qes0.33-1%
82%
Similarity
Eighteen Sound
15NTLW2500
15"
Xmax8mm-2%
Qts0.3-4%
BL21.2Tm-17%
Vas143L+12%
Qes0.31-7%
81%
Similarity
BMS
15S430V
15"
Xmax8mm-2%
Qts0.28-10%
BL23.5Tm-8%
Vas135L+5%
Qes0.29-13%
81%
Similarity
Oberton
15NMB500
15"
Xmax7.8mm-5%
Qts0.29-6%
BL21.3Tm-16%
Vas128L0%
Qes0.3-11%
