Sica
Sica 15 PF 3
Sica 15 PF 3 is a 15" 8 ohm LF driver rated at 1200W RMS. The validated T/S data includes Fs 45Hz, Qts 0.31, Vas 117.6L, Xmax 8mm, sensitivity 97.1dB, plus 684cm³ Vd and 136 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
1200W
Sensitivity
97.1dB
99.1dBmanufacturer; using T/S-derived value (2.0dB delta).
EBP
136
Vented alignment
Vd
684cm³
T/S Parameters
Valid
Fs45Hz
Qts0.31
Qes0.33
Qms5.6
Vas117.6L
Re5.1Ω
Le1.02mH
BL21.9Tm
Sd855cm²
Mms111g
Xmax8.0mm
SPL97dB
Power1200W
Impedance8Ω
Voice Coil100mm
Flux Density1.46T
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight9.0kg
Diameter388.0mm
Overall Depth169.0mm
Cutout Diameter355.0mm
Bolt Circle Diameter371.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Sica
15 PF 3
15"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
90%
Similarity
£238.26
RCF
MB15X351
15"
Xmax7mm-12%
Qts0.310%
BL22.8Tm+4%
Vas114L-3%
Qes0.330%
88%
Similarity
Eighteen Sound
15NTLW2500
15"
Xmax8mm0%
Qts0.3-3%
BL21.2Tm-3%
Vas143L+22%
Qes0.31-6%
88%
Similarity

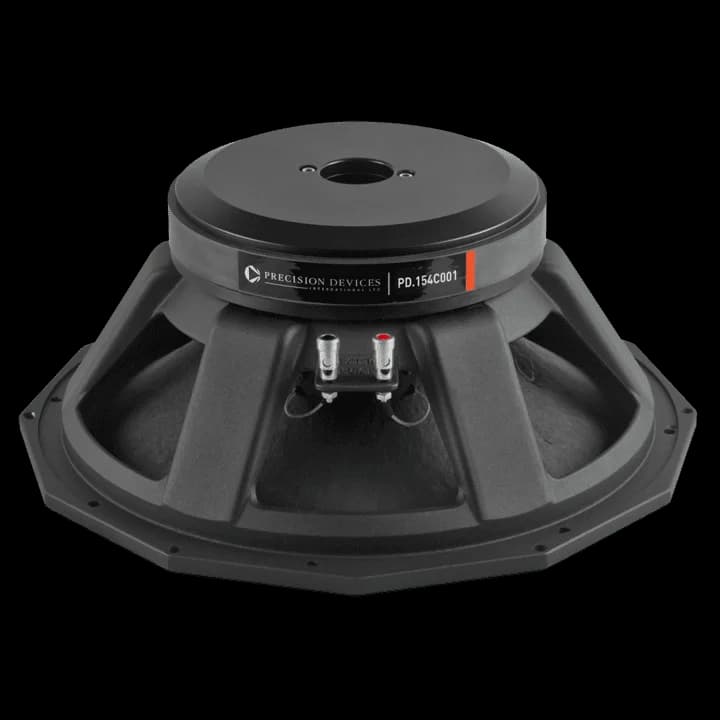

Precision Devices
PD.154C001
15"
Xmax8.2mm+2%
Qts0.310%
BL25.5Tm+16%
Vas128L+9%
Qes0.34+2%
87%
Similarity
Sica
15 K 4 PL
15"
Xmax8mm0%
Qts0.3-3%
BL23.9Tm+9%
Vas102.3L-13%
Qes0.31-6%
87%
Similarity
£173.91
SB Audience
ROSSO-15MW500
15"
Xmax8.4mm+5%
Qts0.33+6%
BL23.2Tm+6%
Vas121.3L+3%
Qes0.35+6%
87%
Similarity
Oberton
15NMB500
15"
Xmax7.8mm-3%
Qts0.29-6%
BL21.3Tm-3%
Vas128L+9%
Qes0.3-10%
86%
Similarity
£194.97
BMS
15S330
15"
Xmax8mm0%
Qts0.32+3%
BL23Tm+5%
Vas152L+29%
Qes0.34+3%
85%
Similarity
Peerless
NCP-1540R01-08
15"
Xmax8.2mm+2%
Qts0.32+3%
BL23.9Tm+9%
Vas86.5L-26%
Qes0.330%
84%
Similarity
Oberton
15NXL701
15"
Xmax9.3mm+16%
Qts0.3-3%
BL21.7Tm-1%
Vas127.1L+8%
Qes0.31-5%
84%
Similarity
£241.99

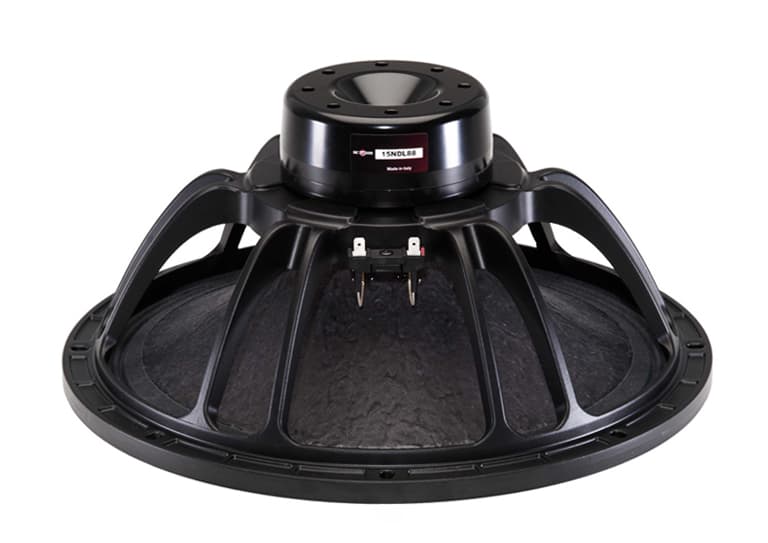

B&C
