Overview
LF Driver
Eighteen Sound

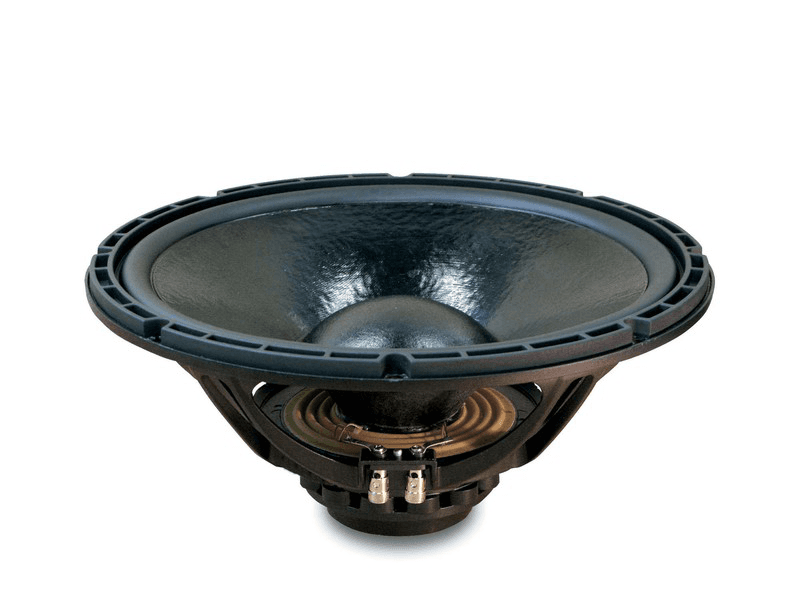

Eighteen Sound 15NW530
Eighteen Sound 15NW530 is a 15" 8 ohm LF driver rated at 500W RMS. The validated T/S data includes Fs 43Hz, Qts 0.33, Vas 154L, Xmax 7.5mm, sensitivity 97.5dB, plus 641cm³ Vd and 123 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £243.16.
Size
15"
Impedance
8Ω
RMS Power
500W
Sensitivity
97.5dB
96.0dBmanufacturer; using T/S-derived value (1.5dB delta).
EBP
123
Vented alignment
Vd
641cm³

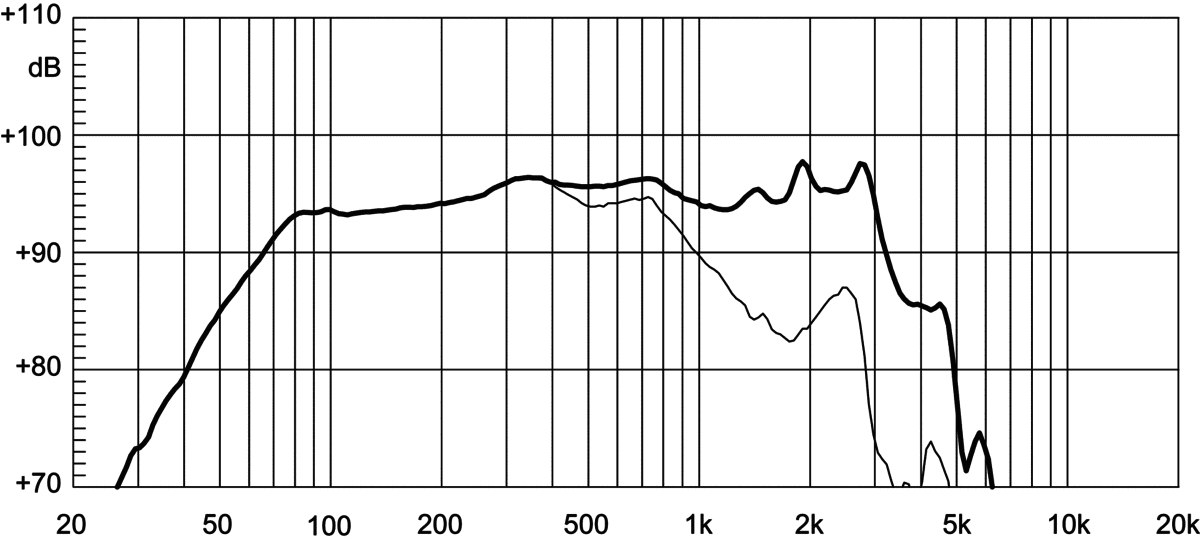

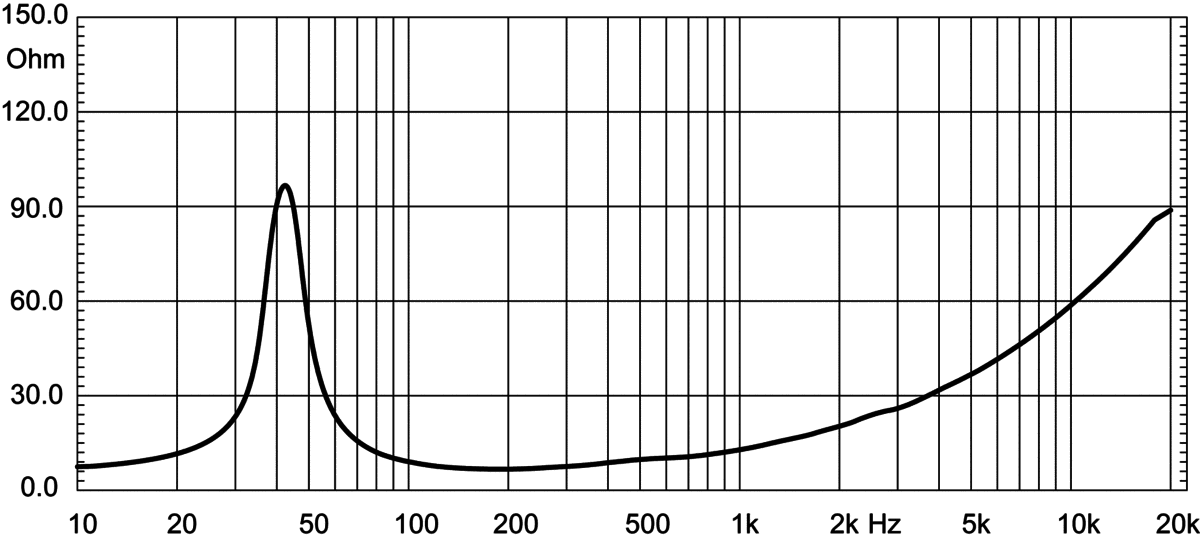

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence1,361 selected pixels of 1,361
T/S Parameters
Valid
Fs43Hz
Qts0.33
Qes0.35
Qms5.8
Vas154.0L
Re5.3Ω
Le1.40mH
BL22.0Tm
Sd855cm²
Mms135g
Xmax7.5mm
SPL98dB
Power500W
Power Nominal500W
Impedance8Ω
F Low47Hz
F High3500Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£243.16
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight4.4kg
Diameter387.0mm
Overall Depth169.0mm
Cutout Diameter353.0mm
Bolt Circle Diameter370.0mm
