LF Driver
Eighteen Sound
Eighteen Sound 15NLW9500
Eighteen Sound 15NLW9500 is a 15" 8 ohm LF driver rated at 1000W RMS. The validated T/S data includes Fs 35Hz, Qts 0.32, Vas 163L, Xmax 9mm, sensitivity 95.2dB, plus 765cm³ Vd and 103 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £385.21.
Size
15"
Impedance
8Ω
RMS Power
1000W
Sensitivity
95.2dB
EBP
103
Vented alignment
Vd
765cm³

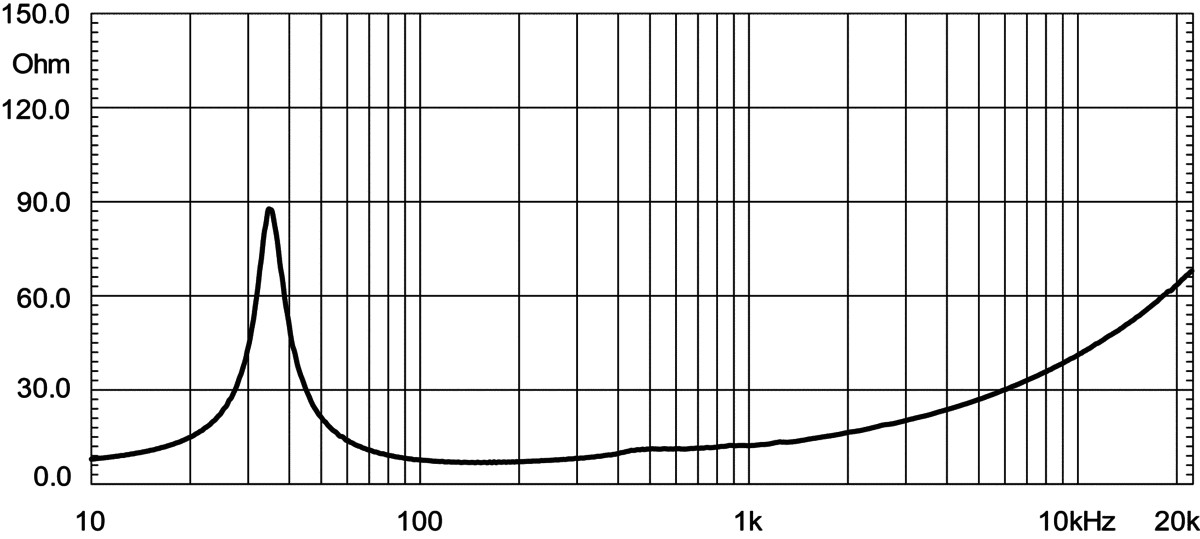

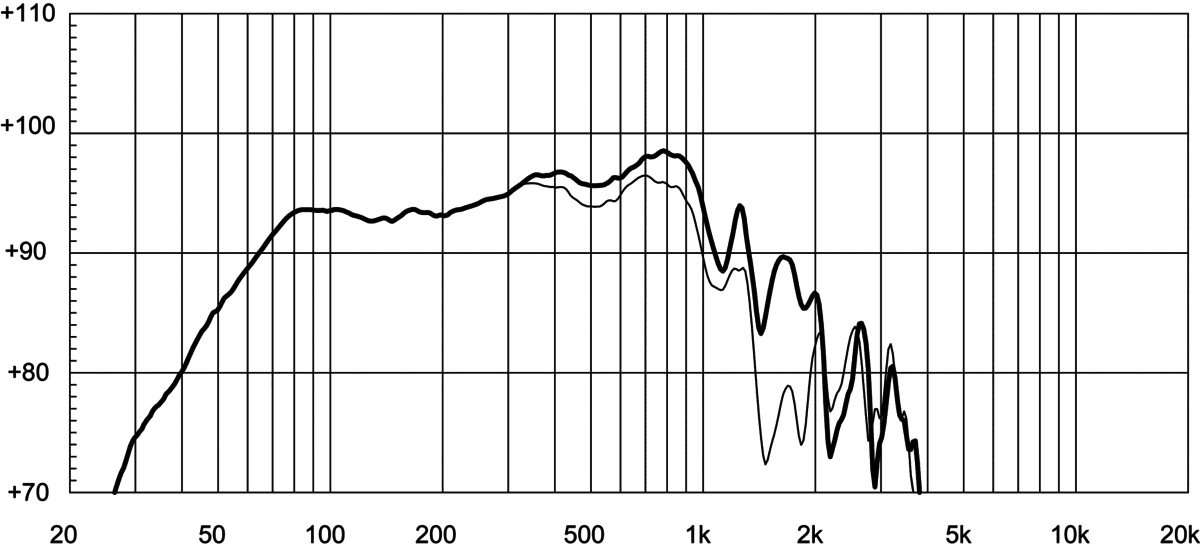

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence1,721 selected pixels of 1,996
T/S Parameters
Valid
Fs35Hz
Qts0.32
Qes0.34
Qms6.7
Vas163.0L
Re4.9Ω
Le0.80mH
BL21.6Tm
Sd850cm²
Mms146g
Xmax9.0mm
SPL95dB
Power1000W
Power Nominal1000W
Impedance8Ω
F Low42Hz
F High2000Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£385.21
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight7.0kg
Diameter387.0mm
Overall Depth177.0mm
Cutout Diameter353.0mm
Bolt Circle Diameter370.0mm
