Overview
LF Driver
Eighteen Sound
Eighteen Sound 15LW1410

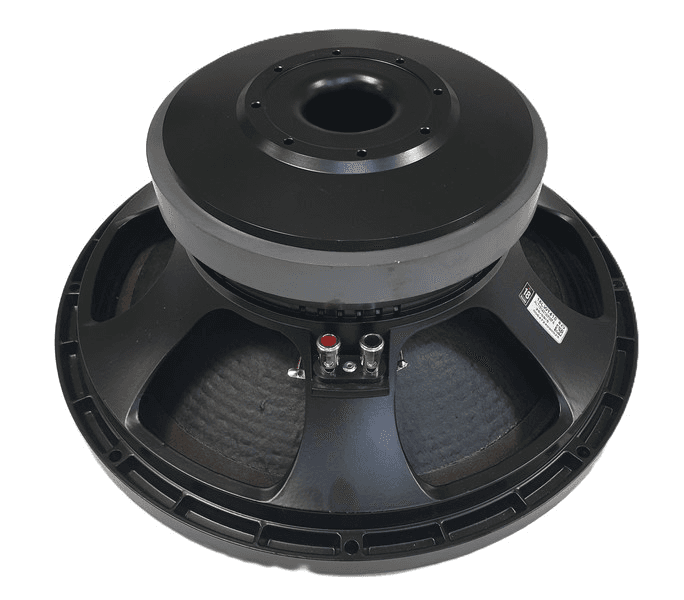

Eighteen Sound 15LW1410 is a 15" 8 ohm LF driver rated at 1000W RMS. The validated T/S data includes Fs 42Hz, Qts 0.27, Vas 131L, Xmax 8.5mm, sensitivity 97.4dB, plus 723cm³ Vd and 150 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £254.65.
Size
15"
Impedance
8Ω
RMS Power
1000W
Sensitivity
97.4dB
98.5dBmanufacturer; using T/S-derived value (1.1dB delta).
EBP
150
Vented alignment
Vd
723cm³

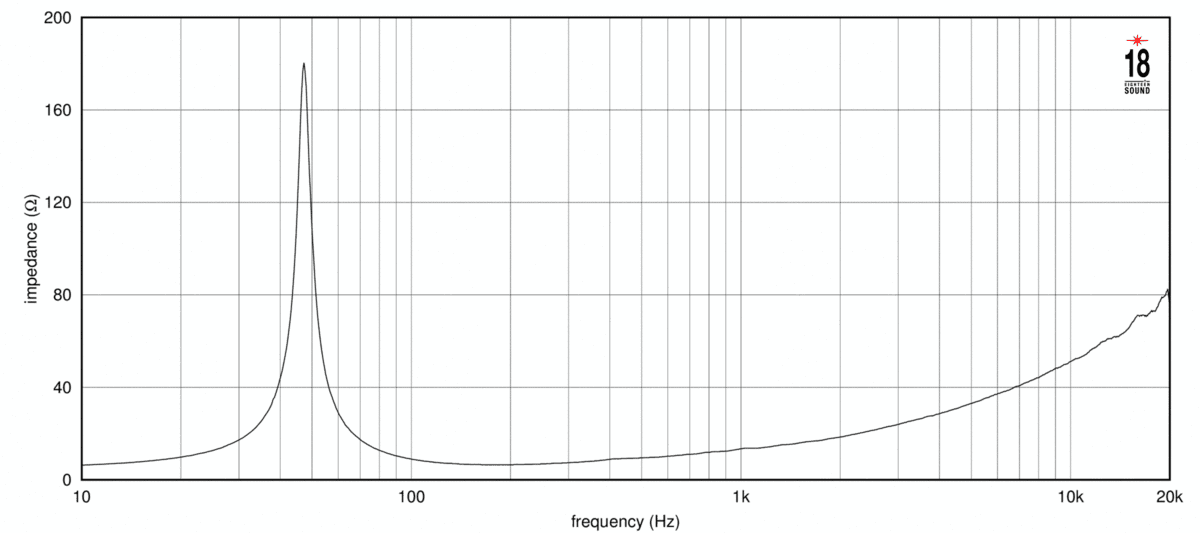

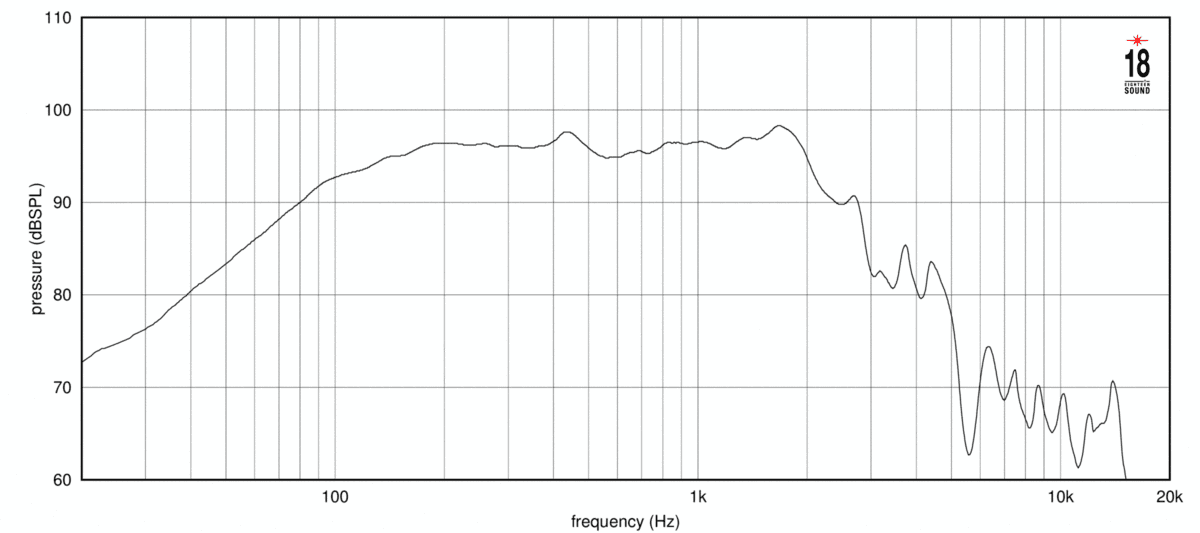

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence817 selected pixels of 1,044
T/S Parameters
Valid
Fs42Hz
Qts0.27
Qes0.28
Qms5.4
Vas131.0L
Re5.0Ω
Le1.00mH
BL24.1Tm
Sd850cm²
Mms138g
Xmax8.5mm
SPL97dB
Power1000W
Power Nominal1000W
Impedance8Ω
F Low40Hz
F High2400Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£254.65
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight12.9kg
Diameter387.0mm
Overall Depth163.0mm
Cutout Diameter353.0mm
Bolt Circle Diameter370.0mm
