- Net volume
- 85L
- Tuning
- 45Hz
B&C gives the volume and tuning; the port is sized for the driver when you open it.

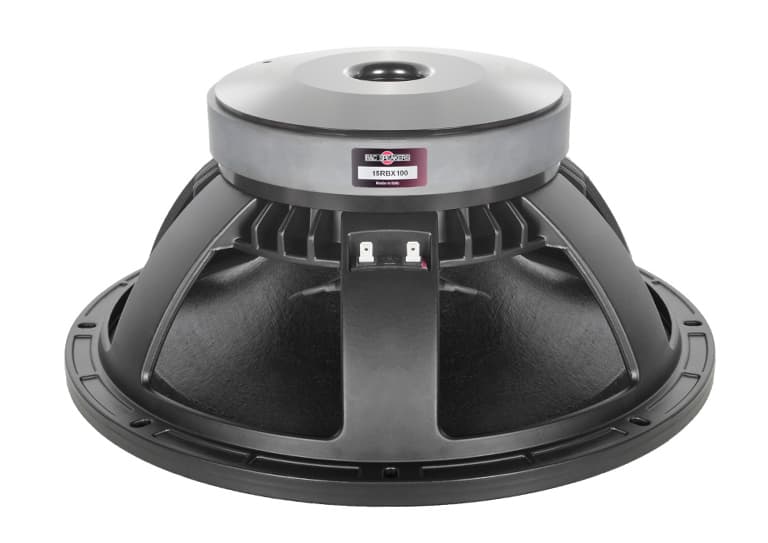

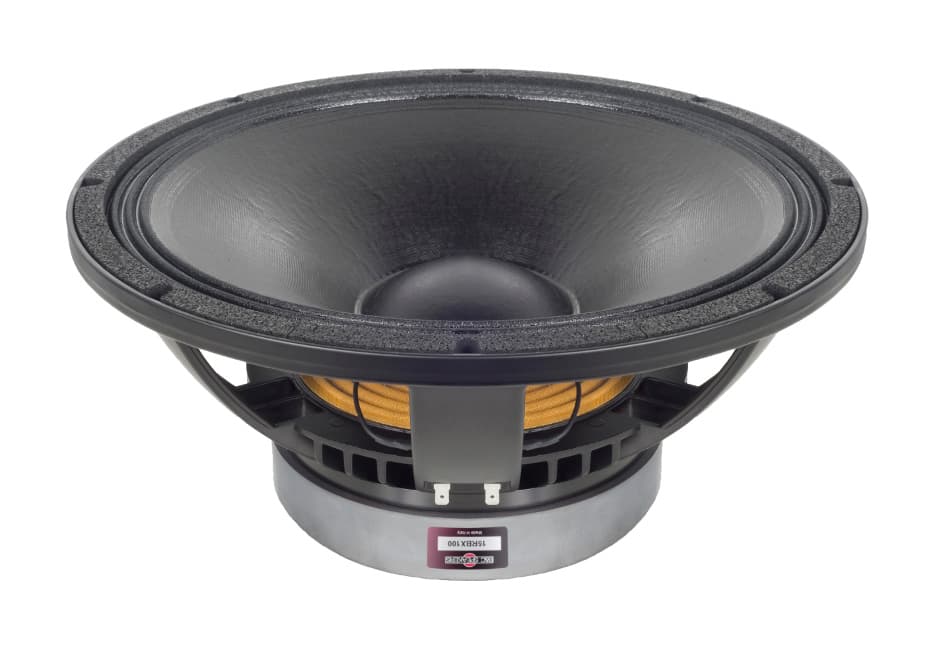

15-inch LF driver · 15RBX series · 100 mm voice coil · 1,000 W
B&C 15RBX100 8Ω
40–3000 Hz
No current price
- Fs
- 44Hz
- Xmax
- 9mm
- SPL
- 95dB
- Pe
- 1000W
- BL
- 24T·m
- Vd
- 817cm³
- Qts
- 0.38
- Vas
- 100L

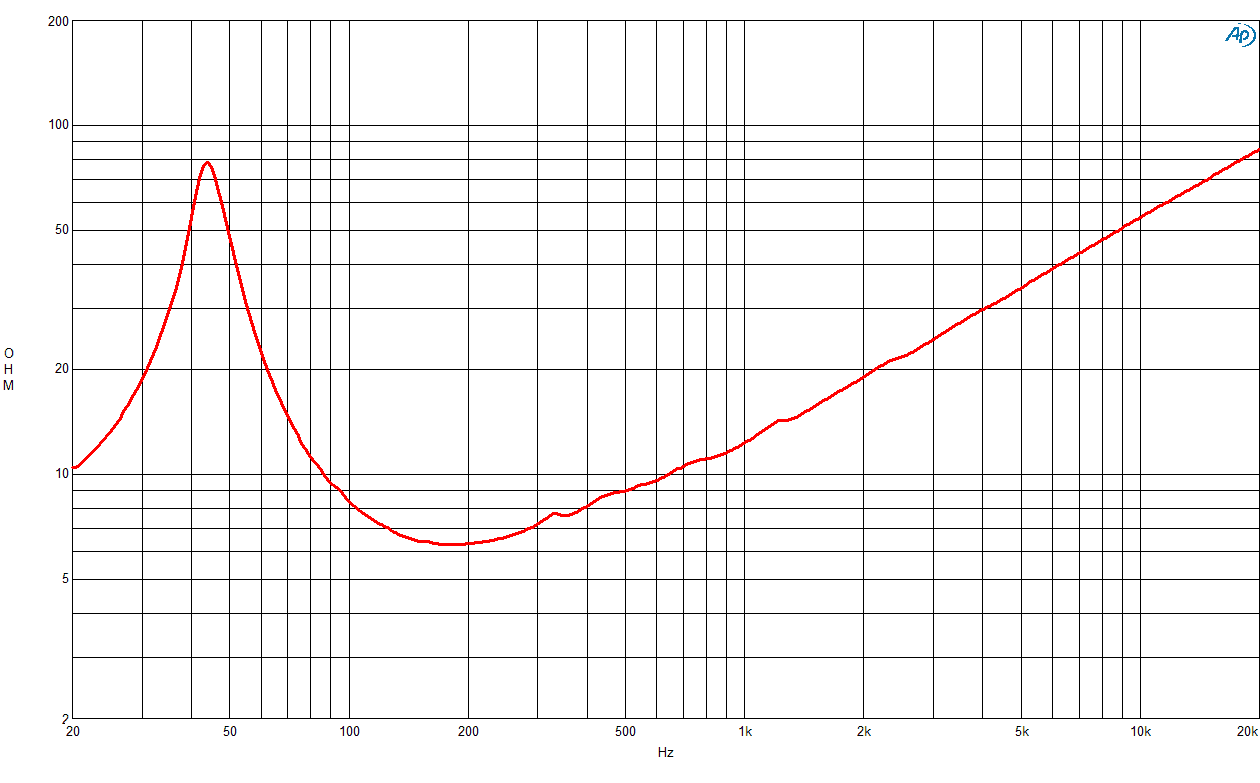

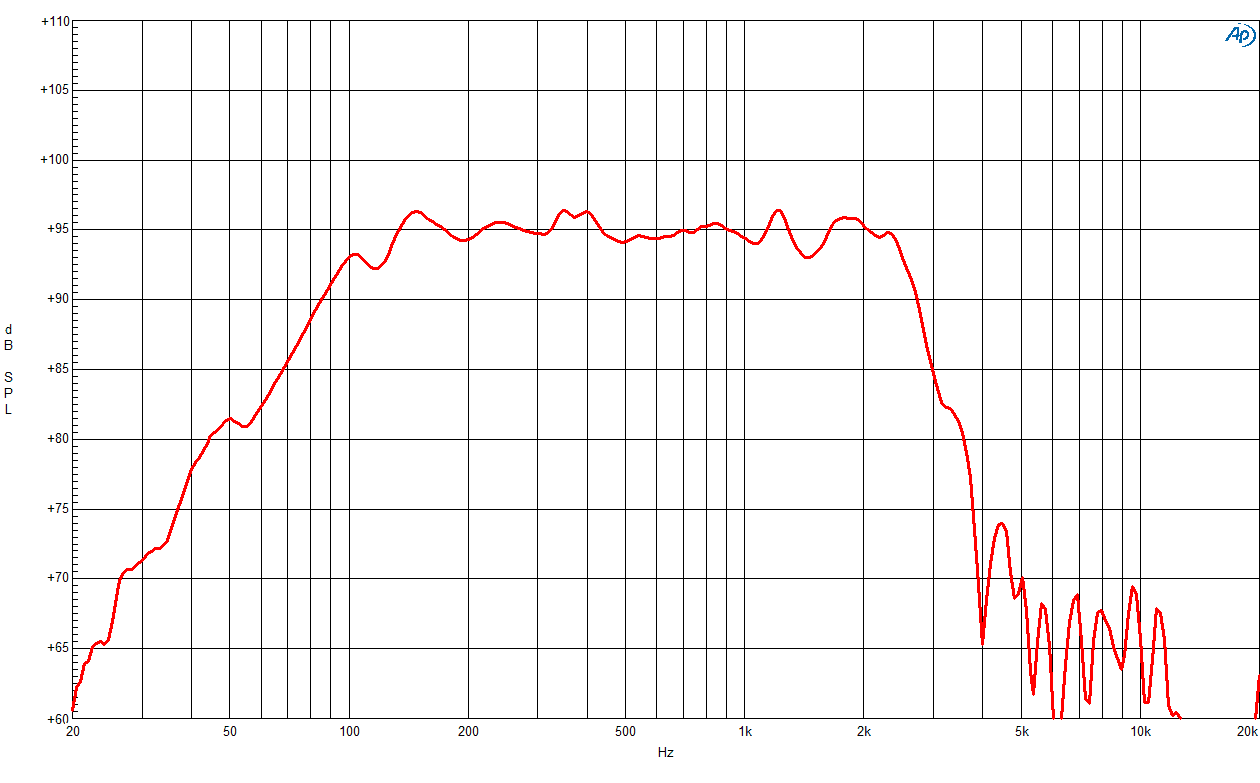

Published graphs
B&C 15RBX100 is a 15-inch 8 ohm LF driver rated at 1000 W RMS. The validated T/S data includes Fs 44 Hz, Qts 0.38, Vas 100 L, Xmax 9 mm, sensitivity 95.3 dB, plus 817 cm³ Vd and 110 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 44Hz
- Qts
- 0.38
- Qes
- 0.40
- Qms
- 5.7
- Vas
- 100L
- Re
- 5.3Ω
- Le
- 1.20mH
Motor and cone
- BL
- 24T·m
- Sd
- 908cm²
- Mms
- 154g
- Xmax
- 9mm
- Vd †
- 817cm³
- Voice coil
- 100mm
- Flux density
- 1.10T
Power and response
- Sensitivity †
- 95.3dB
- Manufacturer sensitivity
- 95dB
- Power
- 1000W
- Nominal power
- 1000W
- Impedance
- 8Ω
- Min. impedance
- 6.4Ω
- Range
- 40–3000Hz
- EBP †
- 110 · Leans vented
Size and mounting
- Diameter
- 393mm
- Cutout
- 354mm
- Bolt circle
- 374mm
- Depth
- 173mm
- Weight
- 10.6kg
† Calculated by bits from the published values
What this validation status means
Everything else B&C lists
LF
- BL
- 24T·m
- Fs
- 44Hz
- Le
- 1.20mH
- Re
- 5.3Ω
- Sd
- 908cm²
- Mms
- 154g
- Qes
- 0.40
- Qms
- 5.7
- Qts
- 0.38
- SPL
- 95.3dB
- Vas
- 100L
- Xmax
- 9mm
- Power
- 1000W
- Impedance
- 8Ω
- Flux density
- 1.10T
- Sensitivity
- 95dB
- Low limit
- 40Hz
- Nominal power
- 1000W
- Calculated sensitivity †
- 95.3dB
- High limit
- 3000Hz
- Manufacturer sensitivity
- 95dB
- Min. impedance
- 6.4Ω
- Voice coil
- 100mm
- Weight
- 10.6kg
- Diameter
- 393mm
- Depth
- 173mm
- Cutout
- 354mm
- Bolt circle
- 374mm
- Bl
- 24 Tm
- Fs
- 44 Hz
- Le
- 1.2 mH
- Re
- 5.3 Ω
- Sd
- 908 cm² (140.74 in²)
- Ebp
- 110 Hz
- Mms
- 154 g
- Qes
- 0.4
- Qms
- 5.65
- Qts
- 0.38
- Vas
- 100 dm³ (3.53 ft³)
- Η0
- 2 %
- Cone
- RCK15RBX1008
- Xmax
- 9 mm
- Xvar
- 10 mm
- Depth
- 173 mm (6.81 in)
- Spider
- Double Silicone
- Cone shape
- Curvilinear
- Net weight
- 10.6 kg (23.37 lb)
- Pole design
- T-Pole
- Sensitivity
- 95 dB
- Flux density
- 1.1 T
- Shipping box
- 425x425x224 mm (16.73x16.73x8.82 in)
- Winding depth
- 25 mm (1 in)
- Shipping units
- 1 pcs
- Surround shape
- Triple Roll
- Former material
- Glass Fibre
- Frequency range
- 40 Hz - 3000 Hz
- Magnet material
- Ferrite
- Shipping weight
- 11.9 kg (26.24 lb)
- Nominal diameter
- 380 mm (15 in)
- Overall diameter
- 393 mm (15.47 in)
- Winding material
- Copper
- Minimum impedance
- 6.4 Ω
- Nominal impedance
- 8 Ω
- Magnetic gap depth
- 11 mm (0.43 in)
- Recommended tuning
- 45 Hz
- Voice coil diameter
- 100 mm (4 in)
- Bolt circle diameter
- 374 mm (14.72 in)
- Recommended enclosure
- 85 dm³ (3 ft³)
- Woofer cone treatment
- TWP Waterproof Both Sides
- Baffle cutout diameter
- 354 mm (13.94 in)
- Nominal power handling
- 1000 W
- Continuous power handling
- 2000 W
- Flange and gasket thickness
- 16 mm (0.63 in)
- Air volume occupied by driver
- 5 dm³ (0.18 ft³)

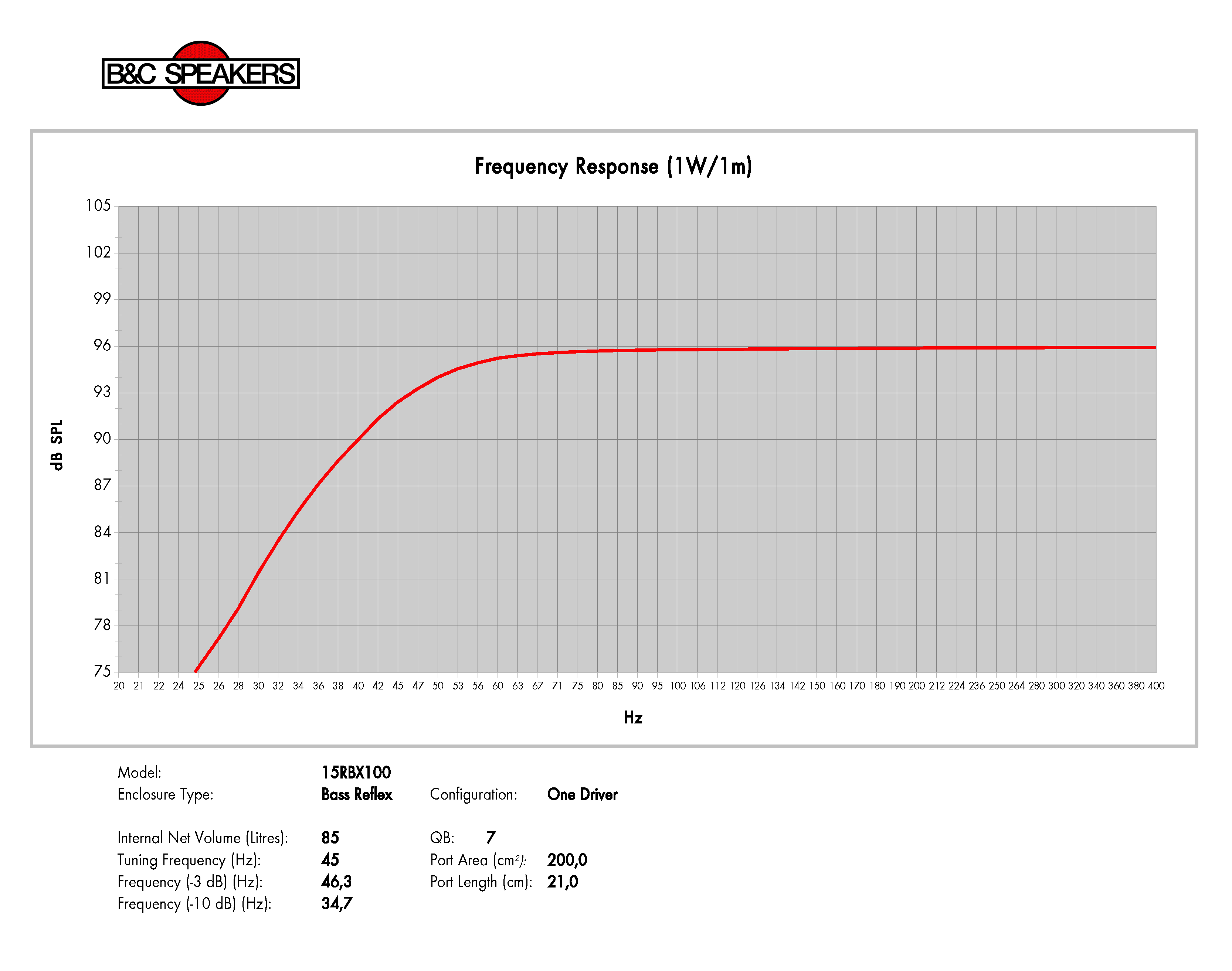

B&C’s suggested box
From B&C’s 15RBX100 page
Open this box in 00 Simulator
Modelling the box in 00 Simulator…
03
Compare
Same-size drivers, compared with the 15RBX100. Clear differences are green when better and red when worse.
This driver15RBX100
Best price
–
Fs
44 Hz
Qts
0.38
Vas
100 L
BL
24 T·m
Xmax
9 mm
Sensitivity
95.3 dB
Power
1000 W
PRV Audio15W1600
£135.94Fs54 Hz +22%, worse
Qts0.42 +11%, worse
Vas91.2 L −9%
BL24.1 T·m –
Xmax7 mm −22%, worse
Sensitivity97.1 dB +1.8
FaitalPRO15HP1010
£161.93Fs40 Hz −9%
Qts0.37 –
Vas107.5 L +8%
BL22 T·m −8%
Xmax9.8 mm +8%
Sensitivity94.6 dB −0.7
REDCATT15FIND
£168.88Fs42 Hz −5%
Qts0.36 −5%
Vas96.4 L −4%
BL24.6 T·m –
Xmax6.8 mm −25%, worse
Sensitivity94.9 dB –
RCFL15P540
£173.78Fs50 Hz +14%, worse
Qts0.39 –
Vas100 L –
BL21.4 T·m −11%, worse
Xmax7 mm −22%, worse
Sensitivity96.9 dB +1.6
SB AudienceROSSO-15MW500
£173.91Fs42 Hz −5%
Qts0.33 −13%, better
Vas121.3 L +21%, worse
BL23.2 T·m −3%
Xmax8.4 mm −7%
Sensitivity96.1 dB +0.8
B&C15FW88
£181.46Fs49 Hz +11%, worse
Qts0.43 +13%, worse
Vas103.7 L +4%
BL19.3 T·m −20%, worse
Xmax8 mm −11%, worse
Sensitivity96.4 dB +1.1
B&C15PS100
£184.17Fs39 Hz −11%, better
Qts0.43 +13%, worse
Vas103 L +3%
BL21.2 T·m −12%, worse
Xmax8 mm −11%, worse
Sensitivity93.2 dB −2.1, worse
FaitalPRO15FH530
£201.91Fs39 Hz −11%, better
Qts0.35 −8%
Vas140.6 L +41%, worse
BL20.7 T·m −14%, worse
Xmax9.3 mm –
Sensitivity95.7 dB –
Beyma15LX60V2
£223.94Fs42 Hz −5%
Qts0.44 +16%, worse
Vas105.5 L +6%
BL21.1 T·m −12%, worse
Xmax8 mm −11%, worse
Sensitivity94.4 dB −0.9
Beyma15LEX1000FE
£228.06Fs41 Hz −7%
Qts0.34 −11%, better
Vas116 L +16%, worse
BL23.2 T·m −3%
Xmax11 mm +22%, better
Sensitivity95.4 dB –
PRV Audio15W1800
£232.28Fs45 Hz –
Qts0.42 +11%, worse
Vas100.4 L –
BL23.2 T·m −3%
Xmax9.5 mm +6%
Sensitivity95.4 dB –
Sica15 PFS 4
£269.49Fs39 Hz −11%, better
Qts0.34 −11%, better
Vas103.9 L +4%
BL24.2 T·m –
Xmax8 mm −11%, worse
Sensitivity94.2 dB −1.1
Beyma15LEX1000ND
£294.86Fs41 Hz −7%
Qts0.37 –
Vas113 L +13%, worse
BL21.9 T·m −9%
Xmax10 mm +11%, better
Sensitivity94.8 dB −0.5
Sica15 K 4 PL
£308.36Fs47 Hz +6%
Qts0.30 −21%, better
Vas102.3 L –
BL23.9 T·m –
Xmax8 mm −11%, worse
Sensitivity97.2 dB +1.9
VisatonPAW 46
£312.54Fs29 Hz −34%, better
Qts0.36 −5%
Vas325 L +225%, worse
BL23.6 T·m –
Xmax10 mm +11%, better
Sensitivity95.2 dB –
Eighteen Sound15NTLW3500
£319.87Fs45 Hz –
Qts0.39 –
Vas131 L +31%, worse
BL19.5 T·m −19%, worse
Xmax8.3 mm −8%
Sensitivity96.8 dB +1.5
FaitalPRO15XL1200
£337.08Fs40 Hz −9%
Qts0.40 +5%
Vas86.9 L −13%, better
BL23.6 T·m –
Xmax12.4 mm +38%, better
Sensitivity93.4 dB −1.9
Eighteen Sound15TLW3000
£357.73Fs42 Hz −5%
Qts0.44 +16%, worse
Vas140 L +40%, worse
BL23.4 T·m –
Xmax9 mm –
Sensitivity95.6 dB –
Dayton AudioSS15-22
£371.67Fs27 Hz −39%, better
Qts0.38 –
Vas98 L –
BL24.9 T·m +4%
Xmax22 mm +144%, better
Sensitivity88.4 dB −6.9, worse
Beyma15LEX1600ND
£385.14Fs41 Hz −7%
Qts0.36 −5%
Vas91 L −9%
BL25.7 T·m +7%
Xmax14.5 mm +61%, better
Sensitivity94.2 dB −1.1
Sica15 PNS 4
No current priceFs37 Hz −15%, better
Qts0.35 −8%
Vas116.3 L +16%, worse
BL22.7 T·m −5%
Xmax9 mm –
Sensitivity94 dB −1.3
P.Audio15FT-100SW
No current priceFs42 Hz −5%
Qts0.40 +5%
Vas90 L −10%, better
BL23.5 T·m –
Xmax7.5 mm −17%, worse
Sensitivity94 dB −1.3
CelestionTSQ1535
No current priceFs50 Hz +14%, worse
Qts0.40 +4%
Vas94.0 L −6%
BL20.6 T·m −14%, worse
Xmax8 mm −11%, worse
Sensitivity96.4 dB +1.1
P.Audio15FT-115XB
No current priceFs35 Hz −20%, better
Qts0.33 −13%, better
Vas103.8 L +4%
BL26.8 T·m +12%, better
Xmax9.5 mm +6%
Sensitivity93.2 dB −2.1, worse
P.Audio15NT-100SW
No current priceFs38 Hz −14%, better
Qts0.43 +13%, worse
Vas115.7 L +16%, worse
BL21.2 T·m −12%, worse
Xmax9 mm –
Sensitivity93.4 dB −1.9
PeerlessNCP-1540R01-08
No current priceFs54 Hz +23%, worse
Qts0.32 −16%, better
Vas86.5 L −14%, better
BL23.9 T·m –
Xmax8.2 mm −9%
Sensitivity98.2 dB +2.9, better
CelestionFTR15-4080HDX
No current priceFs40 Hz −9%
Qts0.32 −16%, better
Vas111.2 L +11%, worse
BL23.1 T·m −4%
Xmax10.1 mm +12%, better
Sensitivity95 dB –
Dayton AudioPN395-8
No current priceFs44 Hz –
Qts0.35 −8%
Vas96.8 L −3%
BL25.3 T·m +5%
Xmax6.5 mm −28%, worse
Sensitivity95.7 dB –
P.AudioP150/2228
No current priceFs51 Hz +16%, worse
Qts0.35 −8%
Vas88.3 L −12%, better
BL23.9 T·m –
Xmax4.0 mm −56%, worse
Sensitivity97 dB +1.7
VisatonPAW 46 - 8 OHM
No current priceFs29 Hz −34%, better
Qts0.36 −5%
Vas325 L +225%, worse
BL23.6 T·m –
Xmax10 mm +11%, better
Sensitivity95.2 dB –
