Overview
LF Driver
Sica

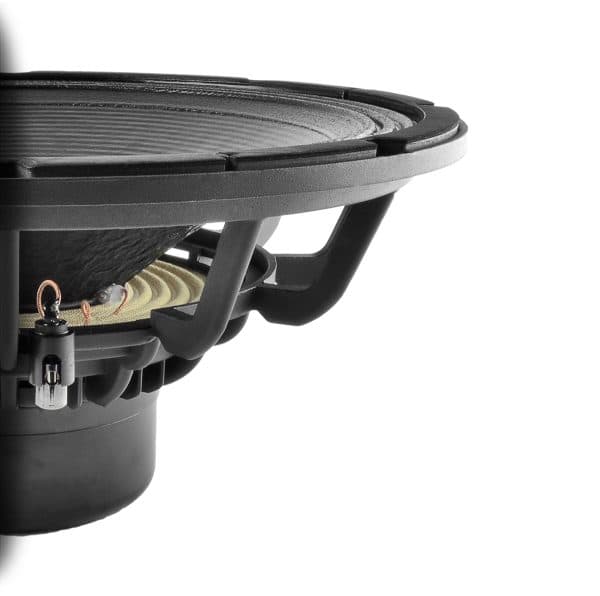

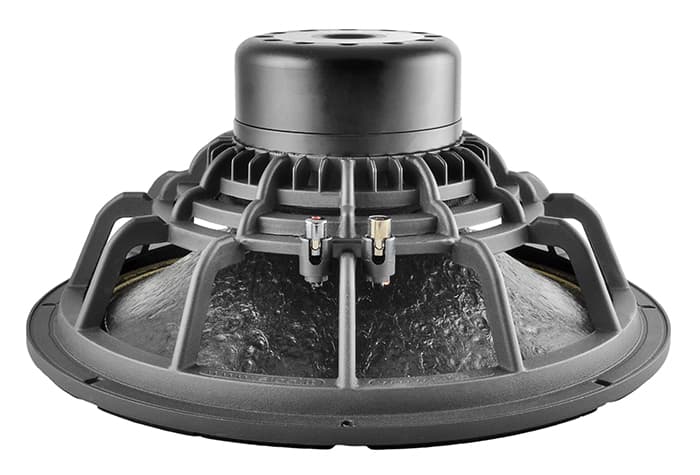

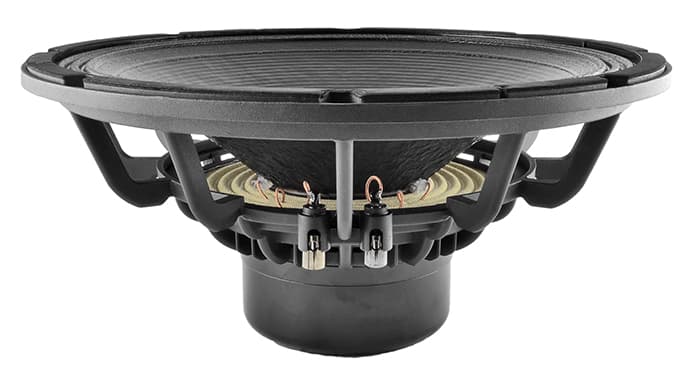

Sica 15 PNS 4
Sica 15 PNS 4 is a 15" 8 ohm LF driver rated at 1200W RMS. The validated T/S data includes Fs 37Hz, Qts 0.35, Vas 116.3L, Xmax 9mm, sensitivity 94dB, plus 770cm³ Vd and 98 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
1200W
Sensitivity
94.0dB
96.0dBmanufacturer; using T/S-derived value (2.0dB delta).
EBP
98
Either alignment
Vd
770cm³
T/S Parameters
Valid
Fs37Hz
Qts0.35
Qes0.38
Qms5.2
Vas116.3L
Re5.1Ω
Le1.42mH
BL22.7Tm
Sd855cm²
Mms162g
Xmax9.0mm
SPL94dB
Power1200W
Impedance8Ω
Voice Coil100mm
Flux Density1.20T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight7.0kg
Diameter388.0mm
Overall Depth176.5mm
Cutout Diameter355.0mm
Bolt Circle Diameter371.0mm
