15-inch LF driver · 15NCX series · 77 mm voice coil · 450 W

Oberton 15NCX 8Ω

Name: Oberton 15NCX 8 Ohm
Brand: Oberton
SKU: 15NCX

8 Ω · 50–16000 Hz

No current price

View offers

Open in 00 Simulator

Fs: 44Hz
Xmax: 7.8mm
SPL: 97dB
Pe: 450W
BL: 18.6T·m
Vd: 642cm³
Qts: 0.36
Vas: 138L

See all 26 specs

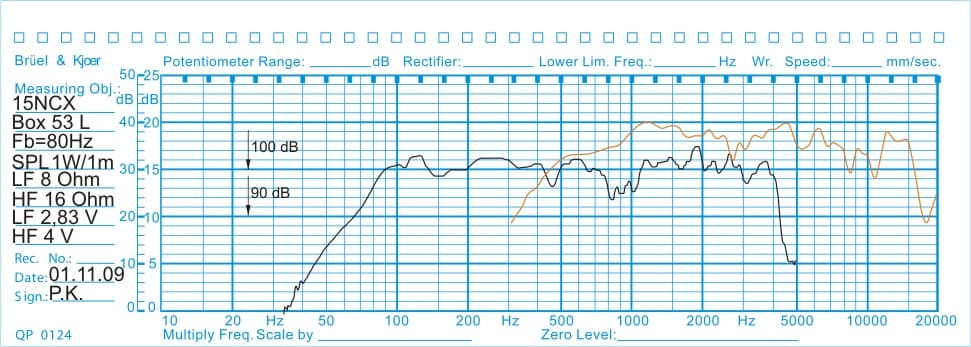

Published graphs

Specifications

Published by Oberton

Manufacturer page

Datasheet PDF

Oberton 15NCX is a 15-inch 8 ohm LF driver rated at 450 W RMS. The validated T/S data includes Fs 44 Hz, Qts 0.36, Vas 138.4 L, Xmax 7.8 mm, sensitivity 96.9 dB, plus 642 cm³ Vd and 117 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

The published T/S values agree with each other

Thiele/Small

Fs: 44Hz
Qts: 0.36
Qes: 0.38
Qms: 10.0
Vas: 138.4L
Re: 5.1Ω
Le: 0.78mH

Motor and cone

BL: 18.6T·m
Sd: 829cm²
Mms: 92g
Xmax: 7.8mm
Vd †: 642cm³
Voice coil: 77mm
Flux density: 1.10T

Power and response

Sensitivity †: 96.9dB
Power: 450W
Impedance: 8Ω
Range: 50–16000Hz
EBP †: 117 · Leans vented

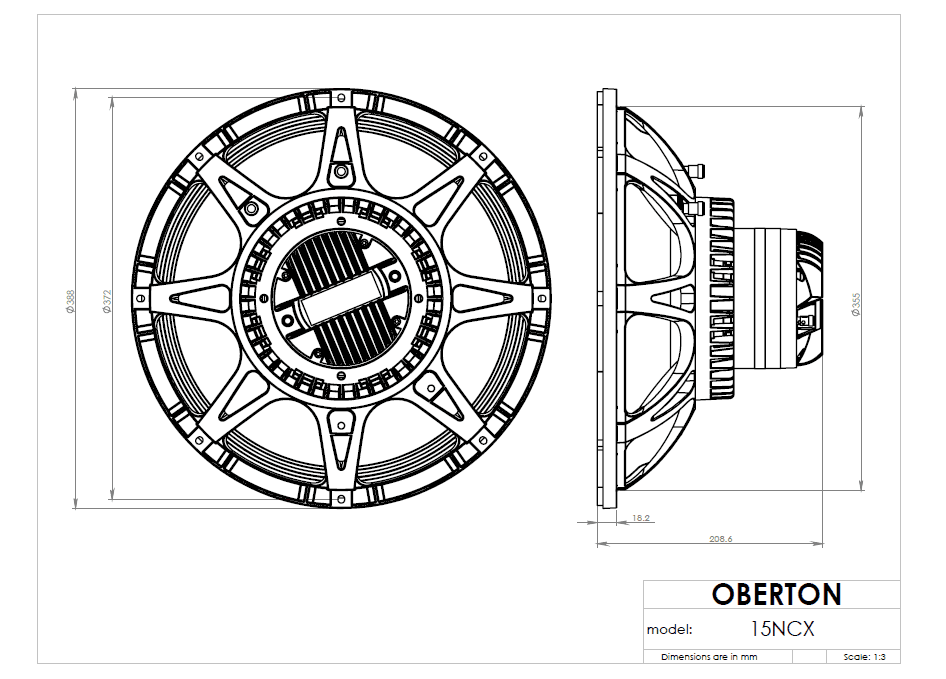

Size and mounting

Diameter: 388mm
Cutout: 355mm
Bolt circle: 372mm
Depth: 208.6mm
Weight: 5.7kg

Other published values

Cms: 0.14mm/N
Power Program: 900

† Calculated by bits from the published values

What this validation status means

Everything else Oberton lists

LF · Primary · 15″

BL: 18.6T·m
Fs: 44Hz
Le: 0.78mH
Re: 5.1Ω
Sd: 829cm²
Cms: 0.14mm/N
Mms: 92g
Qes: 0.38
Qms: 10.0
Qts: 0.36
SPL: 96.9dB
Vas: 138.4L
Xmax: 7.8mm
Power: 450W
Impedance: 8Ω
Flux density: 1.10T
Low limit: 50Hz
Power Program: 900
Calculated sensitivity †: 96.9dB
High limit: 16000Hz
Voice coil: 77mm
Weight: 5.7kg
Diameter: 388mm
Depth: 208.6mm
Cutout: 355mm
Bolt circle: 372mm

Compare

Same-size drivers, compared with the 15NCX. Clear differences are green when better and red when worse.

This driver15NCX

Best price

–

44 Hz

Qts

0.36

Vas

138.4 L

18.6 T·m

Xmax

7.8 mm

Sensitivity

96.9 dB

Power

450 W

SB AudienceBIANCO-15MW500

£110.00

Fs39 Hz −11%

Qts0.40 +11%

Vas171 L +24%

BL18.8 T·m –

Xmax7.6 mm –

Sensitivity96 dB −0.9

B&C15CL76

£127.74

Fs42 Hz −4%

Qts0.33 −8%

Vas135 L –

BL21 T·m +13%

Xmax7 mm −10%

Sensitivity96.7 dB –

SB AudienceROSSO-15W400

£134.56

Fs44 Hz –

Qts0.33 −8%

Vas140.1 L –

BL21.5 T·m +16%

Xmax8.3 mm +7%

Sensitivity97.5 dB +0.6

CIAREPWA15.75

£146.53

Fs44 Hz –

Qts0.39 +8%

Vas135 L –

BL19.3 T·m +4%

Xmax7 mm −10%

Sensitivity96.5 dB –

FaneSOVEREIGN PRO 15-600LF

£152.00

Fs40 Hz −9%

Qts0.37 –

Vas188 L +36%

BL19.7 T·m +6%

Xmax6.9 mm −11%

Sensitivity97 dB –

REDCATT152FIND-2

£159.51

Fs44 Hz –

Qts0.37 –

Vas128.5 L −7%

BL18.3 T·m –

Xmax4.5 mm −43%

Sensitivity96.6 dB –

Eighteen Sound15W750

£185.88

Fs39 Hz −11%

Qts0.37 –

Vas218 L +57%

BL17.6 T·m −5%

Xmax8 mm +3%

Sensitivity97.2 dB –

FaitalPRO15FH530

£200.12

Fs39 Hz −11%

Qts0.35 –

Vas140.6 L –

BL20.7 T·m +12%

Xmax9.3 mm +19%

Sensitivity95.7 dB −1.2

Beyma15MCB700

£207.83

Fs44 Hz –

Qts0.34 −6%

Vas148 L +7%

BL20 T·m +8%

Xmax7 mm −10%

Sensitivity97.5 dB +0.6

B&C15NDL88

£225.24

Fs45 Hz –

Qts0.34 −6%

Vas126 L −9%

BL20.1 T·m +8%

Xmax8 mm +3%

Sensitivity97.1 dB –

Eighteen Sound15NW530

£243.16

Fs43 Hz –

Qts0.33 −8%

Vas154 L +11%

BL22 T·m +19%

Xmax7.5 mm −3%

Sensitivity97.5 dB +0.6

Eighteen Sound15NTLW3500

£319.85

Fs45 Hz –

Qts0.39 +8%

Vas131 L −5%

BL19.5 T·m +5%

Xmax8.3 mm +7%

Sensitivity96.8 dB –

BMS15CN682

£384.52

Fs41 Hz −7%

Qts0.36 –

Vas137 L –

BL20.6 T·m +11%

Xmax5.5 mm −29%

Sensitivity95.9 dB −1

Eighteen Sound15NCX750

£454.74

Fs49 Hz +12%

Qts0.37 –

Vas141 L –

BL18.4 T·m –

Xmax5.5 mm −29%

Sensitivity98.2 dB +1.3

Eighteen Sound15NCX750H

£470.84

Fs49 Hz +12%

Qts0.37 –

Vas141 L –

BL18.5 T·m –

Xmax5.5 mm −29%

Sensitivity98.2 dB +1.3

Oberton15HCX3572

No current price

Fs46 Hz +6%

Qts0.34 −6%

Vas140.7 L –

BL18.8 T·m –

Xmax7.3 mm −6%

Sensitivity98 dB +1.1

LavoceNBASS15-30

No current price

Fs42 Hz −4%

Qts0.36 –

Vas143.1 L +3%

BL19.2 T·m +4%

Xmax6.6 mm −15%

Sensitivity96.5 dB –

Oberton15MB500

No current price

Fs42 Hz −5%

Qts0.34 −6%

Vas161.5 L +17%

BL18.5 T·m –

Xmax7.8 mm –

Sensitivity97.2 dB –

CelestionFTR15-3070E

No current price

Fs46 Hz +5%

Qts0.38 +5%

Vas145.8 L +5%

BL17.9 T·m −4%

Xmax7.8 mm –

Sensitivity97.2 dB –

Oberton15CX

No current price

Fs38 Hz −13%

Qts0.35 −3%

Vas163.8 L +18%

BL18.4 T·m –

Xmax7 mm −10%

Sensitivity95.9 dB −1

RCFM15P550

No current price

Fs45 Hz –

Qts0.37 –

Vas140 L –

BL19.8 T·m +7%

Xmax7 mm −10%

Sensitivity97 dB –

RCFMB15N301

No current price

Fs48 Hz +10%

Qts0.37 –

Vas134 L −3%

BL19.2 T·m +4%

Xmax6 mm −23%

Sensitivity97.8 dB +0.9

Sica15 N 3 PL

No current price

Fs47 Hz +7%

Qts0.37 –

Vas140.4 L –

BL18.4 T·m –

Xmax10 mm +29%

Sensitivity98 dB +1.1

BMS15CN680

No current price

Fs41 Hz −7%

Qts0.36 –

Vas137 L –

BL20.6 T·m +11%

Xmax5.5 mm −29%

Sensitivity95.9 dB −1

EminenceCANNABASS CB3015N-8

No current price

Fs41 Hz −7%

Qts0.39 +8%

Vas162.9 L +18%

BL17.8 T·m −4%

Xmax7.2 mm −7%

Sensitivity96.1 dB −0.8

Oberton15NMB35

No current price

Fs39 Hz −11%

Qts0.34 −7%

Vas177.5 L +28%

BL18.5 T·m –

Xmax6.8 mm −13%

Sensitivity96.8 dB –

Eighteen Sound15ND840

No current price

Fs43 Hz –

Qts0.37 –

Vas163 L +18%

BL17.9 T·m −4%

Xmax9.5 mm +23%

Sensitivity97.2 dB –

Precision DevicesPD.154NR1

No current price

Fs46 Hz +5%

Qts0.40 +11%

Vas158 L +14%

BL18.5 T·m –

Xmax8.5 mm +10%

Sensitivity97.6 dB +0.7

Oberton15MB35

No current price

Fs48 Hz +9%

Qts0.34 −7%

Vas115.1 L −17%

BL20.1 T·m +8%

Xmax6.8 mm −13%

Sensitivity97.6 dB +0.7

Oberton15H4CX72

No current price

Fs56 Hz +29%

Qts0.37 –

Vas113.1 L −18%

BL18.2 T·m –

Xmax4.5 mm −42%

Sensitivity99.3 dB +2.4
