Overview
LF Driver
Eighteen Sound
Eighteen Sound 15ND840
Eighteen Sound 15ND840 is a 15" 8 ohm LF driver rated at 600W RMS. The validated T/S data includes Fs 43Hz, Qts 0.37, Vas 163L, Xmax 9.5mm, sensitivity 97.2dB, plus 837cm³ Vd and 110 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
600W
Sensitivity
97.2dB
99.0dBmanufacturer; using T/S-derived value (1.8dB delta).
EBP
110
Vented alignment
Vd
837cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response189 ptsp2medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response

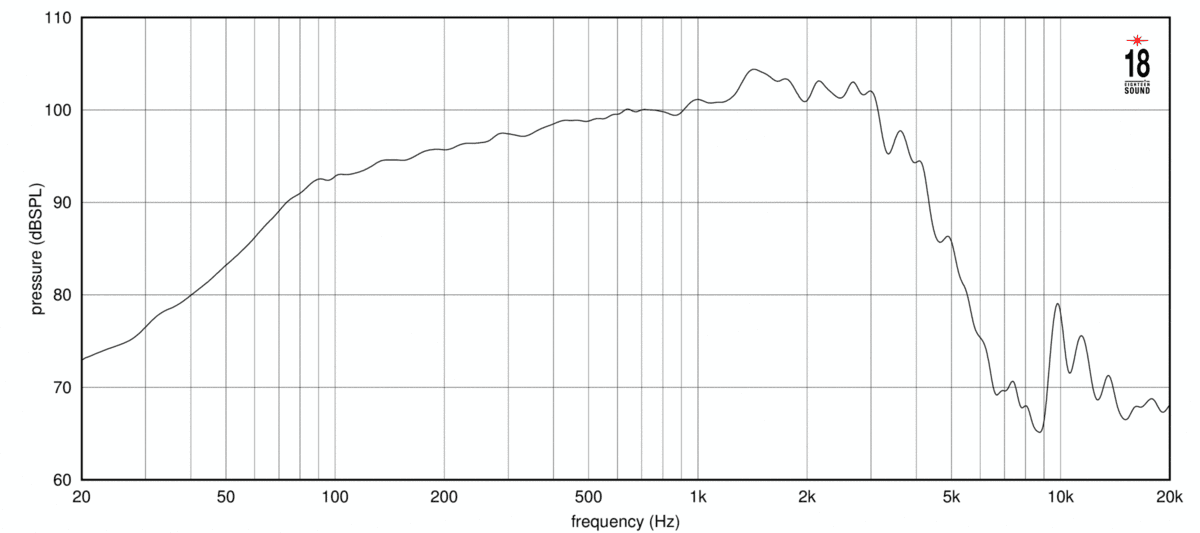

Frequency response
189 plotted pointsMedium confidence2,502 selected pixels of 2,685 - Trace datasheet-response-trace-poc/v1
impedance

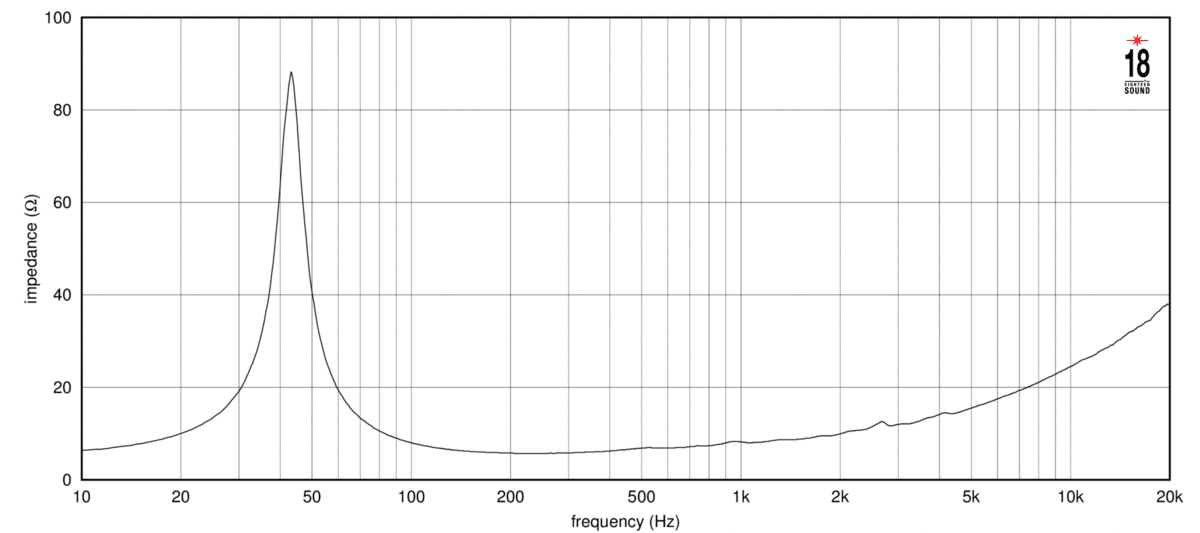

Impedance response
240 plotted pointsMedium confidence638 selected pixels of 864
T/S Parameters
Valid
Fs43Hz
Qts0.37
Qes0.39
Qms6.6
Vas163.0L
Re5.0Ω
Le0.43mH
BL17.9Tm
Sd881cm²
Mms94g
Xmax9.5mm
SPL97dB
Power600W
Power Nominal600W
Impedance8Ω
F Low38Hz
F High4000Hz
Pricing & availability
Price definitionsVendor offers
1 vendorleanaudio
Updated 11 Sept 2026· 8Ω
Source: inc VAT · 20%
£195.95
inc VAT
Back order
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight4.7kg
Diameter393.0mm
Overall Depth184.0mm
Cutout Diameter354.0mm
Bolt Circle Diameter371.0mm
